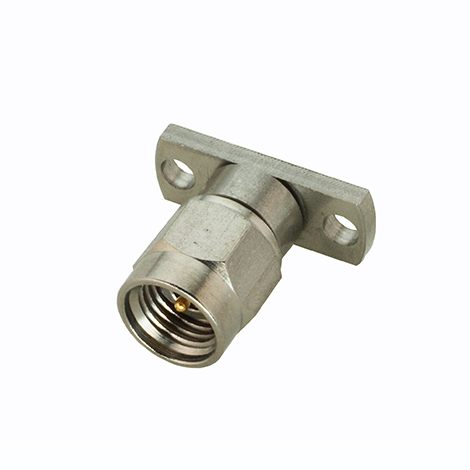

SMA/2.9mm | Male/Female | Inner
PRODUCT P/N: 8315
Spectrum Control's Inmet SMA male/2.9mm female inner DC block for general purpose applications have a frequency range of 25 kHz - 20 GHz, 100V max. rating and 50 Ohm impedance. Model 8315 DC blocks passivated stainless steel connectors that mate with MIL-STD-348 connectors.
Product Specifications
Electrical
| Frequency (GHz) | 25 kHz - 20 |
| VSWR (max) | 1.50:1 |
| Voltage | 100 |
| Attenuation Level (dB) | 0.5 |
Physical
| Block Type | Inner |
| Connector Type | SMA/2.9mm |
| Connector Configuration | Male/Female |
| Item Length (mm) | 29.32 |
| Item Diameter (mm) | |
| Item Weight (mm) | |
| Brand Name | Inmet |
