AC Power Distribution

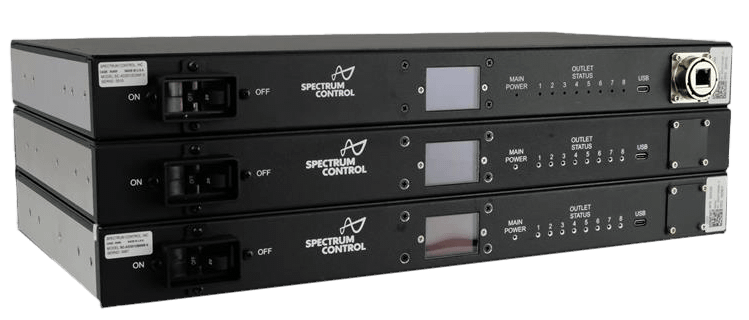

Top: SC-AD2012C0NF-0 Middle: SC-AD2012Q0NR-0 Bottom: SC-AD2012B6NR-0
Intelligent power management, reliable performance
A new best-in-class AC Power Distribution Unit (PDU) product line designed to manage and protect high-value assets in harsh environments.
These high performance PDUs offer a full feature set, durable design, and support for long product life cycles.
Why Power Management Matters
Power Distribution Units (PDUs) play a critical role in safeguarding high-value assets across a wide range of sectors—including industrial, telecommunications, scientific research, healthcare, retail POS, data centers, and military/defense operations.
At Spectrum Control, we design PDUs that go far beyond basic power routing, delivering intelligent monitoring and control, robust equipment protection, and rugged, reliable performance.
Application Example: Battlefield Command
Modern battlefields are a high value mix of personnel, equipment and systems. Providing reliable power to support equipment and systems, and protecting those valuable peripherals from voltage spikes is an essential part of battlefield strategy.
Reliable power distribution and control means supporting both local decisions and remote control and management. And unlike other industrial or commercial PDUs, power distribution for the battlefield must operate reliably in a wide range of hostile conditions, protecting the needs of the mission.
- For aerospace, defense and industrial customers who need to manage and protect high value assets in harsh environments.
- Spectrum Control’s best in class AC & DC Power Distribution Units provide secure control and reliable protection unlike most COTS vendors who trade off reliability & ruggedness for cost.
- We do this by building a ruggedized product with a full-featured modern controller supporting the latest security and interfaces combined with current, voltage and temperature monitoring on a per port basis.
- Reliability and performance are demonstrated by our MIL-STD-810H and MIL-STD-461G qualification testing.
Features
General Operation
Secure remote access and control.
Front panel status display (OLED & LEDs).
Common control across AC/DC PDU’s and RF/ Microwave Systems.
- Enables common UI (user interface) and single connection
Support logical interfaces including SSH, Telnet and Serial interfaces using proprietary ASCII based command line interface (CLI).
Supports SNMPv1/2c/3.
DHCP or Static IPv4 addressing over a Gigabit Ethernet physical layer.
Flexible configuration
Remote Monitoring and control of each outlet individually.
Configurable UP and DOWN Sequencing.
- Configurable Channel Groups
- Configurable soft breaker settings including configurable recover retries.
Configurable over and under alarm settings for voltage, current and temperature.
Auto Up Sequence, Group Enable or Individual Channel Enable following special events (power on, EPO).
4 Modes of control for each channel based on external sensor.
- Turn ON if the temperature increases above a set threshold (cooling)
- Turn ON if the temperature decreases below a set threshold (heating)
- Turn ON if the temperature is within an upper and lower test point (Safe Operating Range), or
- Turn ON if the temperature is outside an upper and lower test point (Alarm Mode)
Hardware
1 RU 19’’ rack mount package.
Designed for manufacturability, automated production test, emphasis on parts availability.
Front panel indicators for mains, channel, local / remote status.
OLED display for addressing, hour meter and additional status.
Ethernet (GigE) nickel-plated-shielded RJ45 and USB 2.0 type-C interfaces.
Input and output monitoring voltage / current / protection / EMI filtering.
Internal and external temperature sensors.
Hardware watchdog timer shuts down unit if control is non-responsive.
Ruggedized design, wide temperature range / low smoke wiring.
Conservatively rated for high MTBF and cool operation.
Operator Safeguards – Emergency Power Off (EPO) functionality.
Specifications
Input Characteristics
| Input Voltage | 85-132 / 170-250 VAC |
| Input Frequency | 60 / 50 Hz +/- 3Hz |
| Line Current Capacity | 30A |
| Input Voltage and Current Monitoring | ○ Voltage measurement +/- 1% ○ Current measurement +/- 2.7% |
| Overload Protection | 1P/20A or 1P/30A UL489 circuit breaker |
| Attached Power Cord | 4ft NEMA 5-20P |
| Transient / Surge Protection | UL 1449 MOVs, Line-to-Neutral, Line-to-Ground, Neutral-to-Ground Thermal protection Transient Energy (2mS): 100J Peak Surge Current (8/20uS): 10kA single pulse Maximum Clamping Voltage (8/20uS): 340V @ 100A pk (120V variant) Maximum Clamping Voltage (8/20uS): 710V @ 100A pk (240V variant) |
| EMI Filtering | Power Line Filter (FHSA series) on input 30dB CM / 26dB DM @ 1MHz 55dB CM / 64dB DM @ 10MHz 45dB CM / 35dB DM @ 30MHz |
| No Output Load Power Consumption | 30W |
Output Characteristics
| Output Voltage | 85-132 / 170-250 VAC |
| Output Current | 20A Maximum per Outlet, 30A Maximum Total Combined Load |
| Outlets | (8) NEMA 5-20R |
| Output Voltage and Current Monitoring on each Outlet | Voltage measurement +/- 1% Current measurement +/- 2.7% |
Mechanical Characteristics
| Material | Aluminum |
| Finish | Powder Coat, Black, Fine Texture |
| Lettering | Silk Screen, White |
| Mounting | Brackets accommodate Front or Mid Mount |
| Weight | 5kg |
Communication
| USB Type C connector |
| 10/100/1000 Base-T (MIL-C-26482 RJ-45 Connector) |
Operation Environment
| Operating Temperature | -40C to +50C |
| Storage Temperature | -40C to +80C |
| Relative Humidity | 0 – 95% (non-Condensing) |
| Elevation | 0 – 3,050 meters |
| Sensor | Internal and External Temperature Sensing |
Environmental
| MILSPEC | MIL-STD-810H ○ 501.7 Procedure II ○ 507.6 Procedure II ○ 514.8 Procedure I ○ 516.8 Procedures IV & V MIL-STD-461G |
