RF Multiplexers
In complex RF environments, managing multiple frequency bands over a shared path is key to keeping systems smaller, lighter, and performing well. Multiplexers are designed to separate and route different bands with minimal interference, making multi-band operation much easier.

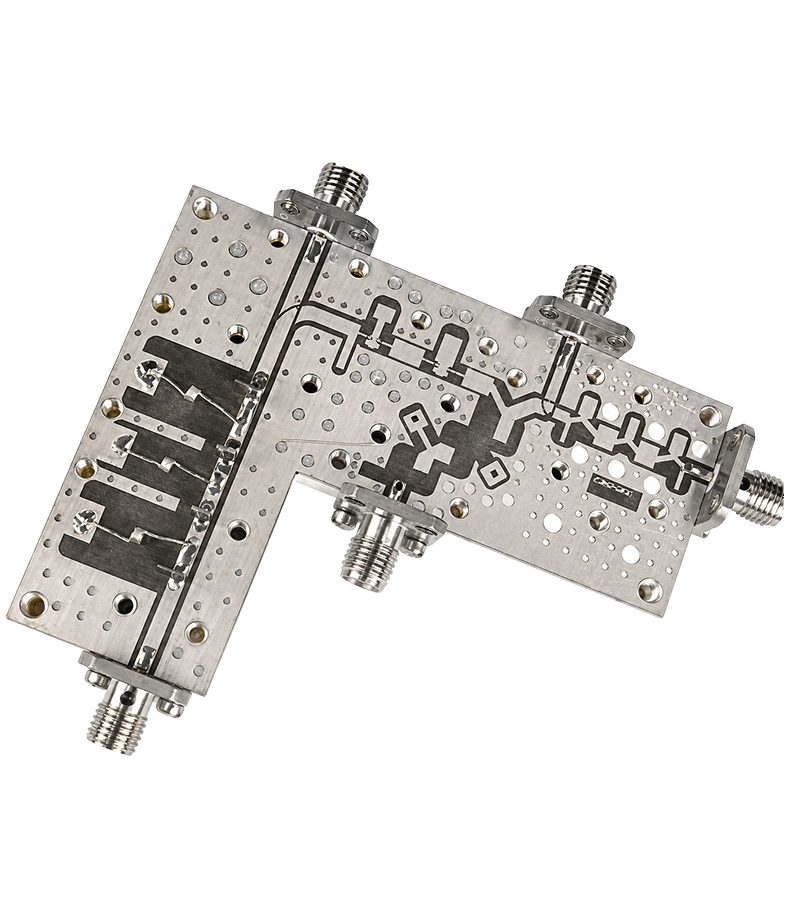

Using a precise set of filters, such as the suspended-substrate design shown to the right, multiplexers allow multiple transmitters and receivers to share a single antenna or transmission line while maintaining high isolation, low loss, and reliable performance across all channels.
Visit our filter customization tool to optimize your demanding multiplexer requirements. Our extensive library of low-loss designs can reduce the need for additional gain, supporting SWaP-constrained applications. Spectrum engineers apply innovative techniques to deliver high-performance solutions.
At the heart of any multiplexer is one key objective: isolation. A multiplexer separates incoming signals into their respective frequency bands and maintains isolation so each can be processed independently without interference.
Multiplexers manage four or more frequency bands simultaneously using a network of bandpass filters and multiple ports to control signal routing. This allows multiple transmitters and receivers to share a single antenna or transmission line, reducing system size and weight.
In crowded RF environments, signals can overlap, distort, or bleed into adjacent channels. A well-designed multiplexer prevents these issues by tightly controlling each frequency band and maintaining signal integrity across all channels.
Spectrum Control focuses on ultra-low insertion loss (as low as 0.1 dB) and steep rejection between bands. The result is efficient signal management and dependable operation in demanding applications such as electronic warfare, radar, targeting systems, and next-generation communications, including 5G and emerging 6G frequencies.
SWaP Considerations

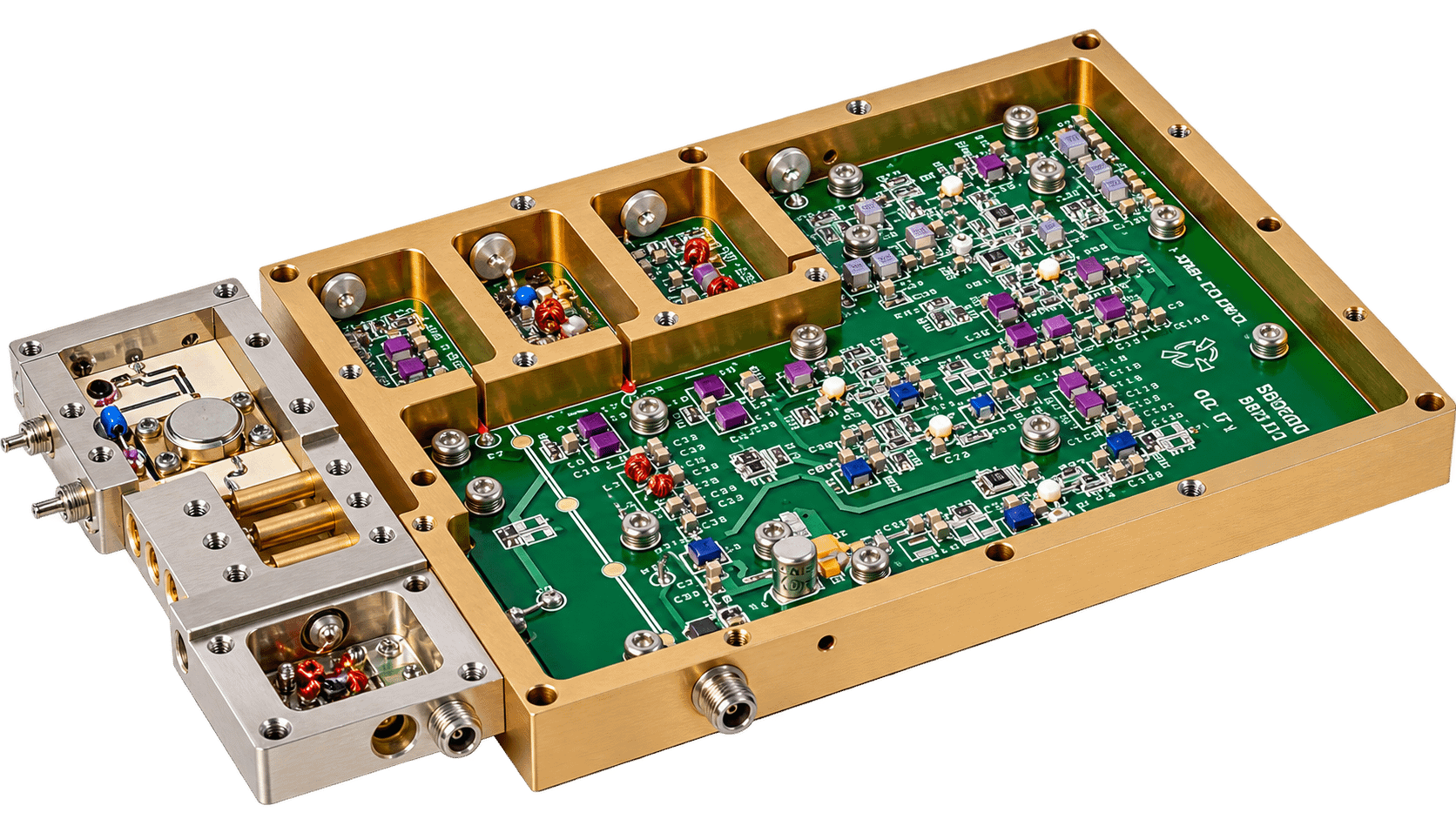

Multiplexers handling 4 or more channels face size, weight, and power pressures as channel count increases. Each additional filter adds physical size and weight at the point in the RF chain where size and weight is often most in demand.
Spectrum Control addresses this by optimizing filter topologies per channel rather than defaulting to a somewhat casual approach across all bands using compact lumped element topologies where the spec allows larger cavity structures, reserving only for channels that require lower loss or higher Q. This refined approach helps keep the overall multiplexer size in check even as the design scales up to support additional bands, which is critical for platforms like airborne or manpack, flight, every added ounce carries a direct field cost
Innovative Packaging
Reducing Size Through Cross-Coupling

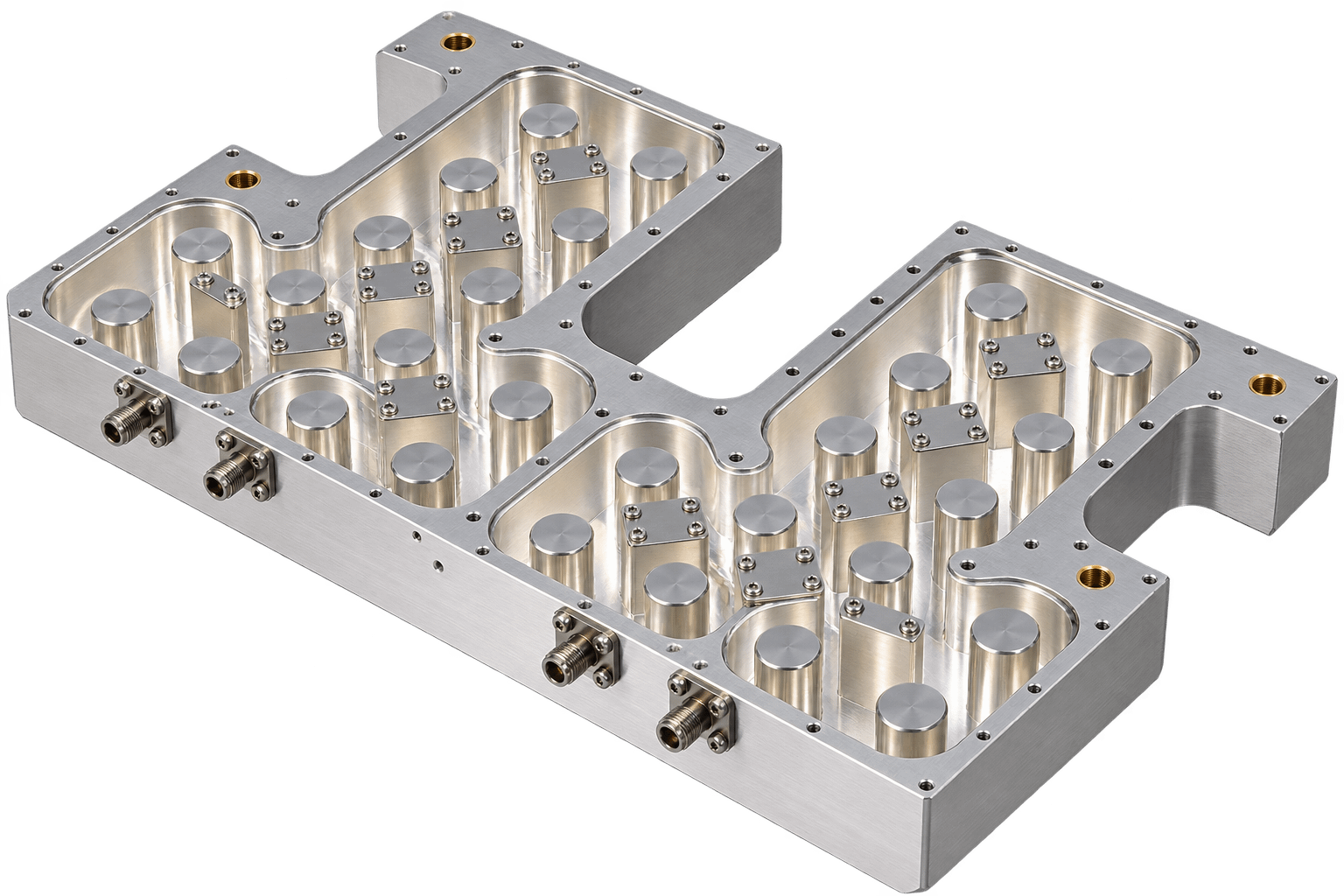

A primary technique used to reduce multiplexer housing volume is the strategic implementation of cross-coupling. By incorporating conductive coupling paths between nonadjacent resonators, localized transmission zeros can be introduced at targeted frequencies. These transmission zeros sharpen the filter response and improve out-of-band rejection without requiring additional resonators. This approach helps reduce the overall size and complexity of the multiplexer while maintaining the required electrical performance.
Creating Rejection Without Added Size
By rerouting a signal path from the first or second resonator directly to a downstream resonator, a magnetic field is created that bridges the two nodes. This controlled energy transfer produces destructive interference at targeted frequencies, creating localized transmission zeros and deep rejection notches. The resulting multiplexer delivers a highly selective response and improved out-of-band rejection without requiring additional resonators or increasing the overall housing footprint.
Predicting Thermal Performance

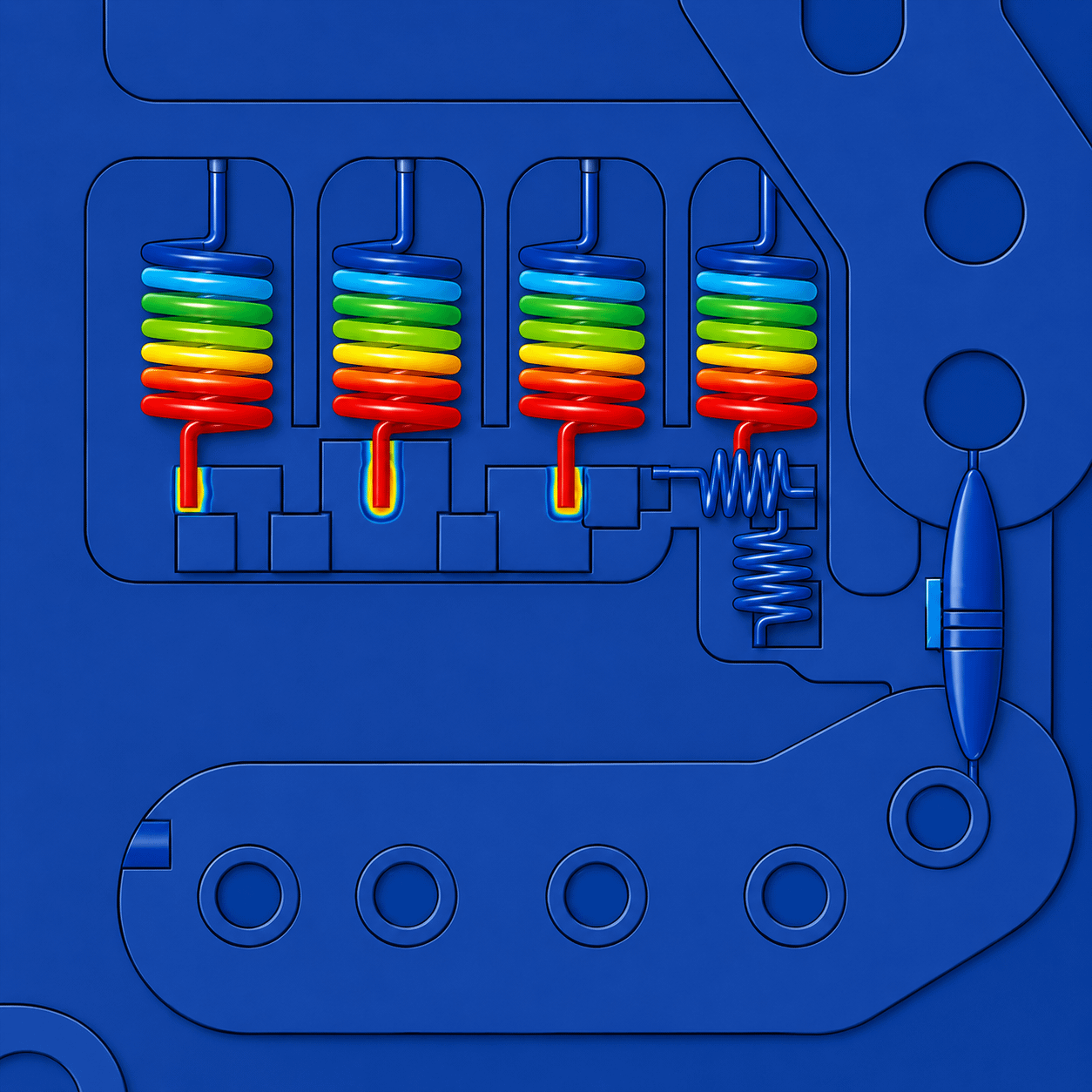

Thermal modeling helps identify overheating risks before hardware is built. Because multiplexers manage four or more channels simultaneously, each band contributes a thermal load that can interact within the shared housing. Spectrum Control correlates thermal predictions with FLIR imagery captured across all active channels. This approach identifies hot spots early, reducing the risk of inductor damage, cracking in lumped-element sections, and warping while supporting reliable multichannel performance.
3D Design Optimization

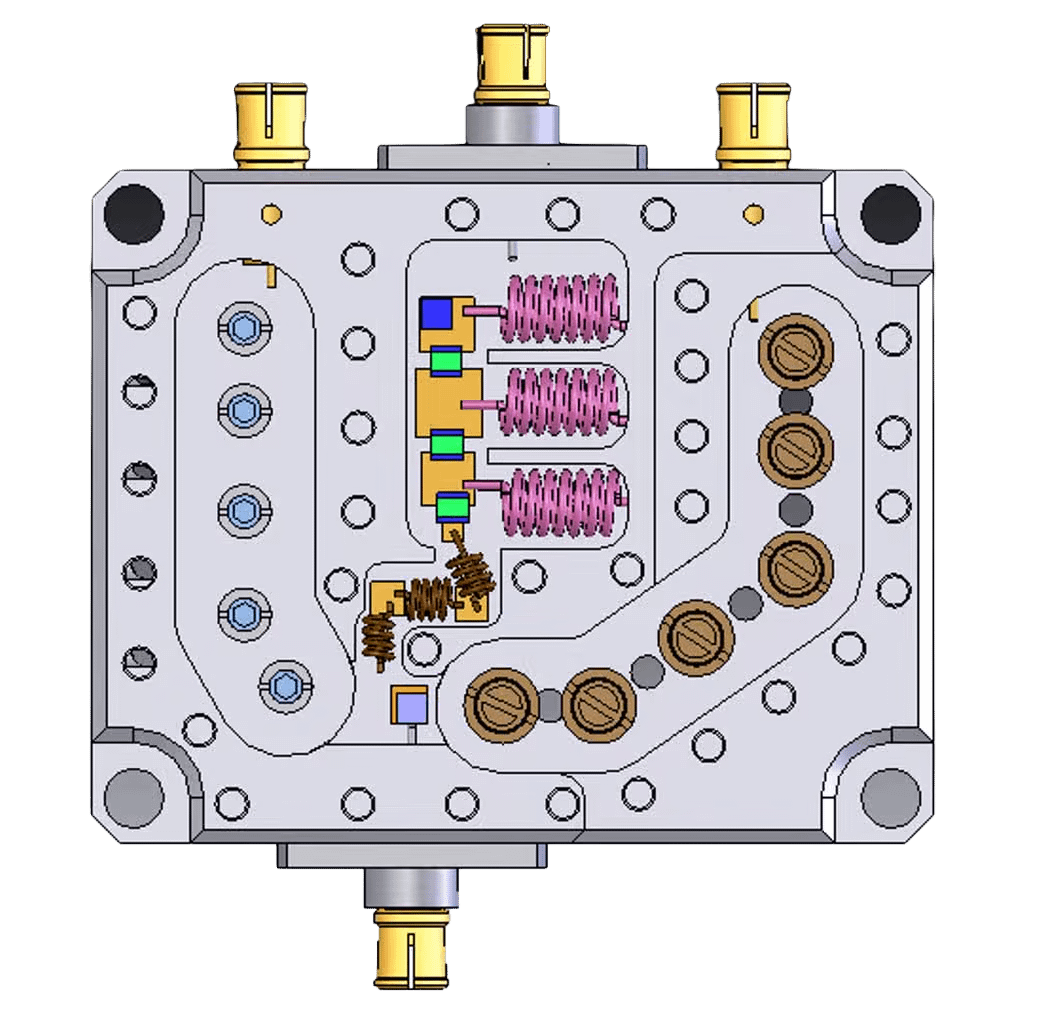

Incorporating 3D modeling as a standard step before multiplexer assembly provides more than improved mechanical visualization. With four or more channels routed through a shared structure, engineers can simulate electromagnetic behavior across the entire design before hardware is built. This enables optimization of resonator spacing, orientation, and geometry while identifying cross-channel parasitic effects early, improving first-pass success and reducing trial-and-error development as channel count increases.
Multiplexer Selectivity vs. Insertion Loss
When designing multiplexers, one of the biggest balancing acts is the trade-off between selectivity and insertion loss. The goal is to separate multiple frequency bands while keeping loss as low as possible; improving one almost always impacts the other.
Selectivity allows a multiplexer to cleanly separate adjacent bands and reject unwanted signals. To achieve sharper skirts between bands, RF engineers add more filter sections to each channel. This produces steeper roll-off, higher rejection, and better isolation, which is especially important when signals are closely spaced or operating in a crowded RF spectrum.
However, there is a trade-off. As more poles are added to improve selectivity, insertion loss tends to increase. Every added reactive element, inductors and capacitors, introduces some loss due to real-world limitations such as finite Q and resistance. While higher-order designs improve isolation and rejection, they also make it more difficult to minimize signal loss through the multiplexer.
As multiplexer designs become more complex, sensitivity to tolerances and parasitics also increases. Even small mismatches between poles can create reflections that lead to additional loss and reduced performance. What may be negligible in a simple LC design becomes much more significant in a high-order multiplexer.
Because each channel interacts with adjacent channels to some degree, small variations, whether from machining tolerances, component values, or temperature shifts, can affect impedance and overall performance. In higher-order designs, tight control of component values is essential to avoid passband ripple, center-frequency shifts, and excess loss.
Filter response also influences the balance between selectivity and insertion loss. Butterworth designs generally favor lower loss and a smooth passband, while Chebyshev and elliptic responses provide sharper rejection at the expense of ripple. Ultimately, multiplexer design is about managing trade-offs and finding the optimal balance between channel separation and efficient RF performance.
Managing Insertion Loss Across Channels
In a multiplexer, loss doesn't stay within a single channel, it can at time extend across the entire Multiplexer design. Because every multiplexer channel shares a common port, small mismatches in one filter can affect the impedance seen by adjacent channels, so that a loss problem in one channel can hurt the performance in channels that were well matched. This becomes more pronounced as channel numbers increase, since each added channel adds another opportunity for added loss. Spectrum Control manages this by controlling element tolerances tightly across all channels as a complete design, rather than optimizing each filter in isolation. This ensures that the combined impedance loading at the port stays predictable and in check, and that low loss is maintained across every band.
