RF Triplexers

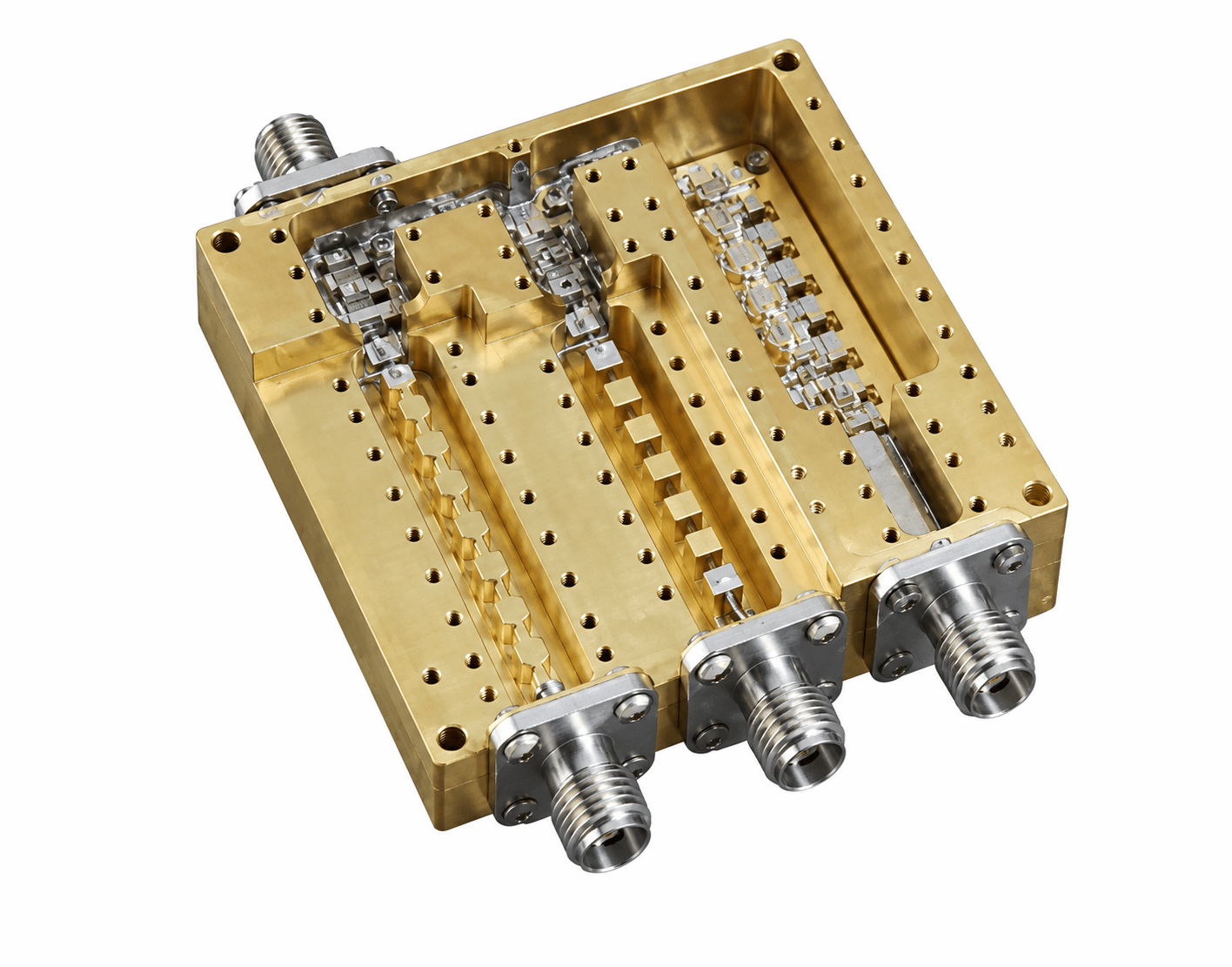

In a crowded RF spectrum, managing multiple frequencies within a shared signal path is challenging when optimizing size, weight, and performance. RF triplexers are designed to separate and pass discrete signals with minimal interference. Utilizing a precision array of filters, triplexers enable both receivers and transmitters to operate and manage multiple channels on a single transmission line or antenna.
The objective of any triplexer is to separate and isolate three distinct frequency bands or tones, allowing each signal to be managed independently. A triplexer uses a four-port configuration to receive and split signals into three separate paths, typically through a combination of high-pass, low-pass, and bandpass filters.
At Spectrum Control, designs focus on achieving ultra-low insertion loss (as low as 0.1 dB) and steep attenuation or rejection characteristics. This ensures that even in crowded RF environments, such as those found in Electronic Warfare, targeting systems, defense radar, 5G, and emerging 6G applications, signal fidelity is maintained without cross-channel interference.
Visit our filter customization tool to optimize your demanding diplexer requirements. Our extensive library of low-loss designs can reduce the need for additional gain, supporting SWaP-constrained applications. Spectrum engineers apply innovative techniques to deliver high-performance solutions.
Role of Triplexers
Triplexers play a critical role in RF systems by enabling three signals to coexist within a single RF path while allowing the channels to be separated at the output ports. Instead of requiring three completely independent signal paths at this point in the RF chain, a triplexer allows engineers to consolidate signal routing, reducing hardware count and improving overall system efficiency.
Because each channel exhibits a high degree of attenuation outside its designated passband, a triplexer ensures that signals remain well isolated even while sharing the same physical housing. This isolation is especially important in RF systems where transmit and receive paths operate within the same structure or where multiple signals occupy closely spaced frequency bands with minimal separation.
Mixed Topologies
In some systems, a single filter topology, such as a cavity or lumped-element design, may not satisfy the bandwidth, insertion loss, or rejection requirements of all three frequency bands. In these cases, triplexers may employ multiple filter topologies within a single design, with each channel optimized for its frequency range.
For example, a lumped-element circuit may be best suited for the lower-frequency channel, while a cavity filter may be used for the higher-frequency channel, where its higher Q-factor and lower insertion loss provide superior performance. This approach allows RF engineers to balance competing requirements within a single design while potentially reducing overall size by combining lumped-element and cavity-based structures.
Novel Packaging
 |

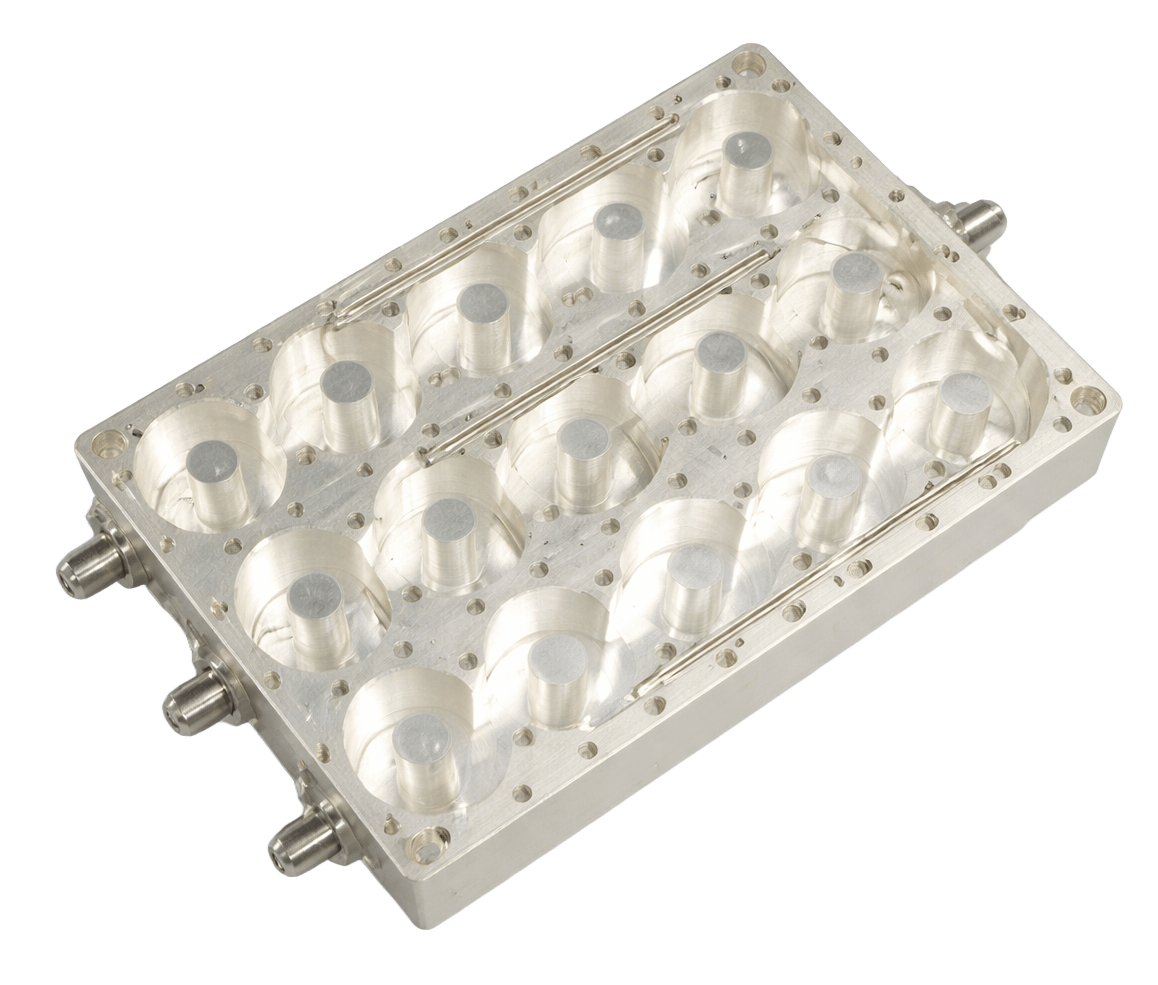

A technique used to reduce the triplexer housing footprint is cross-coupling. Incorporating conductive coupling paths between non-adjacent resonators creates transmission zeros. In this arrangement, current from Resonator 1 influences Resonator 4, creating a magnetic field that links the two resonators and enables energy exchange between them. This interaction produces deep notches and sharp selectivity within the design. As signals interfere destructively at specific frequencies, rejection is enhanced without increasing the overall size of the filter. This approach helps maintain a high Q-factor, enables a more compact design, and reduces parasitic effects while preserving signal fidelity. |
|
While cavity-based designs offer significant advantages, lumped-element topologies also provide important benefits. Cavity and other distributed-element filters typically deliver higher Q-factors and lower insertion loss, but their larger size can be a limiting factor. Lumped-element designs, on the other hand, offer a smaller footprint, although they generally introduce higher insertion loss. Incorporating a hybrid approach that combines both topologies can provide the best of both worlds: reduced size, improved performance, and sharper rejection through the use of transmission zeros. |
|
 |

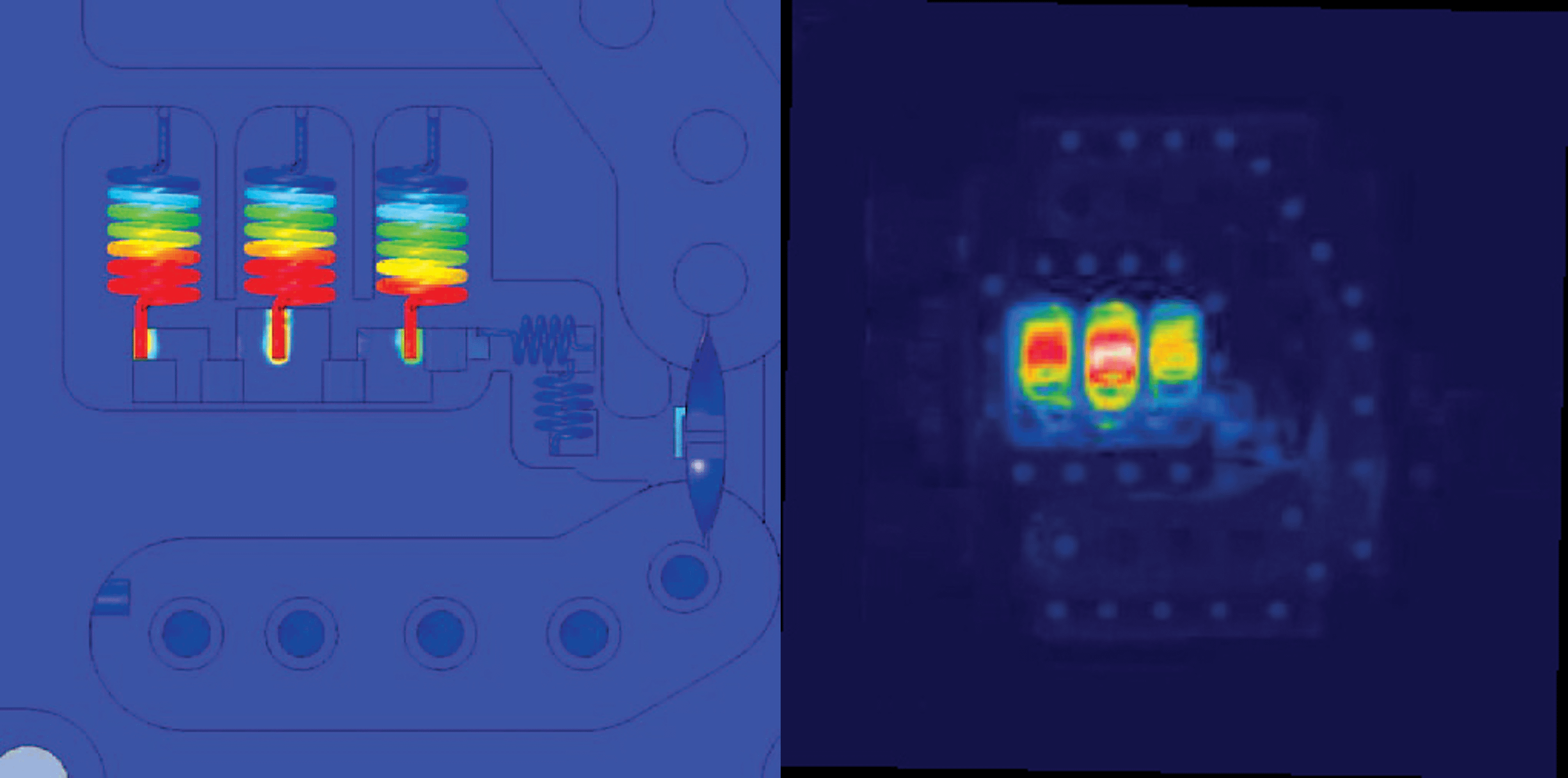

Thermal modeling offers significant advantages over simply reacting to overheating issues. Spectrum Control incorporates thermal predictions into its designs and correlates those predictions with FLIR imagery of measured operating conditions. This approach identifies where power is dissipated and highlights potential hot spots that can lead to inductor damage, cracking in lumped-element sections, or warping under extreme RF power conditions. By predicting thermal behavior early in the design process, this methodology reduces trial-and-error development and helps ensure reliable performance. |
|

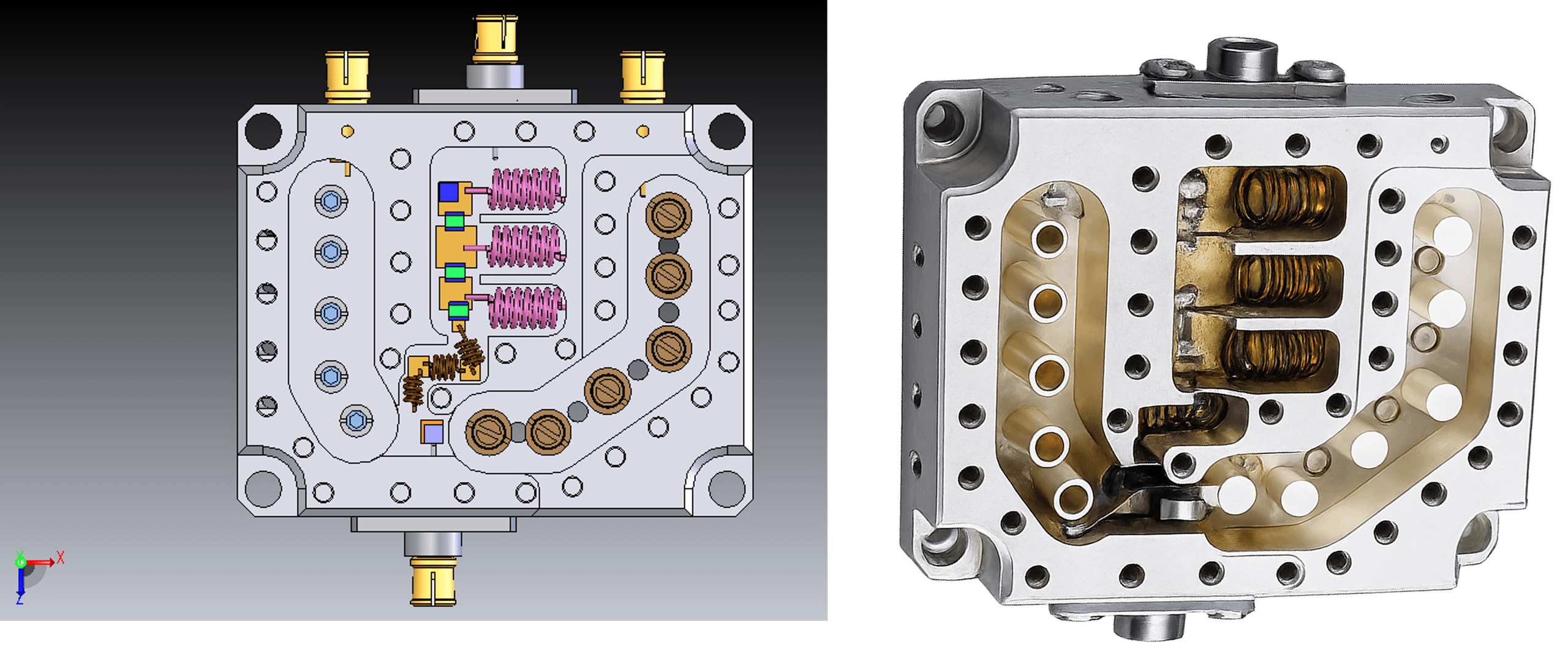

Incorporating 3D modeling as a standard step prior to triplexer assembly provides far more than enhanced mechanical visualization. It offers practical design advantages by allowing engineers to accurately simulate electromagnetic behavior before hardware is built. 3D modeling enables optimization of resonator spacing, orientation, and geometry while identifying and mitigating parasitic effects before they become part of the final assembly. This approach improves first-pass design success and reduces the trial-and-error development cycle. |
|
 |
