Value-Added EMI Services

Adding EMI protection is critical to protect your equipment and to achieve electromagnetic emissions compliance. But adding EMI filters to your system can have a ripple effect across your organization from planning and procurement to assembly and test.

Spectrum Control offers additional services to help you achieve the best outcome for your organization by improving your product, shortening delivery times, and more. Services include:

Integrated filter assemblies
Custom filter arrays
EMC evaluations

Overview Vertical Integration Value-Add Solutions Featured Products

Value-Add Services Overview

Let us partner with you to improve the integration of EMI filters into you system.

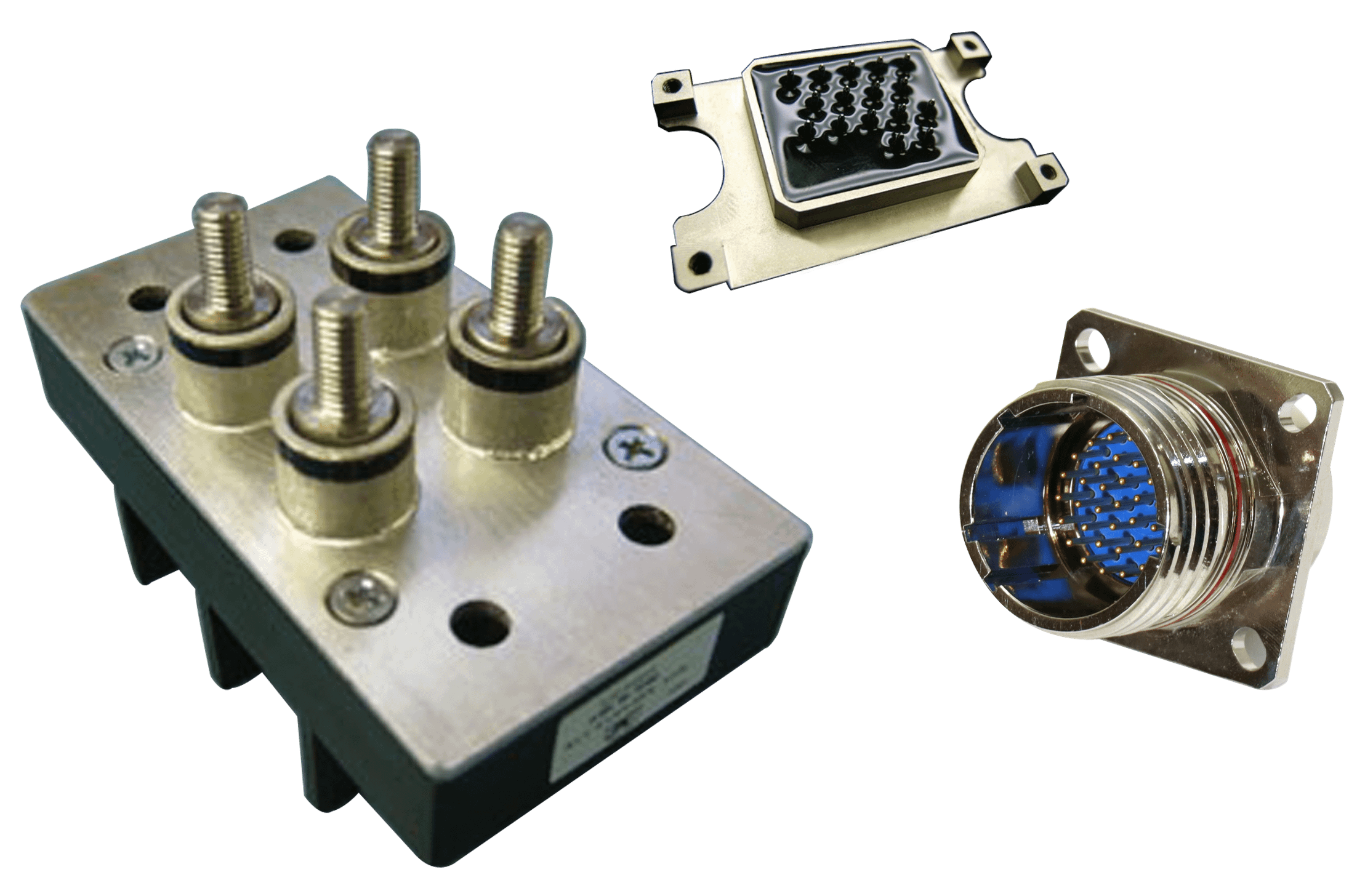

A value-added electrical-mechanical assembly from Spectrum Control saves assembly time, test time, and the costs associated with purchasing and managing individual components, wires, and hardware.

Augment your internal capabilities and improve outcomes

Leverage our years of EMI filtering experience and unique capabilities

Exceptional EMI engineering expertise
Vertically integrated manufacturing – from capacitors to complex assemblies
Volume production experience, including supplier management
Specific know-how in working with the unique characteristics of EMI filters

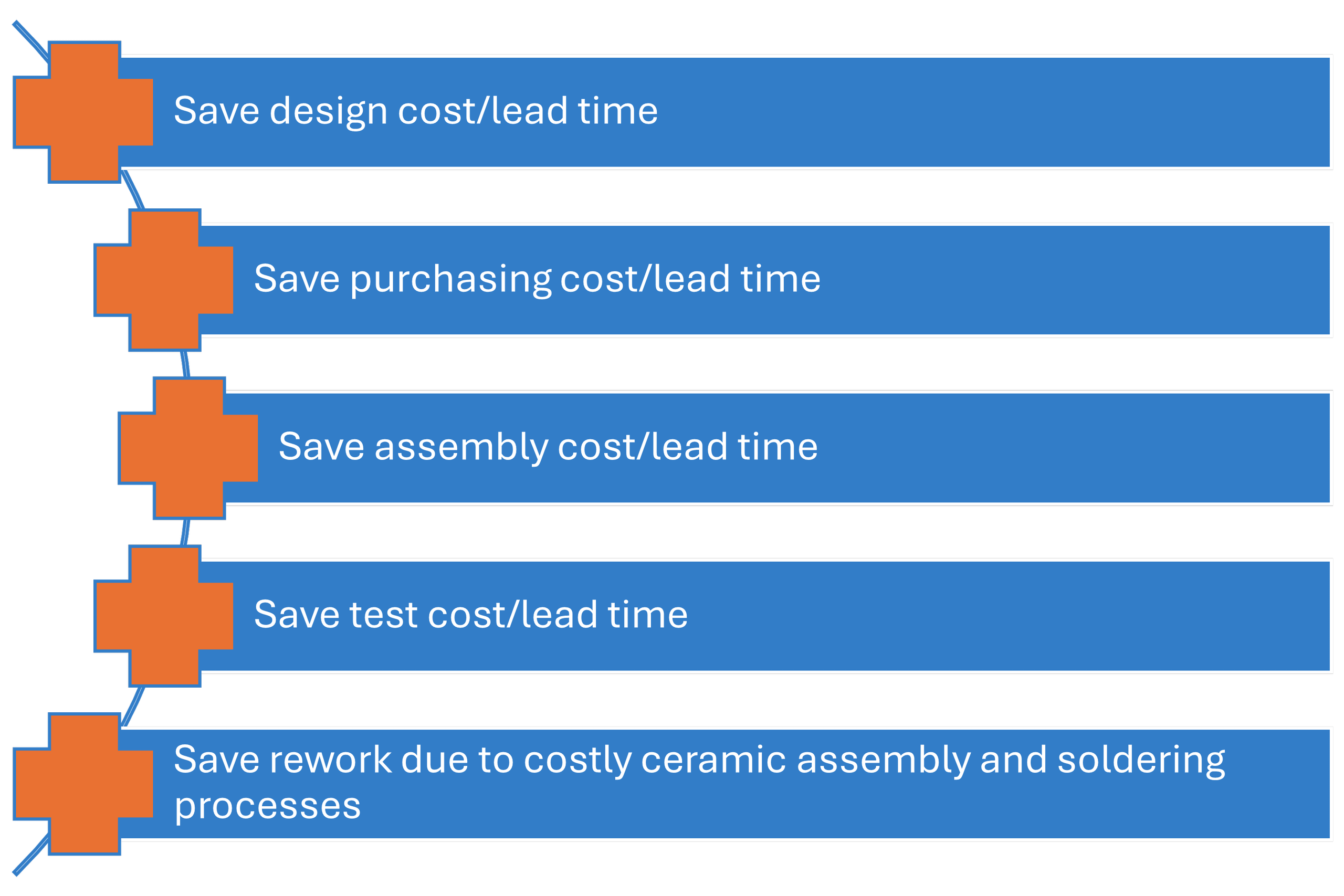

Benefits to you and your team

Less Scrap, Better Qualification Rates, and Improved Delivery Schedules

Minimize rework on electrical assemblies
Reduce returns and improve customer satisfaction
Reduce common failure modes

Maximum Reliability in Solder Joints

EMI filters are sensitive to thermal stress, requiring careful soldering practices. Spectrum’s proprietary solder processes offer:

Up to 4 solder alloys in a single assembly
Up to 2X tighter temperature control than traditional soldering processes
Compensates and manages Coefficient of Thermal Expansion(CTE) variations
Meet MIL-STD-202-208A requirements

Simplified planning and procurement

Purchase integrated assemblies rather than ordering and stocking multiple components
Removes complexity of coordinating deliveries of multiple parts from multiple manufacturers

Custom-built EMI filter solutions tailored to your system design, logistics, and budget!

Spectrum Control has been a leading provider of EMI filter solutions since 1968. In these five-plus decades, we have utilized our extensive engineering experience, innovative design approach, and advanced manufacturing capabilities to develop the most comprehensive product line. Spectrum Control maintains leadership in many industries by applying the latest technology to design performance-enhancing products and systems.

Spectrum Control is an engineering-driven, solutions provider. This basic premise remains a constant driving force through the years of expansion. Our teams of experienced application engineers use sophisticated simulation software to replicate real-world environments. Once product designs are complete, we conduct exhaustive in-house testing and verification to ensure function and compliance.

Vertical Integration

Take advantage of our end-to-end design and manufacturing

We support our supply chain with in-house, US-based manufacturing of all critical parts, from ceramic substrates through connectors, housings and assemblies. The result is customers experience higher quality and shorter delivery schedules. Our innovative approach incorporates next-generation automation and testing technology for greater customer value.

Spectrum Control is a leading provider of technologies, components, subsystems, and custom solutions to manage and control the electromagnetic spectrum. Innovators around the world turn to our engineering and design teams to build proven solutions.

Value-Add Solutions

We provide solutions in three areas: filter assemblies, filter arrays, and EMC evaluations

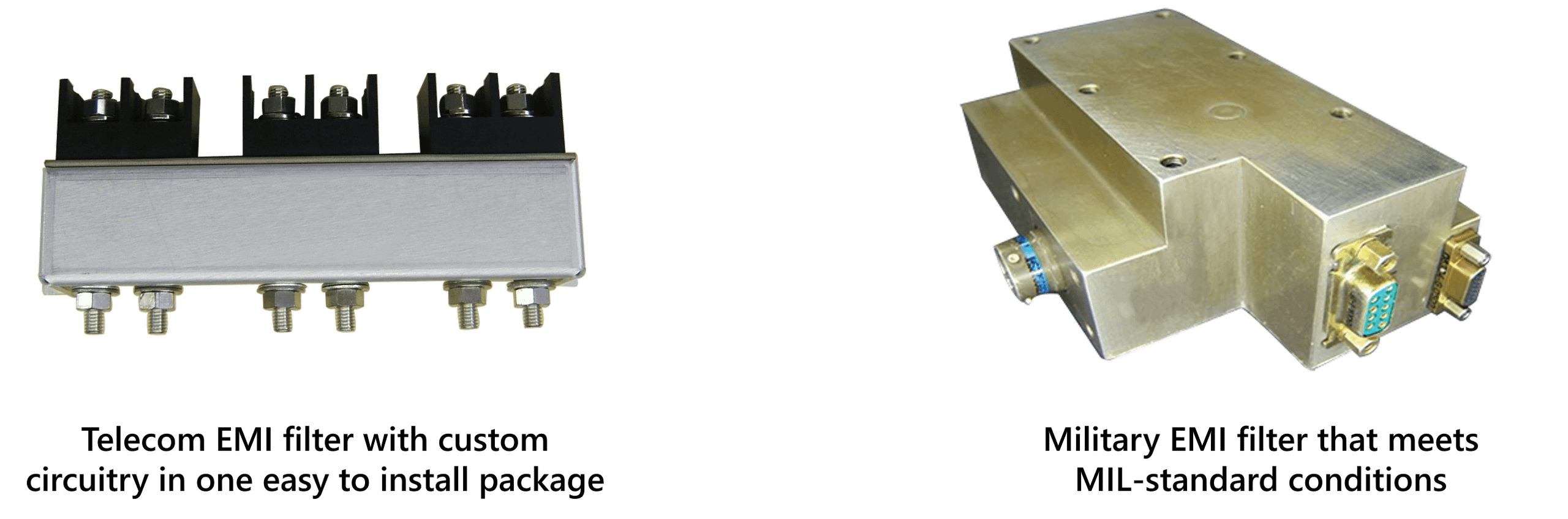

Integration of multiple filters into an assembly or box

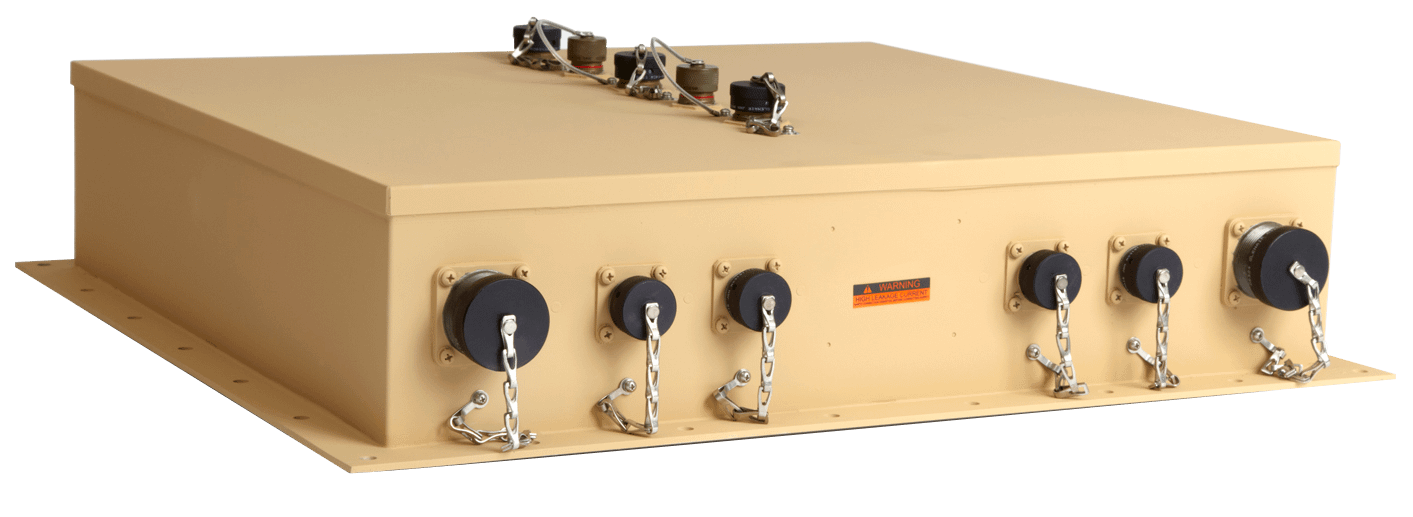

Rarely does a 100% off-the-shelf power filter completely satisfy the mechanical, electrical, and power requirements and constraints of a sophisticated OEM design. At Spectrum Control, we are focused on providing a complete solution that considers all factors. Whether modifying an existing power filter design, working from a “clean sheet” approach, or integrating various technologies into a subassembly, the result is a custom solution that will be tailored to your project’s design, logistics, and budgetary requirements.

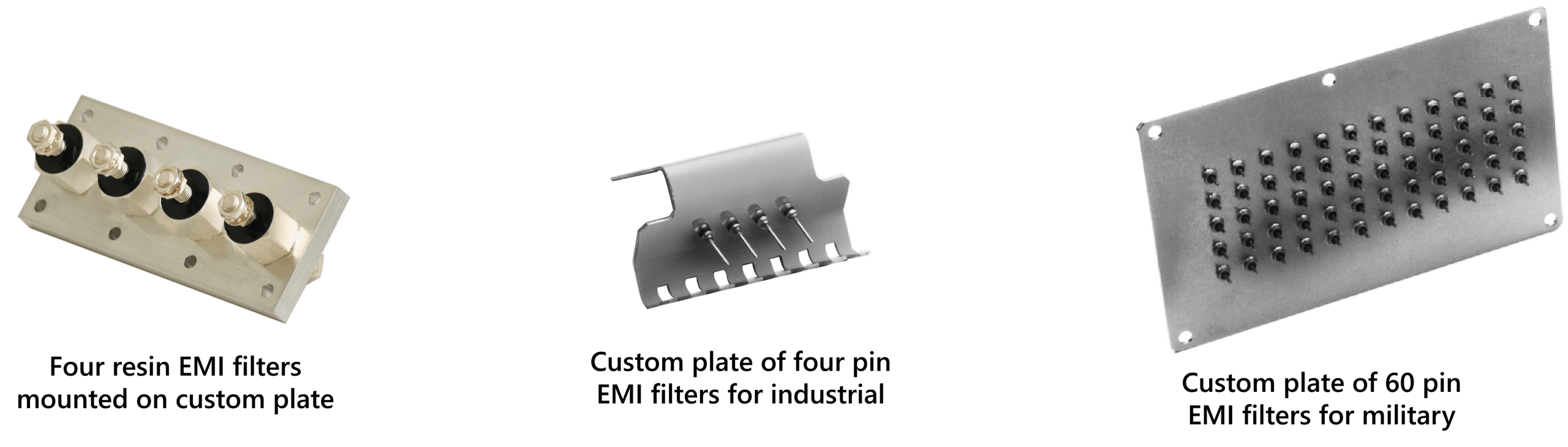

Custom filter arrays with associated electronic products and interconnects and/or housings

Spectrum Control will custom-design filter arrays (sometimes referred to as filter plates) that meets your size, material and filtering requirements. We have engineered a variety of capacitive-only filter elements that provide excellent RF isolation from 5 MHz to 1 GHz and beyond. In addition, we are capable of providing stringent testing and analysis of our filter plate assemblies to MIL-PRF-15733 and MIL-PRF-28861.

In addition to our standard and custom filter plates, we offer several value-added features designed to complement your manufacturing operation. Our marketing and engineering staff will evaluate your design or manufacturing parameters and develop a filter solution that provides increased filtering performance economically.

EMC evaluations on your equipment, recommending proper placement of EMI/RFI filtering

Integral to finding a solution to an EMC problem is the ability to test for compliance. Spectrum Control will conduct a wide range of EMC and environmental tests to help us identify potential problems and recommend design solutions. Our extensive in-house test capabilities allow for a faster turnaround of your complete design solution and lower total cost.

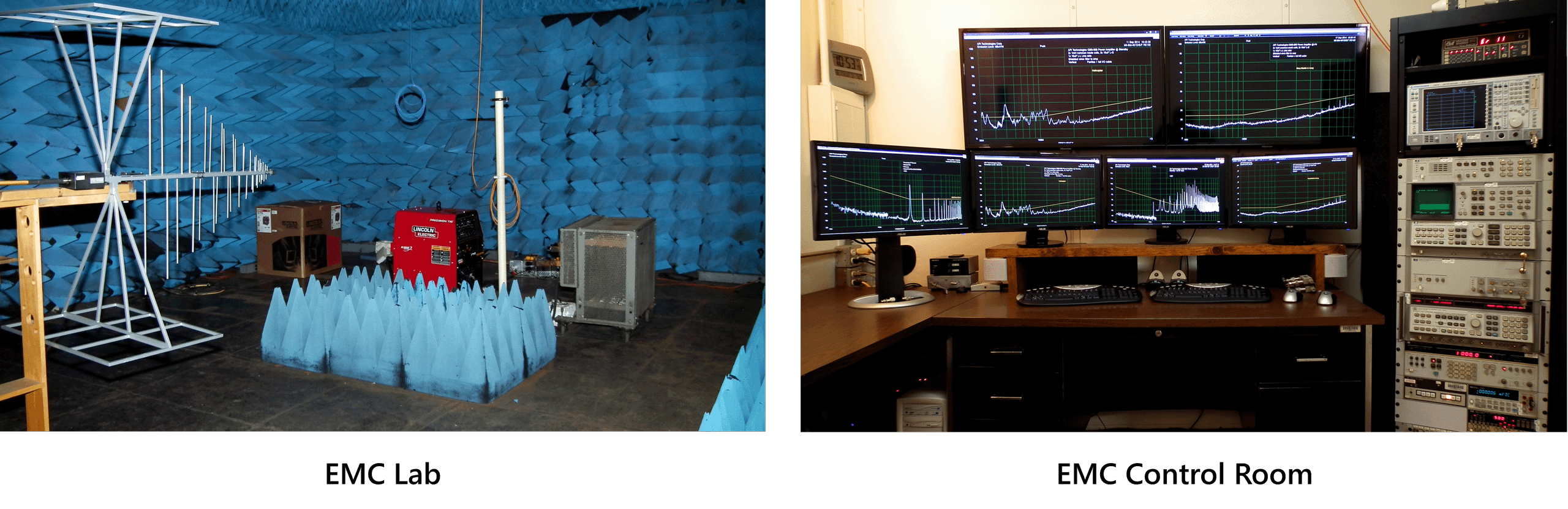

Ambient-free in-house shielded anechoic chamber
NARTE certified engineering staff
Highly accurate computer-controlled instrumentation accumulates and presents data in multiple formats
Testing to military and international commercial regulations

Featured Products

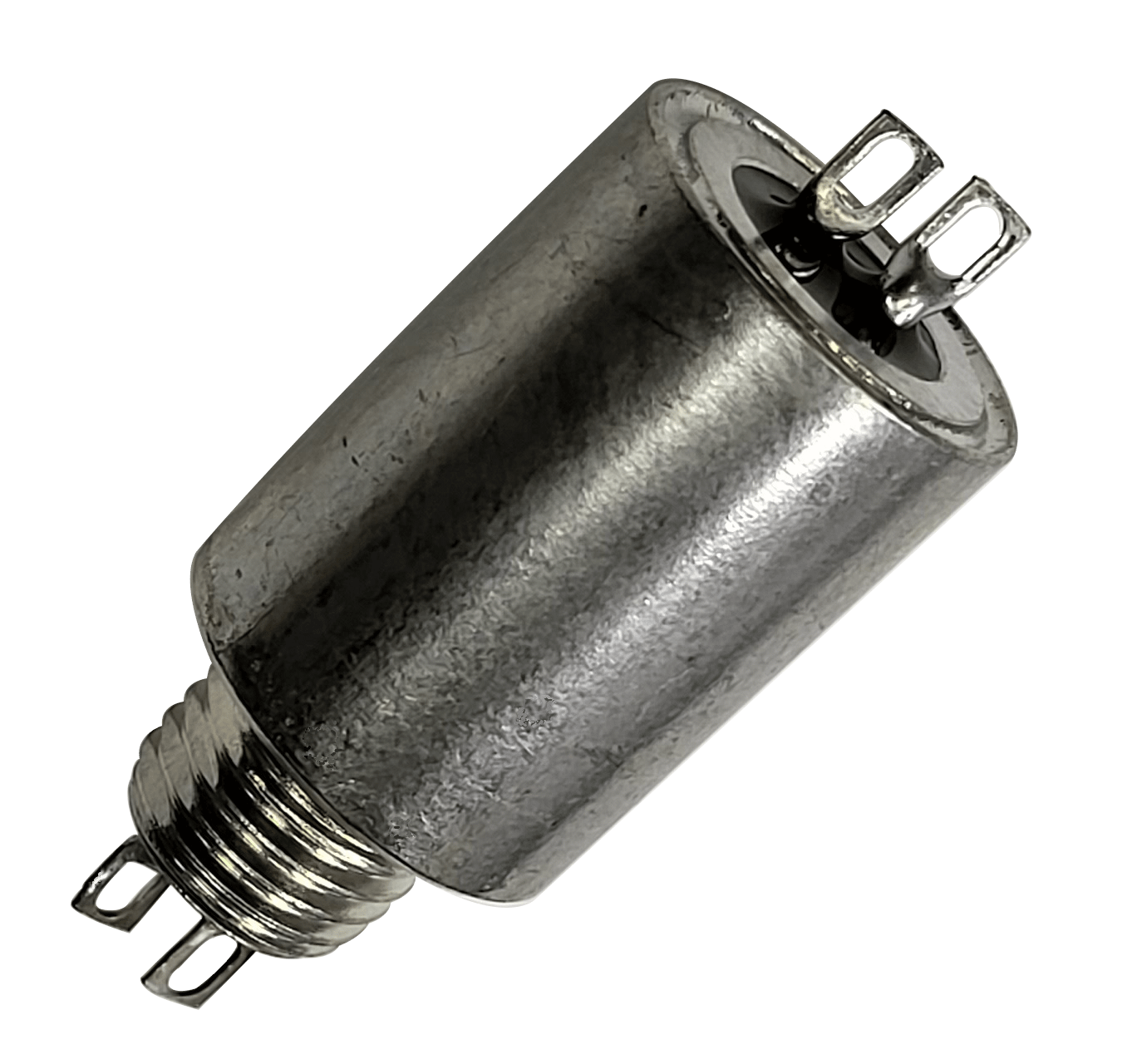

Dual Line Filter: Space-saving dual line EMI filter with a compact design, 50% less weight than employing two single line filters.

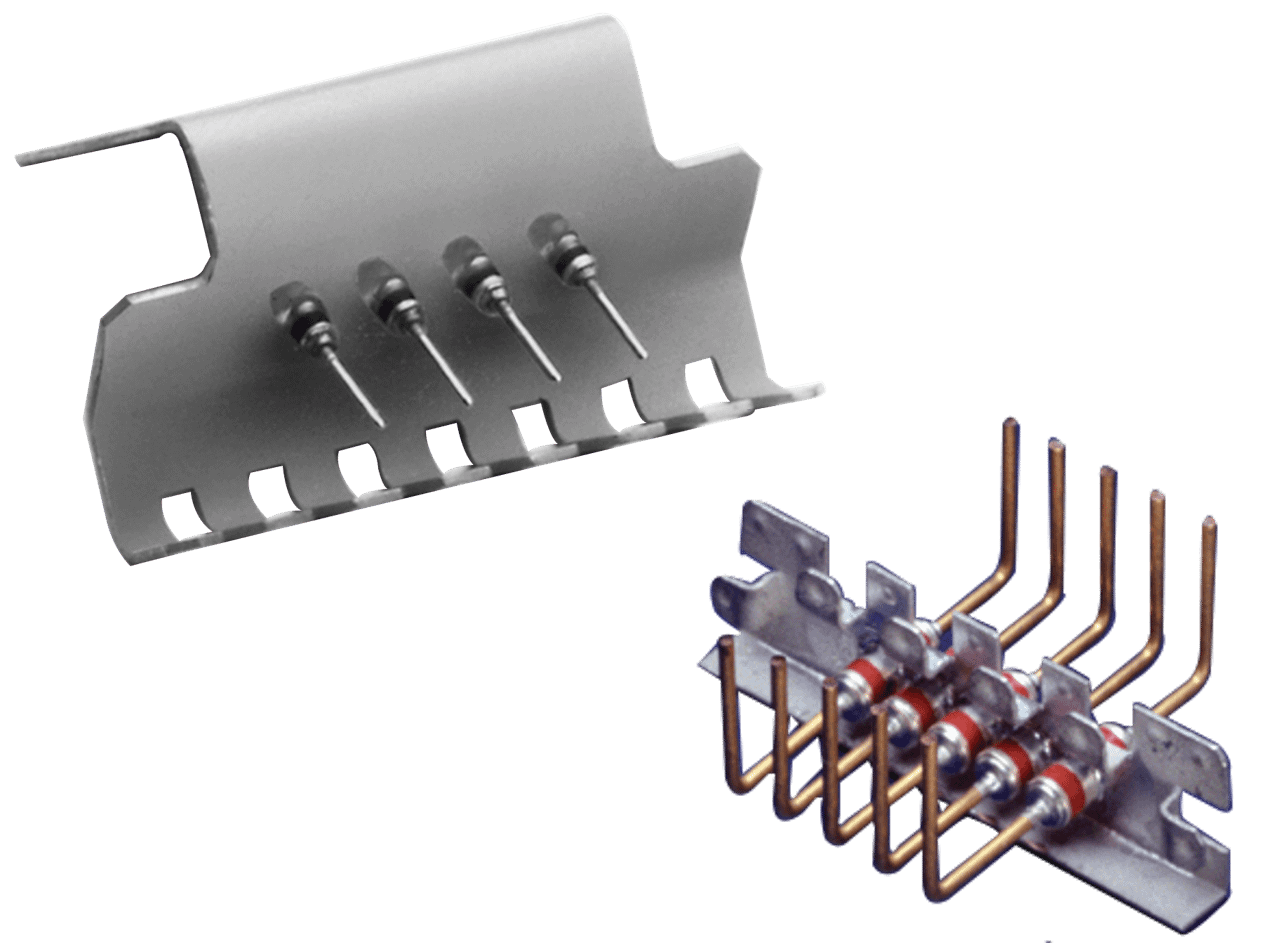

Filter Plates & Arrays: EMI filter assemblies offer a cost-effective solution for filtered signal lines and meeting EMC requirements.

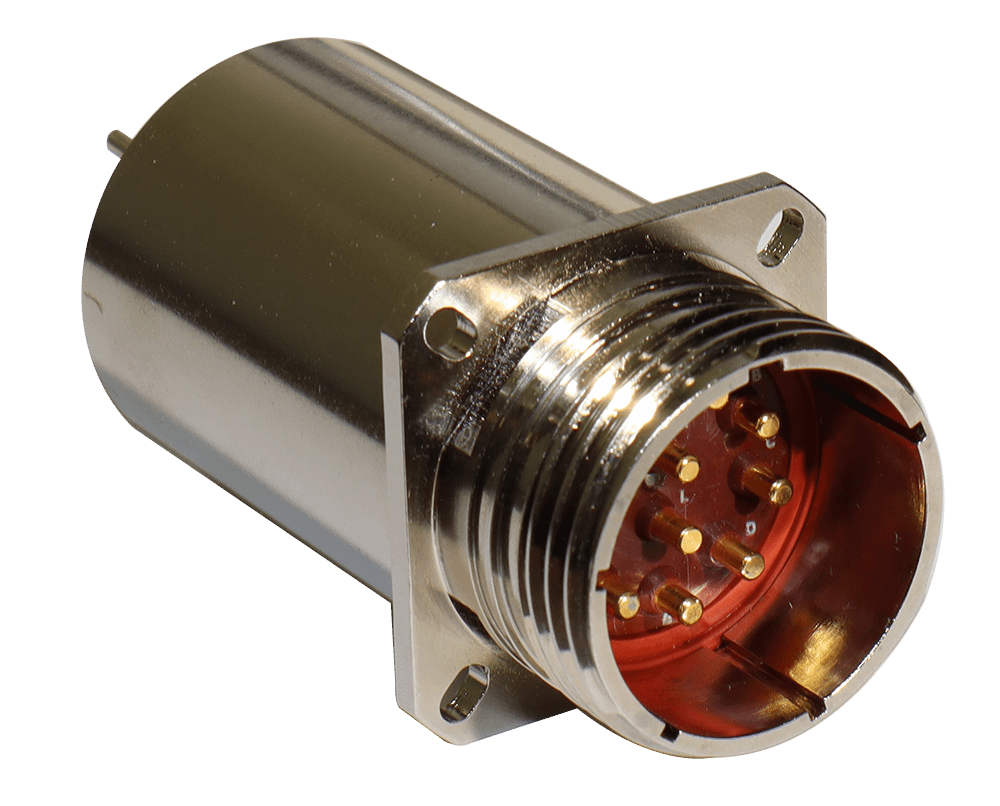

Power Connector: circular connector that incorporates integrated common-mode and differential-mode power EMI filtering.

Integrated Electrical-Mechanical Assemblies: Custom integration of multiple EMI filters into an assembly for unique requirements.
