IMAs

Spectrum Control designs and manufactures standard and custom integrated microwave assemblies (IMAs) and subsystems for commercial and defense applications. Our multi-disciplinary engineering and manufacturing teams develop and build a wide range of integrated products from chips to fully integrated signal acquisition and processing blades.

Applications supported include MILCOMM, Radar, electronic warfare, navigation and much more. Scroll below to see examples of the types of IMAs we have successfully designed and deployed for our customers.

FEATURED CATEGORY

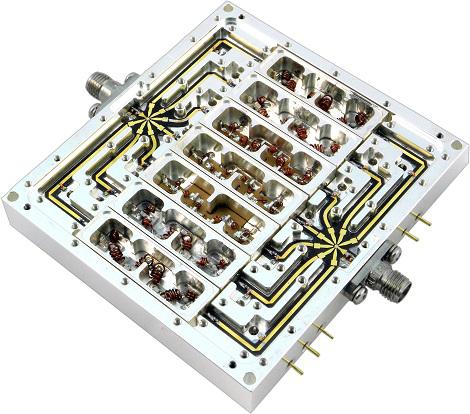

Configurable Switched Filter Banks

Configurable and custom switched filter banks.

LEARN MORE

Products and Capabilities

Here are some of the wide variety of custom IMAs we have developed for customers.

  • Configurable pre-filtered GPS Low Noise Amplifier (LNA)
  • RF filter banks: switched- and configurable switched banks
  • Multi-function power amplifier subsystems
  • Power amplifier modules
  • Power amplifier drivers and gain blocks
  • Tx/Rx modules , dual- and quad-band
  • Active Phased Array Radar (APAR) and Multi-Function Radar (MFR)
Switched Filter Banks
By combining filter and switch design expertise, Spectrum Control provides integrated switched filter assemblies that reduce the overall mechanical footprint and offer improved electrical performance.

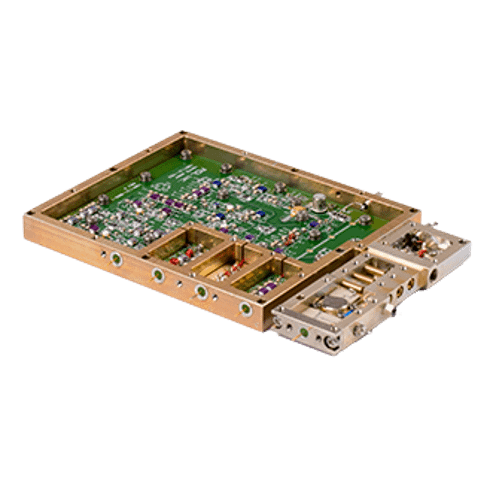

Multiplier and Converter IMAs
Custom integrated microwave assemblies using oscillators and other frequency sources alongside our own filter, amplifier and switching components

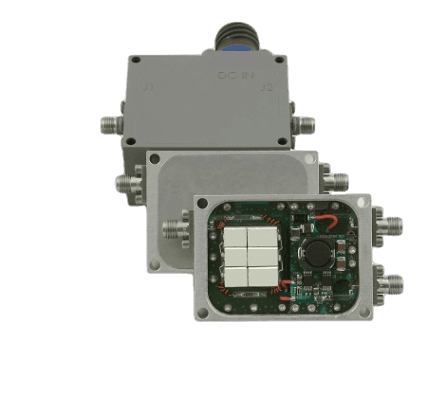

GPS Low Noise Amplifier IMA
Configurable, pre-filtered with anti-jam performance and a Sub 2 dB noise figure
Switchable Multi-Channel Amplifiers
Phase-matched, amplitude-matched and both single and multiple path logic. Available in 2-, 3-, and 4-channel configurations.

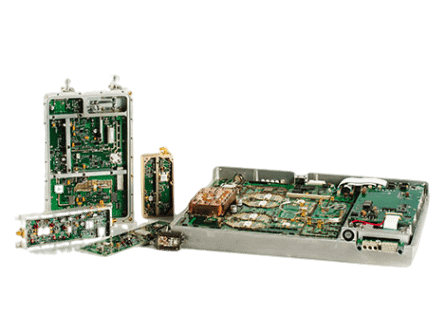

Power Amplifier Modules
Integrated solution with multi-band amplifiers, switched harmonic filter banks and high-efficiency DC converters with integrated adaptive biasing controls

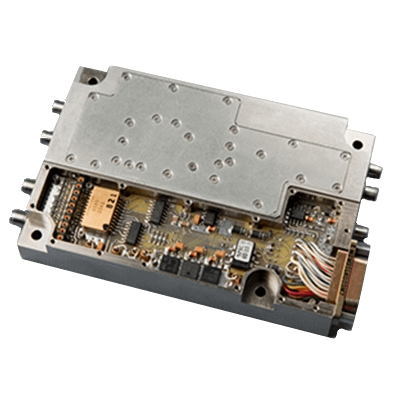

Phase Frequency Detectors
Frequency measurement of an RF pulse and output data in as little as 15 ns with continuous frequency coverage

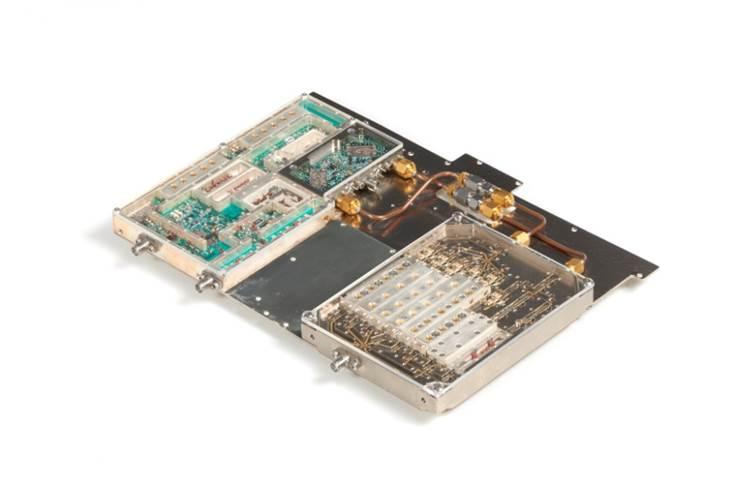

Upconverters and Downconverters
Vertically integrated solutions combining filter, amplifier and mixer designs plus an optional dual-channel frequency converter with a tunable synthesized LO

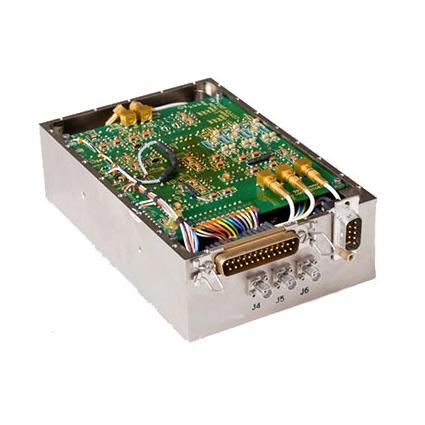

Digitally Tuned Oscillators (DTOS)
Integrated sub-band VCOs covering customer-specific frequency ranges between 2 GHz and 18 GHz

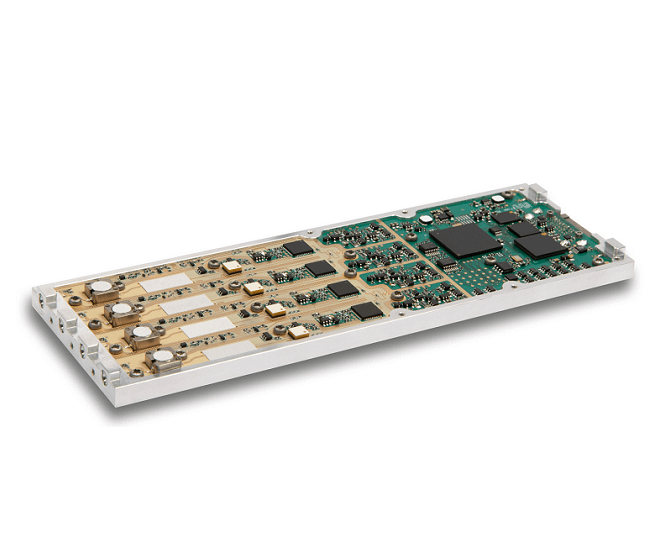

Transmit/Receive Modules
Single- and multi-channel RF front end assemblies for defense applications including Radar and EW.
Custom Switched Filter Banks
Spectrum Control's switched filter bank IMAs draw on the expertise of our multi-disciplined staff with many years of experience in both microwave filters and control components.

Advanced Technology

Spectrum Control utilizes a wide range of technologies to deliver high power and broad bandwidths.

  • GaN
  • LDMOS
  • Silicon MOSFET
  • GaAs MESPHET
  • GaAs pHEMT
  • Thick film
  • Thin film
  • Chip and wire
  • Hybrid
  • PCB and SMT
  • MMIC
  • Glass
