Group Delay is critical because it controls elements in a circuit, which can directly impact Timing fidelity of incident Waveforms. An RF Bandpass Filter normally focuses on selecting the operational band, permitting only that portion of the incident waveform to pass, however, an additional element to RF design is to avoid distorting the waveform when signals arrive at the output at different times. To maintain spectral purity, all integral elements or components in the RF chain should have the consistent linear phase response to preserve the waveform.

If a bandpass filter exhibits significant group delay variation, signals could disperse or become distorted, compromising the waveform downstream. When consecutive wave pulses are distorted, they can also overlap. Overlapping signals can make it difficult for a receiver to separate and analyze each pulse. For RF filters where group delay is not a leading parameter, this nonlinear response can make managing the incident waveform more challenging.

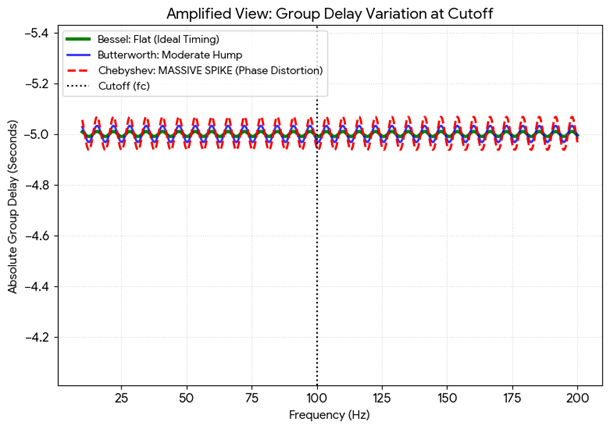

Variations in group delay can cause signals to widen, spread, or blend when different components have different phase responses, leading to inaccurate measurements or analysis. Group delay variation can also increase the bit error rate, making it harder to distinguish where one packet ends and another begins. Pulses may overlap, and the resulting distortion can make it difficult for an analog-to-digital converter to discern their edges. In a radar system, precise timing is essential for accurate distance measurements. Group delay variation can distort pulses and reduce the fidelity of the original waveform.

In modern phased-array radar, phase is used to steer beams across the field of view. Flat group delay helps maintain accurate beam positioning as frequency changes.

When selecting a bandpass filter, high Q and selectivity often take priority. However, highly selective designs, such as Chebyshev filters, can exhibit rapid phase changes near the 3 dB points, resulting in greater group delay ripple. The poles near the passband edges contribute to these changes in the signal’s phase response. Bessel filters, by comparison, offer a flatter group delay response than many other common filter types.

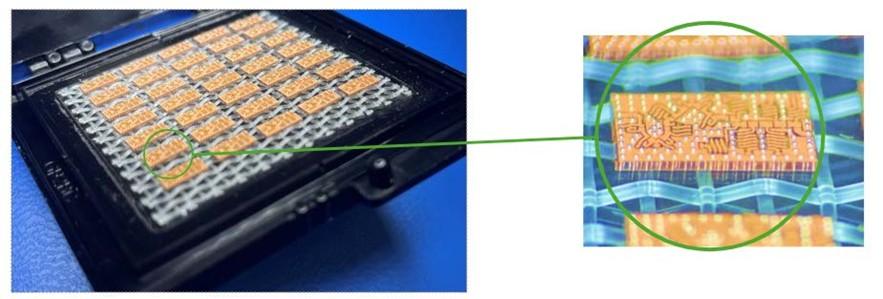

As high selectivity becomes more prominent in the 6G conversation, miniaturization and SWaP considerations will also take priority. Next-generation designs must balance selectivity, insertion loss, and thermal stability with size, weight, power, and cost constraints. Emerging technologies like glass filters offer a compelling option, combining compact size similar to SAW filters with broader frequency capability, operating up to 10 GHz compared to the typical ~1.5 GHz limit of SAW devices, while also providing improved insertion loss performance.

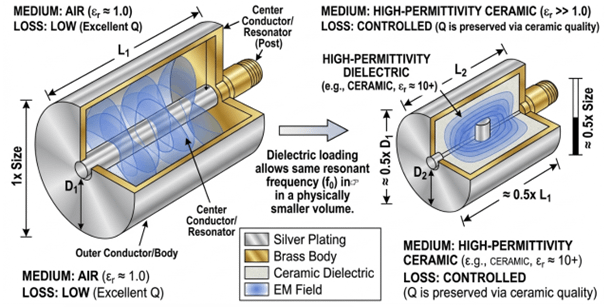

In narrowband cavity designs, unloaded Q and size are inherently linked. Smaller resonators can reduce loss but often increase unloaded Q, while also softening the filter skirts. Because resonators store energy, reducing their size affects selectivity. Introducing ceramic for dielectric loading does not change current flow along the metal resonator but alters the effective wavelength, enabling a more compact design.

All RF filter designs involve trade-offs. As sections and resonators are added, group delay variation increases due to greater energy storage. This is especially critical in emerging 6G applications, where high-speed data requires minimal delay variation. To mitigate these phase effects in higher-order designs, a Bessel function can be employed.

When selecting the optimal shape factor for an RF filter, designers must consider trade-offs between different topologies, guided by the specific platform or application. While shape factor is often a primary concern, factors such as group delay variation, passband ripple, transition sharpness, and insertion loss can significantly impact overall RF chain performance.

RF filter design firms like Spectrum Control typically select from four main transfer functions based on application needs. Butterworth filters are preferred for their maximally flat passband, achieved through symmetrically distributed poles. However, this ripple-free response results in a more gradual transition into the stopband.

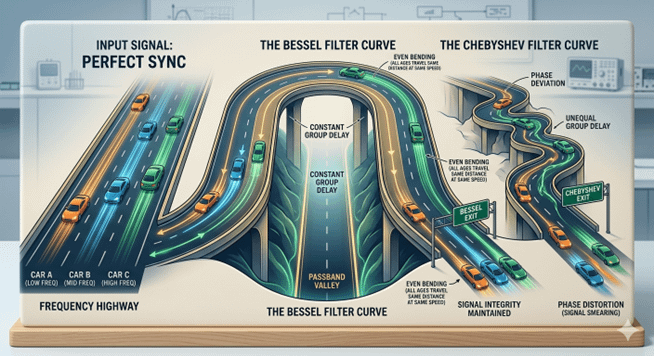

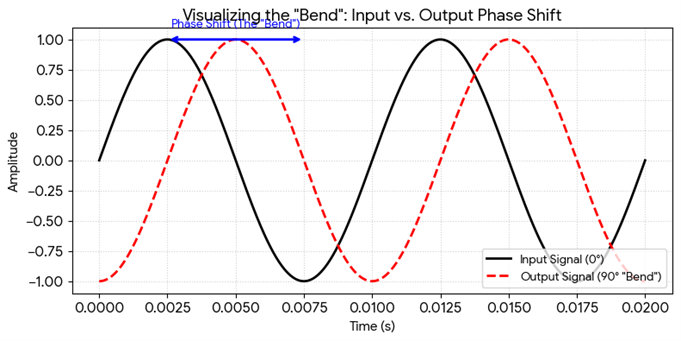

If minimizing group delay variation and phase deviation is the goal, a Bessel function is typically preferred. Its poles are positioned to maintain a nearly constant group delay across the passband. As the signal approaches cutoff, reactive elements store and release energy, increasing phase shift. In a Bessel design, this phase response remains smooth and uniform, much like a well-banked curve, ensuring signals exit with minimal distortion.

In contrast, a Chebyshev filter prioritizes sharp rejection, resulting in a more abrupt and less uniform phase response. The “curve” is tighter and less synchronized, causing signals to exit at different rates, an effect analogous to phase distortion.

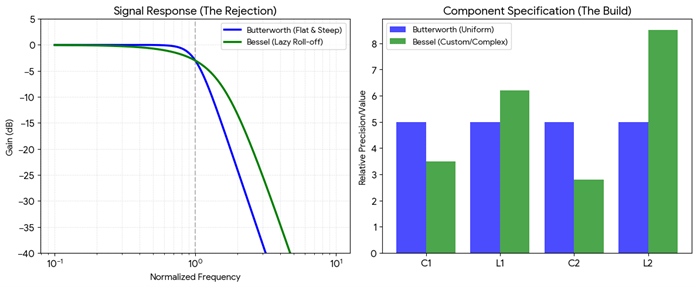

With a Bessel function, phase linearity is preserved, but rejection is reduced. The design uses specific, non-uniform component values to achieve a flat phase response. At cutoff, the passband exhibits a gentler knee, offering less attenuation of frequencies near the stopband.

When maximizing steep skirts, rejection, and sharp roll-off, a Chebyshev function is often preferred. It offers a more pronounced shape factor than Butterworth or Bessel filters, but introduces passband ripple as poles cluster near the cutoff frequency. This results in non-linear phase response, increased group delay variation, and potential signal distortion near the band edges.

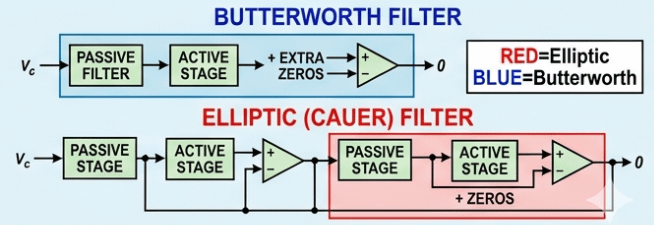

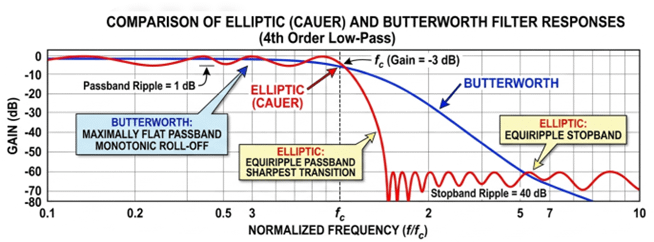

For even sharper rejection, elliptic (Cauer) filters provide a near “brick-wall” response with excellent selectivity. They achieve this through both pole placement near the passband and transmission zeros in the stopband. However, elliptic filters exhibit ripple in both passband and stopband and have highly non-linear phase response, making them less suitable for phase-sensitive applications.

Because steep rejection is prioritized, phase linearity is significantly degraded. Group delay variation increases near the band edges, introducing distortion. As a result, Cauer (elliptic) functions are generally not well suited for time-domain applications such as phased-array radar.

In conclusion, when selecting a filter function, selectivity, insertion loss, and rejection should not be the only considerations. Group delay variation and phase deviation can be equally important, depending on the intended application and platform requirements.

In RF design, selectivity and insertion loss are often competing considerations. Improving close-in rejection generally increases insertion loss.

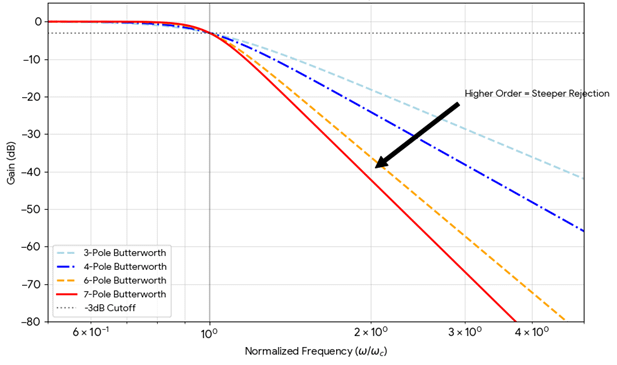

Selectivity describes how sharply a filter transitions from its passband to its stopbands while rejecting nearby unwanted frequencies. To create steeper skirts, an RF filter designer may add sections to the design. Each pole in a Butterworth filter contributes approximately 6 dB per octave, or 20 dB per decade, to the asymptotic roll-off. A higher-order filter can provide a more sharply defined passband, helping isolate receive-side signals near the noise floor.

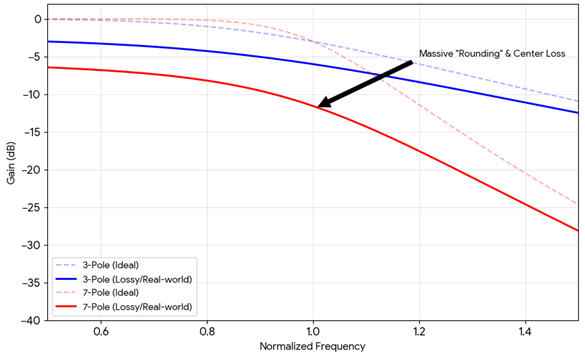

Adding sections comes with a trade-off: insertion loss can increase. Additional poles require components such as capacitors and inductors. These components have finite Q and introduce loss as the signal passes through the RF filter.

Higher-order filters with six or seven sections are more sensitive to component tolerances and layout parasitics than lower-order designs. Small impedance mismatches between sections can cause reflections, increasing insertion loss and passband ripple. As more sections are added to achieve sharper rejection, precise tuning becomes more important.

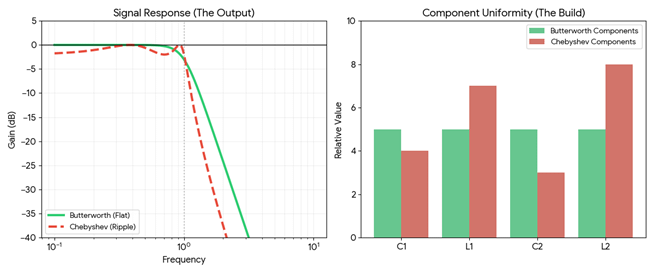

In a three-pole design, a small component variation may have little effect. In a design with six or more poles, similar variations can disrupt the intended response. Reflections from impedance mismatches send some incident power back toward the input rather than through to the output. Higher-order designs, including Chebyshev filters, therefore require tighter control of component values.

A capacitor that deviates from its intended value because of temperature or manufacturing variation can introduce passband ripple. At higher frequencies, layout parasitics, including substrate effects and trace lengths, can also shift the center frequency and make the source of a performance change harder to identify.

Even small impedance mismatches between sections, such as a change from 47 to 53 ohms, can reflect power toward the source. Adding more sections creates more opportunities for mismatches, potentially degrading return loss. Reflected power can create standing waves and passband ripple as it interferes with the forward-traveling signal. Power dissipated within the resonator structure becomes heat, which can cause further physical changes.

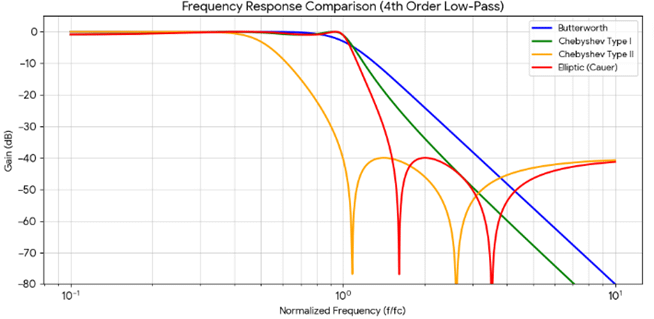

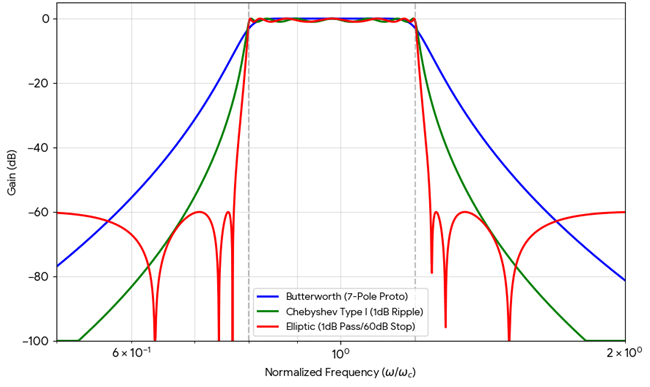

Different filter topologies prioritize performance characteristics differently. Butterworth filters offer a flat passband but less selective skirts. Chebyshev filters provide sharper skirts at the cost of passband ripple. Elliptic filters can achieve still sharper transitions, with ripple in both the passband and stopband.

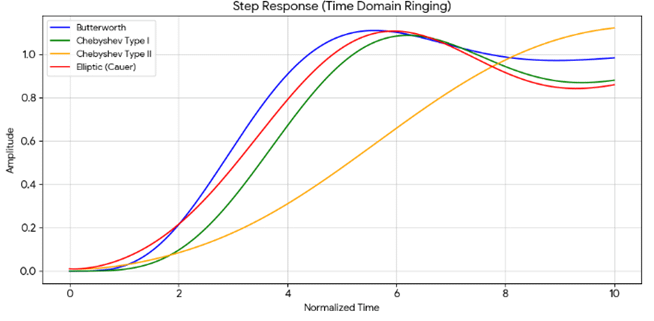

Filter responses such as Butterworth provide a smooth, flat amplitude characteristic, while Chebyshev and Cauer (elliptic) functions exhibit ripple and uneven weighting. This amplitude variation can distort the signal in the time domain, causing pulse spreading where one symbol overlaps into the next. The resulting intersymbol interference (ISI) can increase bit error rate.

Full-layout simulation using tools like HFSS can identify unintended coupling (crosstalk), where input and output traces interact and potentially bypass the bandpass filter. At higher frequencies, such as 5G and emerging 6G bands, copper landing pads can behave as capacitive elements, detuning the filter’s band edges. Including pad geometries and surrounding structures in the simulation helps account for parasitics and provides a more accurate representation of interface impedance.

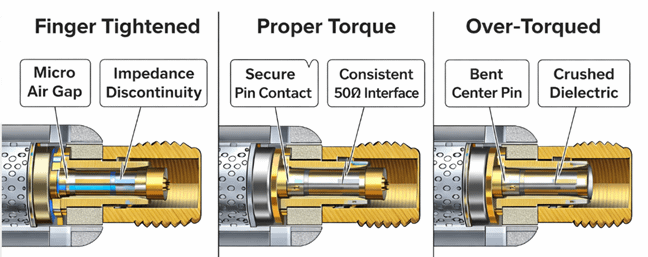

Tighten all connectors (as shown in the image below) to the manufacturer’s specified torque. Under-tightening can create air gaps, leading to impedance mismatches, while over-tightening can damage the internal dielectric and permanently compromise the integrity of the connector.

Verify connector torque (for SMA/SMP types). As frequency increases beyond UHF, layout precision becomes critical. Excess solder on pads or traces can alter the local impedance, which is typically designed for 50 ohms. Solder buildup can introduce additional capacitance near the pads, changing impedance and creating small reactive elements before or after the filter termination. style="width: 100%; height: auto;" />

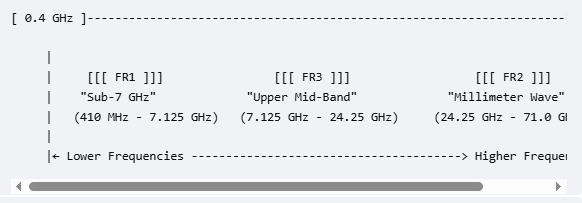

The 6G spectrum is still evolving but is expected to span roughly 7–24 GHz. It is not a single band, but a broader spectrum strategy. Designers working in FR3 will face increasing trade-offs between insertion loss and selectivity in an increasingly crowded spectrum. With dense carrier environments and minimal guard bands, high selectivity becomes critical, often driving the use of elliptic (Cauer) filter responses to mitigate adjacent-channel interference.

At these frequencies, implementation details, such as connector launches, board transitions, interposers, and antenna effects, become just as important as the filter design itself. Even small imperfections can degrade overall system performance and negate filter improvements.
