Lowpass Filters

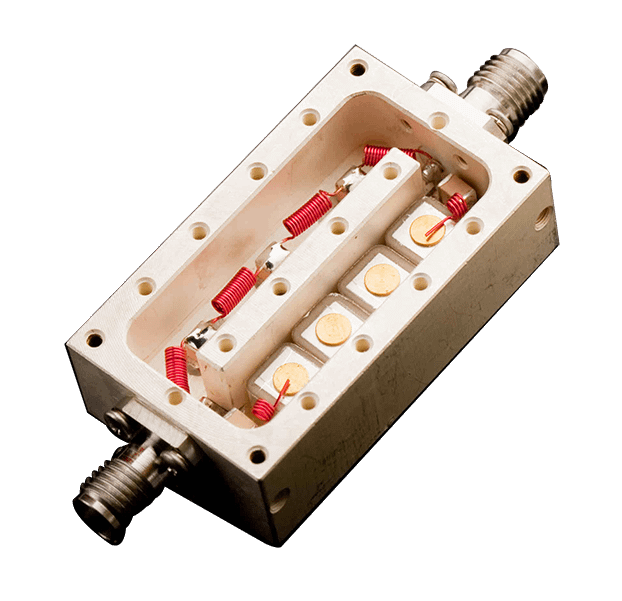

Lumped Element Filters

Spectrum Control’s superior low-loss (0.1 dB) lumped element designs are ideal for applications where size and weight are critical. Our filter engineers are experts in lumped element design techniques and employ a range of innovative methods to meet today’s demanding specifications.

• Lightweight surface-mount packages for airborne applications
• Silver plating to reduce insertion loss
• Integral shielding for improved isolation
• Strategically placed poles for maximum rejection
• Multiple topologies integrated within a single package for broad frequency coverage

Cavity Filters

One of the advantages of selecting Spectrum Control’s cavity filter designs is their industry-leading low insertion loss performance (0.1 dB) combined with high power-handling capability (up to 400 watts). Spectrum Control engineers have researched the suppression of intermodulation products in low-loss (0.1 dB), high-power (400-watt) cavity designs and, through careful process control and component selection, have developed specialized design techniques to meet our customers’ demanding requirements.

		Machined from lightweight aluminum alloys to reduce weight
		Gold and silver plating using NADCAP-controlled processes
		Proprietary techniques to minimize temperature drift to less than 1 ppm/°C
		Spectrum Control’s pseudo-elliptic designs incorporate cross-coupling to create transmission zeros, resulting in enhanced close-in rejection performance without increased insertion loss
		Unique resonator designs that increase peak power-handling capability
		Silver plating on resonators and internal cavity surfaces to achieve higher Q compared to lower-cost plating methods
		Low dielectric constant stabilizing structures designed to withstand extreme shock and vibration environments

Pseudo-elliptic designs developed by our engineers reduce the number of poles required to meet specified rejection responses, resulting in smaller filters with lower insertion loss (0.1 dB) and reduced cost. Similar techniques can also be applied to provide passband group delay equalization or to increase rejection across a specified stopband region.

Spectrum Control Low Loss (0.1 dB) Bandpass Filters, known worldwide as innovators in the RF filter marketplace, offer innovative cavity filter topologies when performance cannot be compromised. Spectrum Control cavity filter advantages stem from their high-Q designs and creative strategies to reduce size and increase power-handling robustness.

Spectrum Control Low Loss (0.1 dB) Bandpass Filters, known worldwide as innovators in the RF filter marketplace, offer innovative cavity filter topologies when performance cannot be compromised. Spectrum Control cavity filter advantages stem from their high-Q designs and creative strategies to reduce size and increase power-handling robustness.

Spectrum Control bandpass cavity filters offer ultra-low insertion loss (0.1 dB) because they have very low internal resistance, due in part to plating that is often silver. This means Spectrum Control cavity filter designs are more efficient and better able to handle radiated signal power. Spectrum Control cavity filters can handle thousands of watts; their larger physical surface area compared with lumped element filters, along with the use of air dielectrics, helps prevent arcing that could destroy a traditional lumped element filter.

Frequency	10 MHz to 3000 MHz
Size	Small
Cost	Low
Harmonics	No Spurious Passbands
Power Handling	Up to 100 Watts

With a Spectrum Control bandpass filter in a cavity topology, the solid metal housing acts like a Faraday cage, preventing EMI from leaking out and external noise from another channel from leaking in. Known for unparalleled attenuation levels, Spectrum Control cavity filters can provide massive attenuation (100+ dB), which is normally difficult to achieve due to parasitic coupling. Unlike some other filter manufacturers, Spectrum Control offers unique resonator designs, like the one pictured here, to reduce overall size and increase peak power handling.

Spectrum Control bandpass filters use unique design approaches to reduce unit size, one of which is iris coupling. Iris coupling transfers electromagnetic energy between adjacent cavities through precisely shaped apertures in the cavity walls. These apertures behave as reactive shunt inductances or capacitances, increasing coupling between resonators and shaping the overall filter response.

Spectrum’s pseudo-elliptic designs incorporate cross-coupling to create transmission zeros, resulting in enhanced rejection performance. Unlike Chebyshev or Butterworth designs, where rejection increases gradually as you move farther from the center frequency, Spectrum Control pseudo-elliptic filters use cross-coupling to force the signal to zero at specific nearby frequencies, creating a steeper skirt between the passband and the stopband.

Spectrum Control bandpass filters can incorporate a unique low-dielectric-constant stabilizing structure to reduce overall sensitivity to shock and vibration. Even microscopic shifts in resonator positions can induce microphonics or frequency modulation. If a support structure like the one shown to the left had a higher dielectric constant, even a small movement caused by heating could produce a significant shift in center frequency. These innovative structures from Spectrum Control mitigate shifting effects through three primary mechanisms: they reduce electromagnetic disruptions, add mechanical damping and stiffness, and use low-dielectric materials to reduce mass and weight, making them less likely to shift.

Spectrum engineers routinely use an integrated cleanup low-pass filter to provide extended stopband performance. An integrated cleanup low-pass filter is a complementary filtering stage whose primary role is to suppress multiple harmonic resonances and spurious tones in resonant cavity structures. Without a cleanup low-pass stage, a transmitter could leak high-power harmonics that may interfere with out-of-band receivers.

Tightly controlled conductor spacing and surface finish yield very high power-handling capability. Spectrum Control bandpass filters utilize tightly controlled conductor spacing. Cavity filters are naturally high-Q filters; by design, they store significant electromagnetic energy within their resonators or sections. The space, or distance, between the resonator and the interior cavity walls is critical to optimizing power-handling capability.

Using silver plating on our resonators and cavity interiors reduces loss and provides higher Q values than the less expensive plating methods used by other filter manufacturers. Due to its atomic structure, silver has the highest electrical conductivity of any metal. In high-Q Spectrum Control cavity filters, Q is partly defined by the ratio of stored energy to dissipated energy. Using a more conductive finish such as silver directly reduces the amount of energy lost as heat, resulting in higher Q and lower insertion loss.

Spectrum Control bandpass filters use innovative cross-coupling techniques to achieve optimal rejection by introducing electromagnetic energy between non-adjacent resonators, creating signal paths that cancel at specific frequencies. Spectrum Control also incorporates bimetallic resonators to improve temperature stability, minimizing frequency drift caused by thermal changes that can alter cavity dimensions and shift the center frequency across the band.

Ceramic Filters

Spectrum Control designers are experts in the application of multiple filter topologies, including creative mixed-topology approaches that can be integrated into a single design. High-complexity ceramic filters, such as a six-pole, 2100 MHz design with a 45/0.5 dB shape factor of less than 3:1, demonstrate exceptional performance while delivering strong value.

• Gold-plated surface-mount packages improve solderability and corrosion resistance
• Alternative coupling structures offer superior performance
• Capacitive coupling arrays provide enhanced reliability and repeatability
• Ceramic resonator designs as small as 2 mm reduce overall filter footprint
• Lead-free solders are used to comply with strict RoHS standards
• Select designs are laser-sealed using Spectrum Control’s in-house sealing methodologies

3D Glass SMT Filter

Suspended Substrate Filters

Spectrum’s low-loss suspended substrate filters enable complex transfer functions by integrating multiple filter topologies within a single package. Spectrum Control’s expert engineers optimize low-loss suspended substrate designs to meet demanding performance requirements. Suspended substrate features include:

• Expertise in combining lumped and distributed elements within a single suspended substrate design, providing enhanced unloaded Q and exceptionally low insertion loss
• Gold vias for superior isolation
• Cauer pole–placed transfer functions that yield low insertion loss performance
• Integrated cleanup low-pass filters for improved broadband performance

Butterworth vs. Chebyshev vs. Elliptic

When selecting the optimal shape factor for an RF filter, one must consider the trade-offs between different topologies.  One must consider the platform or application as leading elements in the decision to steer the design from one topology to another.  For most general RF filter requirements, shape factors are paramount; but one must consider Group Delay Variations, Passband Ripple, Transition, Loss, and other elements that could affect the RF Chain after the filter passes the receive-side waveform.

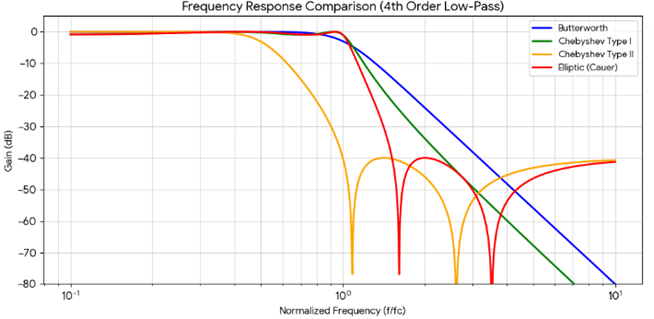

RF filter design firms like Spectrum Control, select from four main transfer functions when responding to application specific requests.  A Butterworth function appeals to requirements for a maximally flat passband.  To achieve this, poles in a Butterworth function are arranged and distributed in an evenly symmetric pattern for maximum flat amplitude.  This ripple free design does have other consequences; it generates a more gradual transition into the stopband.

Now looking “top down” at both a 5 pole Butterworth and a 5 pole Chebyshev, they both visually look the same.  Both functions consist of a normal ladder configuration, series inductor, shunt capacitor, series inductor, etc.  However, with a Butterworth function, resonators offer smooth loading with evenly placed values.  No resonator value dominates the circuit.

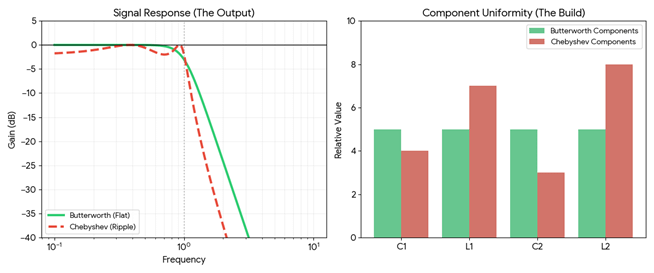

Coupling coefficients and energy distribution are uniform across the network. In a moderate 5-pole Butterworth, adjusting the load on one resonator, the effect is localized and doesn’t wildly disturb the effect of other neighboring sections. No one resonator dominates the circuit.  Even though the center element in a Butterworth function is the largest, compared to a Chebyshev function, the center element is not as inflated.

For ultra flat passband response, a Butterworth function prevails.  A Butterworth function has a gradual transition, and offers flat passband response.  Waveform distortion is minimized which makes it ideal for radar applications, targeting platforms and Electronically steered active array antenna systems.

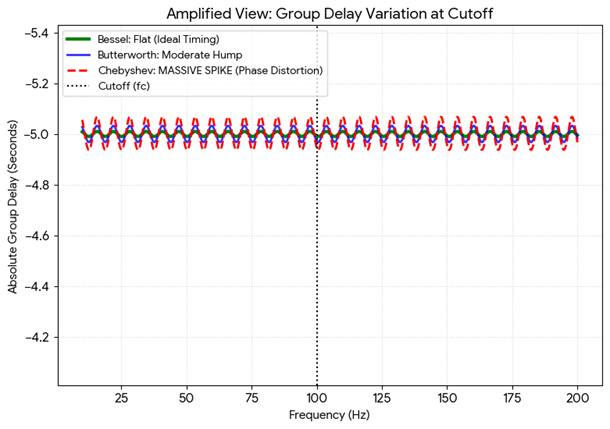

If, however, the goal is minimizing group delay variation and phase deviation, then the natural selection of functions would be a Bessel function.  Bessel function poles are positioned to minimize group delay variations over the passband.  Looking at a typical Bessel function passband, as the passband signal approaches the cutoff frequency, the filter circuit comes into view.  The capacitors and inductors come to life, storing and releasing RF energy; phase shift increases near cutoff due to reactive energy storage.  This storing and releasing effect takes a little time.  Over time, the phase of the incident waveform begins to bend.  With  Bessel function, the phase is uniform, in much the same way a well-engineered highway bends; the lanes are banked slightly so vehicles on each other’s side curve at the same rate and exit side by side as they entered.

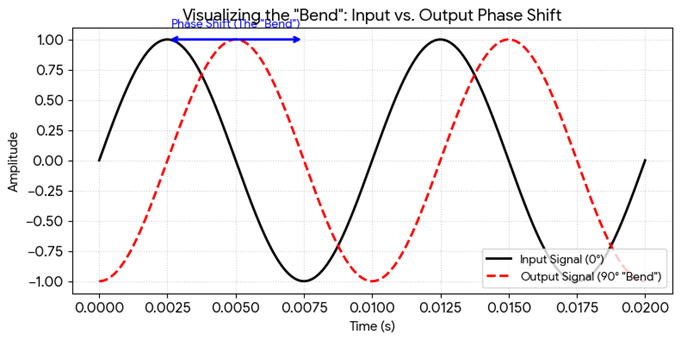

Compared to a Chebyshev, however, where sharp rejection is paramount, the curve is erratic,  the bend is sharp and the lanes aren’t uniform and synchronized.  Cars (like signals) exit the curve at different rates, no longer side by side, analogous to Phase Distortion.

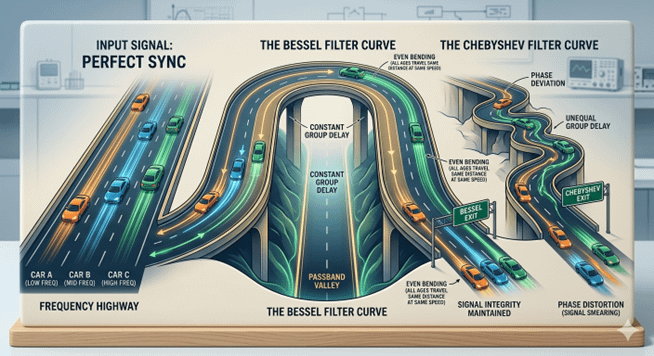

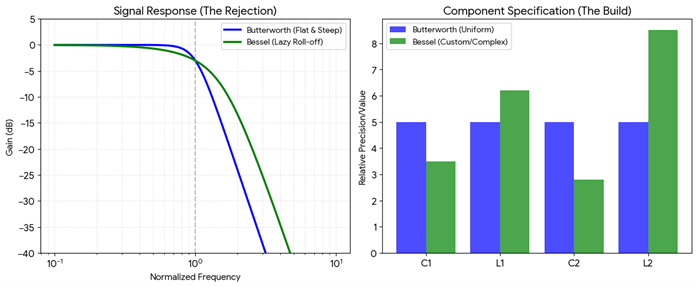

With a Bessel function however, you retain phase linearity but give up rejection. In the design, very specific non-uniform component values are incorporated to achieve that flat phase response. At the cutoff transition, the passband presents a rounder knee, and doesn’t offer as much protection against frequencies on either side of the stop and stop band.

When focusing on maximizing steep skirts, maximum rejection and sharp roll-off, a Chebyshev function is preferred. A Chebyshev shape factor is much more pronounced than  a Butterworth or a Bessel function.  Passband ripple is more pronounced as the poles are distributed nearer the cutoff frequency.  This however has an adverse effect to phase variations.  Signals near the passband edges will be delayed more so than signals in the center of the passband affecting group delay. This function is highly non-linear, with reduced pulse fidelity, causing ringing and timing distortion.  A Chebyshev exhibits a higher degree of passband ripple coupled with a rapid slope change.  However, when steep rejection is required, a Chebyshev function often prevails.

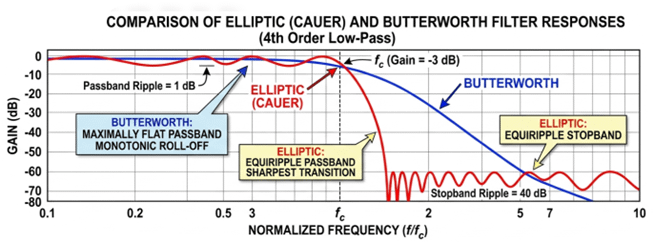

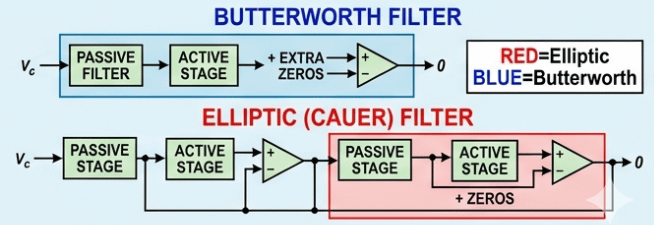

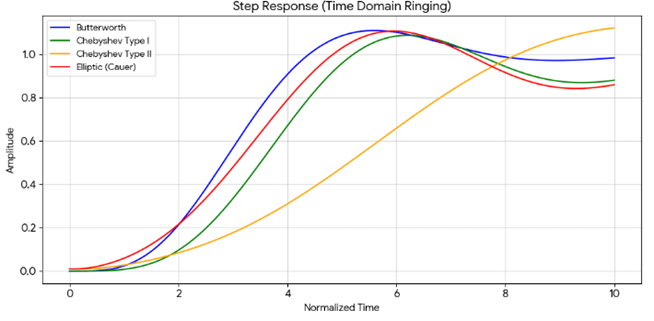

The last of the core filter transfer functions, where sharp roll-off is required centers on an Elliptic (or  Cauer) function. An elliptic offers a steep brick wall passband profile with a sharp shape factor and excellent selectivity. Elliptic functions have both passband and stopband ripple. Because an elliptic function requires high selectivity, poles tend to be crowded near the passband transition while transmission zeros are strategically placed in the stopband.  Elliptic filters introduce finite-frequency transmission zeros, enabling extremely sharp rejection for a given order.  This function also possesses a higher degree of complexity over other filter functions.  A Cauer’s phase response is inherently non-linear and probably not a good candidate for applications where group delay variations can affect the RF Chain and system level performance.

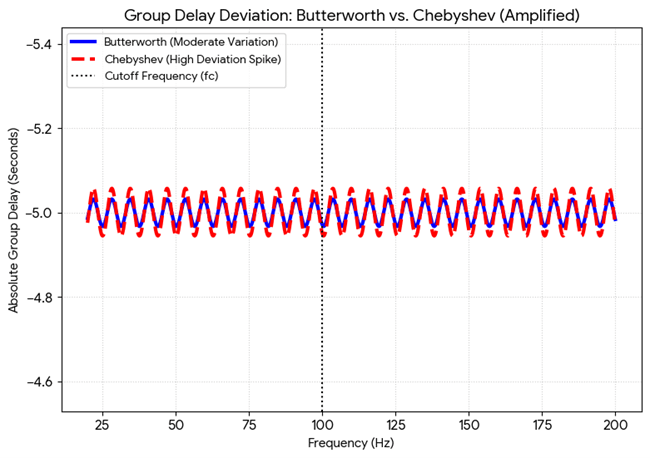

Because steep rejection is paramount, phase linearity suffers the most.  Group delay deviations increase significantly as the signal enters the band edges. For Phased Array Radar applications, this inherent phase distortion and group delay spiking makes Cauer functions not good candidates for time domain based platforms.

In conclusion, when selecting filter functions, selectivity, Insertion Loss, or rejection should not be the only elements to consider. Group Delay Variations or Phase Deviation at times can play an equal role in deciding filter functions based on intended platform application.

RF Filter Selectivity vs. Insertion Loss

In RF design, two key parameters, selectivity and insertion loss, are inherently opposed. Improving close-in rejection almost always results in increased insertion loss.

Selectivity defines how sharply a filter transitions between the passband and stopband while rejecting nearby unwanted frequencies. To achieve a steeper skirt, RF filter designers often add additional sections to the design.

Adding sections increases the attenuation rate on either side of the transition band. For example, in a Butterworth topology, each pole adds roughly 6 dB per octave (20 dB per decade) of rejection. Higher-order filters sharpen the passband, improving isolation and enabling detection of receive-side signals near or below the noise floor.

There is a trade-off when adding poles: insertion loss becomes more significant. Increasing selectivity by adding reactive elements (i.e., capacitors and inductors) introduces additional loss, as all components have finite Q and inherent resistance. Each added pole in the RF filter design improves selectivity and rejection but also increases signal loss as it passes through these elements.

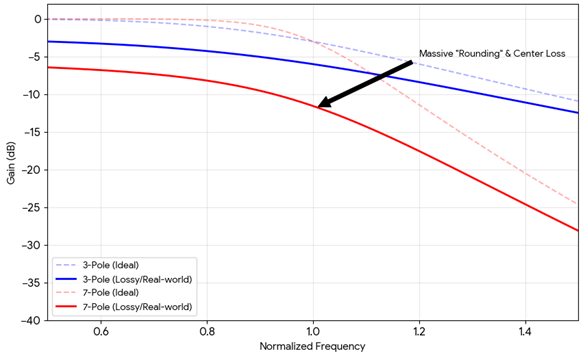

Impact of Per-Pole Loss: 3-Pole vs. 7-Pole

Higher-order designs with six or seven sections are more sensitive to component tolerances and layout parasitics than lower-order designs. Small impedance mismatches between poles can create reflections, resulting in insertion loss and passband ripple. As more sections are added to achieve sharper rejection, precise tuning becomes critical.

Because each section’s impedance depends on adjacent sections, small mismatches can degrade alignment. In a modest three-pole design, 5% mismatches may be insignificant. In six-pole or higher designs, however, smooth transitions break down, and reflections from mismatches can redirect power back toward the source instead of to the output. Higher-order designs, such as Chebyshev topologies, require tight tolerance control of each element.

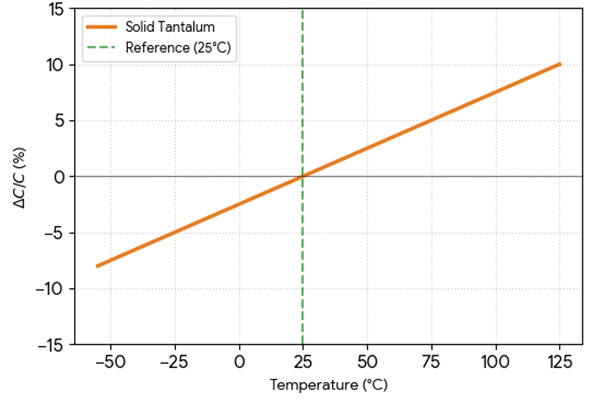

If a capacitor deviates from its expected value due to temperature variation or tolerance, the flat passband can develop ripple. Moreover, high-frequency parasitics (e.g., substrate effects, trace lengths) can shift the center frequency, creating challenges in identifying compromised components within the RF chain.

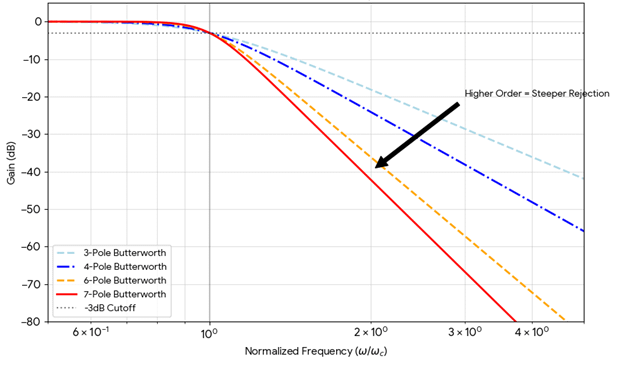

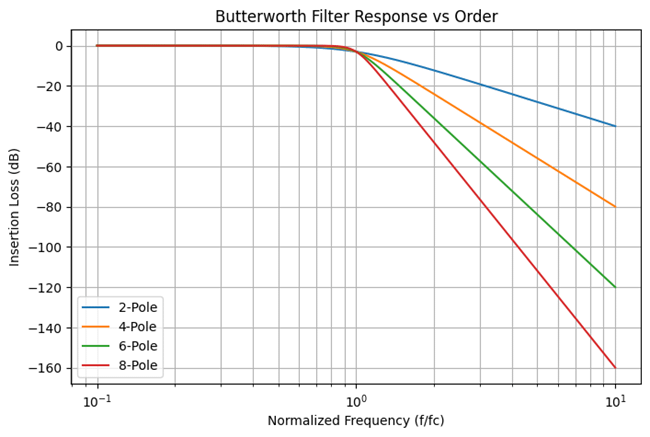

Effect of Filter Order (Poles) on Rejection & Roll-off

Even small mismatches between poles, such as impedance variations from 47 to 53 ohms across the band, can generate reflections toward the source. Adding more poles increases this effect and degrades return loss. Losing even 5% of incident power can create standing waves and passband ripple through constructive and destructive interference. Dissipated power becomes heat within the resonator structure, further amplifying thermally induced variations.

Different filter designs prioritize parameters differently. Butterworth topologies typically offer lower insertion loss and a flat passband but less selectivity. Chebyshev topologies provide sharper skirts but introduce passband ripple. Elliptic topologies deliver the highest rejection but can produce ripple in both the passband and stopband.

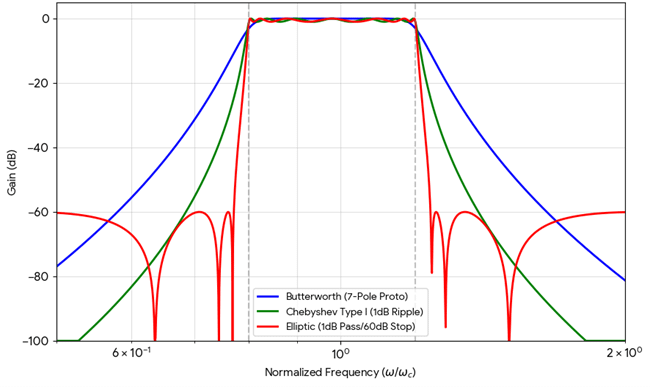

Magnitude Response: 7-Pole Bandpass Comparison

Why Group Delay Matters in RF Filter Design

Group delay is critical because it determines the timing, period, and phase accuracy of incident signals and waveforms. While an RF bandpass filter is primarily designed to select the operational band and pass only the desired portion of a waveform, it must also preserve waveform integrity. To maintain spectral purity, all elements in the RF chain should exhibit consistent time delay, or a linear phase response. If a bandpass filter does not adequately control group delay, signals can disperse or distort, compromising downstream performance.

Distorted pulses may overlap, making it difficult for receivers to separate and analyze individual signals. Variations in group delay can cause widening, spreading, or blending of signals, particularly when multiple channels experience differing phase responses. This can lead to inaccurate measurements, degraded analysis, and increased bit error rates, making it harder to distinguish where one data packet ends and another begins. When signals reach the analog-to-digital converter, this distortion can impair accurate edge detection and signal interpretation.

In radar systems, precise timing is essential for accurate distance measurement. Group delay variation can distort pulses and reduce waveform fidelity. In modern phased-array radar systems, phase is used to steer beams, making flat group delay critical for accurate targeting and frequency tracking. While high-Q, high-selectivity filters are often preferred, designs such as Chebyshev filters can introduce greater group delay variation near the 3 dB points. In contrast, Bessel filters provide the flattest group delay response among common filter types, making them ideal for applications requiring minimal waveform distortion.

Relationship Between Phase and Temperature in RF Filters

High-Q RF filters, such as ceramic and low-loss cavity designs, are sensitive to temperature variations and often require thermal conditioning to maintain stability under all conditions. These filters are frequently used in group-delay-sensitive, phase-critical RF chains where phase linearity is essential (Low Phase Noise Amplifiers, Spectrum Control).

Technical Questions

How can I achieve 100 dB rejection in a wideband bandpass filter?

To achieve very high levels of rejection, shielding becomes a dominant design factor. At these levels, signals can couple around the filter, through unintended paths in the package or housing, rather than through it. Without proper shielding, connectors can behave more like antennas than controlled interfaces.

Achieving ~100 dB rejection typically requires 10 or more poles, depending on the filter type. An alternative to adding many resonators is the use of transmission zeros through cross-coupling. This technique introduces out-of-phase signal paths that cancel at specific frequencies, enabling high rejection with a more efficient design.

  Higher order filter design

  Use transmission zeros by way of cross-coupling

  Optimize pathway shielding and isolation

What are the pros and cons of lumped element versus cavity RF filters?

In high-reliability, high-performance applications, such as aerospace, defense, space, and critical telecom, lumped-element filters are widely used. These filters use discrete inductors and capacitors and typically cover HF through S-band (approximately 10 MHz to 3 GHz).

At lower frequencies, wavelengths are relatively long, making distributed-element designs like cavity filters physically larger, as they must be a fraction of the operating wavelength. As a result, lumped-element filters are often preferred in these ranges for their more compact size.

Lumped-element filters, built with discrete capacitors and inductors, are much smaller than the operating wavelength, enabling a compact footprint compared to cavity designs. In contrast, distributed-element filters such as cavities can exhibit spurious or harmonic passbands due to their reliance on physical dimensions relative to wavelength. Because lumped-element designs use standard off-the-shelf components and require less complex manufacturing, they are typically lower cost and highly customizable.

Cavity filters, however, offer industry-leading low insertion loss (as low as ~0.1 dB) and high power-handling capability. Their high-Q characteristics enable very narrow fractional bandwidths and steep skirts, allowing strong attenuation just outside the passband. In general, lumped-element filters are preferred for compact, lower-frequency applications, while cavity filters are better suited for higher-frequency, high-power, and ultra-low-loss requirements where performance outweighs size and cost.

	Lumped Element	Cavity Filters
Size
Insertion Loss
Rejection
Selectivity
Power Handling
Price
Q-Factor

Why is group delay so important in RF filter designs?

Group delay variation describes how different frequency components of a signal are delayed through an RF filter or system, directly affecting waveform timing fidelity. While an RF bandpass filter is designed to pass the desired frequency band, it must also preserve waveform integrity by ensuring signals do not arrive at different times. To maintain spectral purity, all components in the RF chain should exhibit a consistent, linear phase response.

If a bandpass filter exhibits significant group delay variation, signals can disperse or become distorted, compromising downstream waveform integrity. Distorted pulses may overlap, making it difficult for receivers to separate and analyze each signal. In filters where group delay is not a primary design parameter, this non-linear response can make managing the waveform significantly more challenging.

Variations in group delay can cause signals to widen, spread, or blend when components experience differing phase responses, leading to inaccurate measurements and analysis. They can also degrade bit error rate, making it difficult to distinguish where one data packet ends and another begins. Pulses may overlap, and when they reach the analog-to-digital converter, distortion can impair accurate edge detection. In radar systems, where precise timing is critical for measurement, group delay variation can distort pulses and degrade waveform fidelity.

In modern phased-array radar systems, phase is used to steer beams across the field of view. Maintaining flat group delay is critical to ensure accurate beam pointing and proper response to frequency variations across the operating environment.

When selecting a bandpass filter, high Q and selectivity often take priority. However, high-selectivity designs such as Chebyshev filters can introduce rapid phase variation near the 3 dB points, resulting in increased group delay ripple. Poles near the passband edges can effectively “pull” on the phase of the incident signal. In contrast, Bessel filters provide the flattest group delay response among common filter types.

How do vibration and shock affect the phase noise of a filter?

Vibration-induced phase modulation can degrade signal phase stability, as both random and sinusoidal vibrations become part of the filter’s environment. In applications such as missiles, aircraft, or launch vehicles, microphonic effects can alter a filter’s phase response. Mechanical vibration can cause air-wound coils to move, components to shift or loosen, and internal resonances to develop, all of which introduce noise, spurs, or target blurring in radar systems.

These effects can be mitigated through proper design and assembly practices, including securing inductors with adhesives, applying potting materials, performing FOD inspections, locking threaded elements, and incorporating damping structures to reduce sensitivity to vibration and shock.

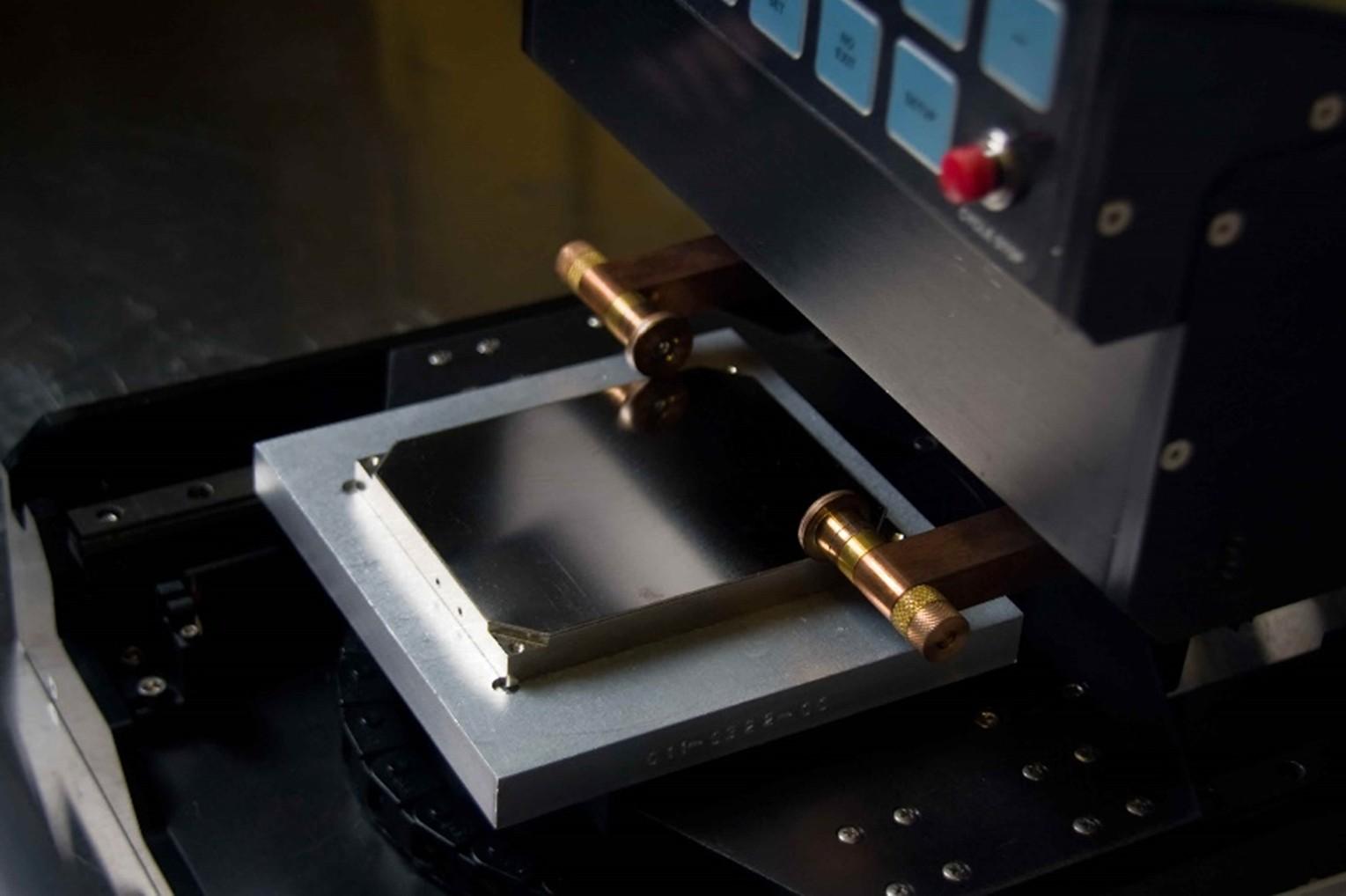

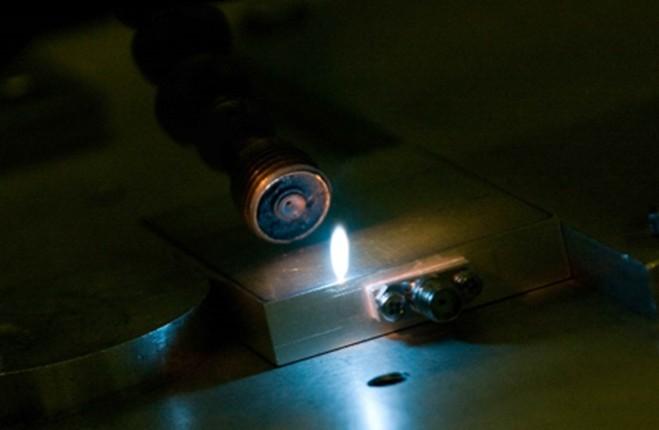

When should I hermetically seal an RF filter?

Proper engineering determines how susceptible an RF filter is to moisture and humidity. In sea-based environments, where salt, fog, and water spray can cause corrosion, basic gaskets or epoxy seals may not provide sufficient protection. Fuel and petroleum exposure can also degrade polymer-based seals.

**Hermetic sealing, such as parallel-gap seam sealing or laser welding, offers robust protection against harsh environments and pressure extremes, including altitude and deep-sea conditions, where enclosure deformation can detune the filter. It is especially recommended for high-humidity, salt-laden, or downhole applications.
