2.9mm | Male/Female | Inner
PRODUCT P/N: 8141A

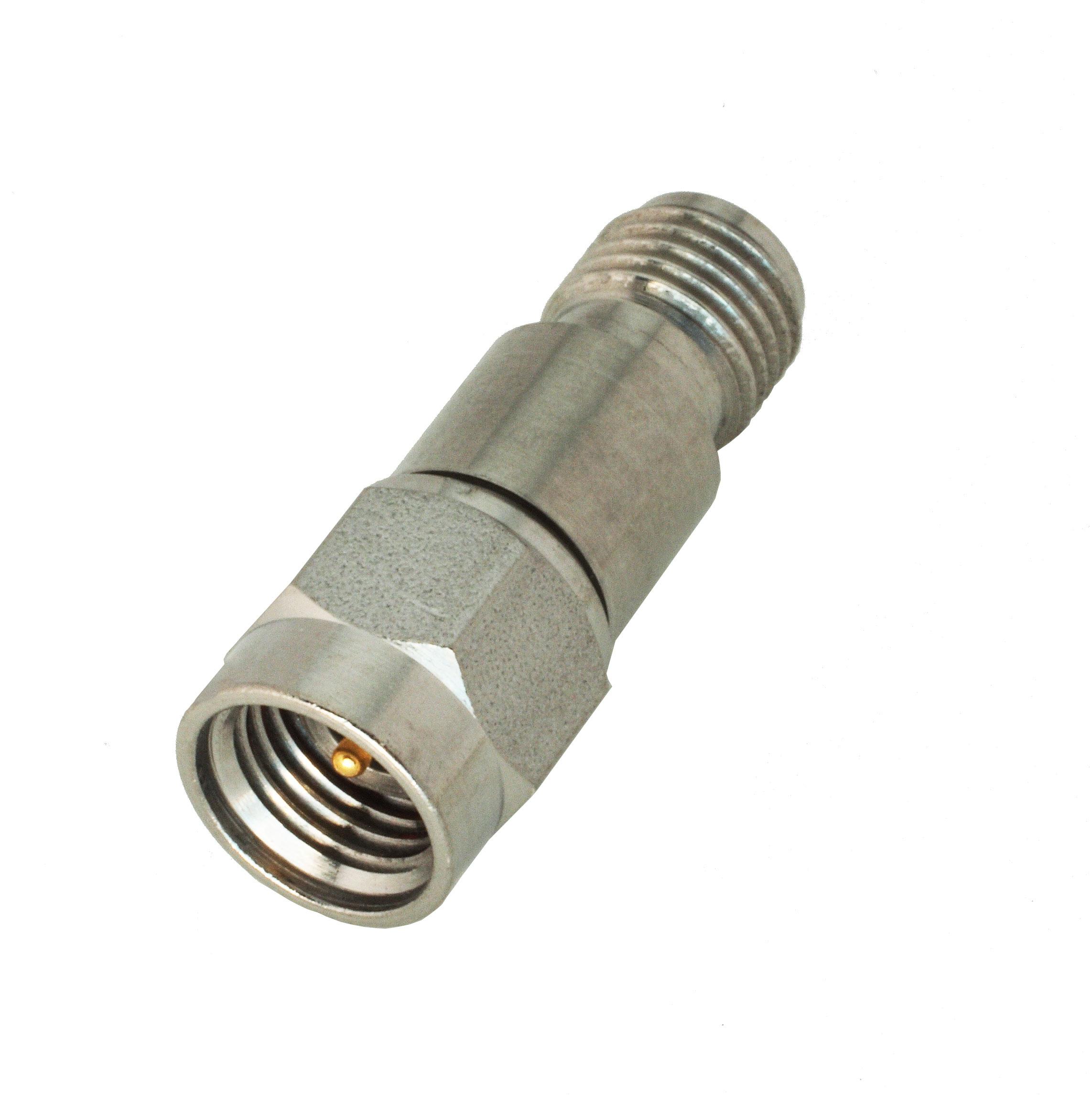

Spectrum Control's Inmet 2.9mm male/female inner DC block for general applications have a frequency range of 10 MHz - 40 GHz, 200V max. rating and 50 Ohm impedance. Model 8141A DC blocks passivated stainless steel connectors that mate with SMA and 3.5mm connectors.
Product Specifications
Electrical
| Frequency Range (GHz) | 0.01 - 40 |
| VSWR (max) | 1.45:1 |
| Voltage | 200 |
| Insertion Loss (dB) | 0.75 |
Physical
| Block Type | Inner |
| Connector Type | 2.9mm |
| Connector Configuration | Male/Female |
| Item Length (mm) | 21.84 |
| Item Diameter (mm) | 7.11 |
| Brand Name | Inmet |
