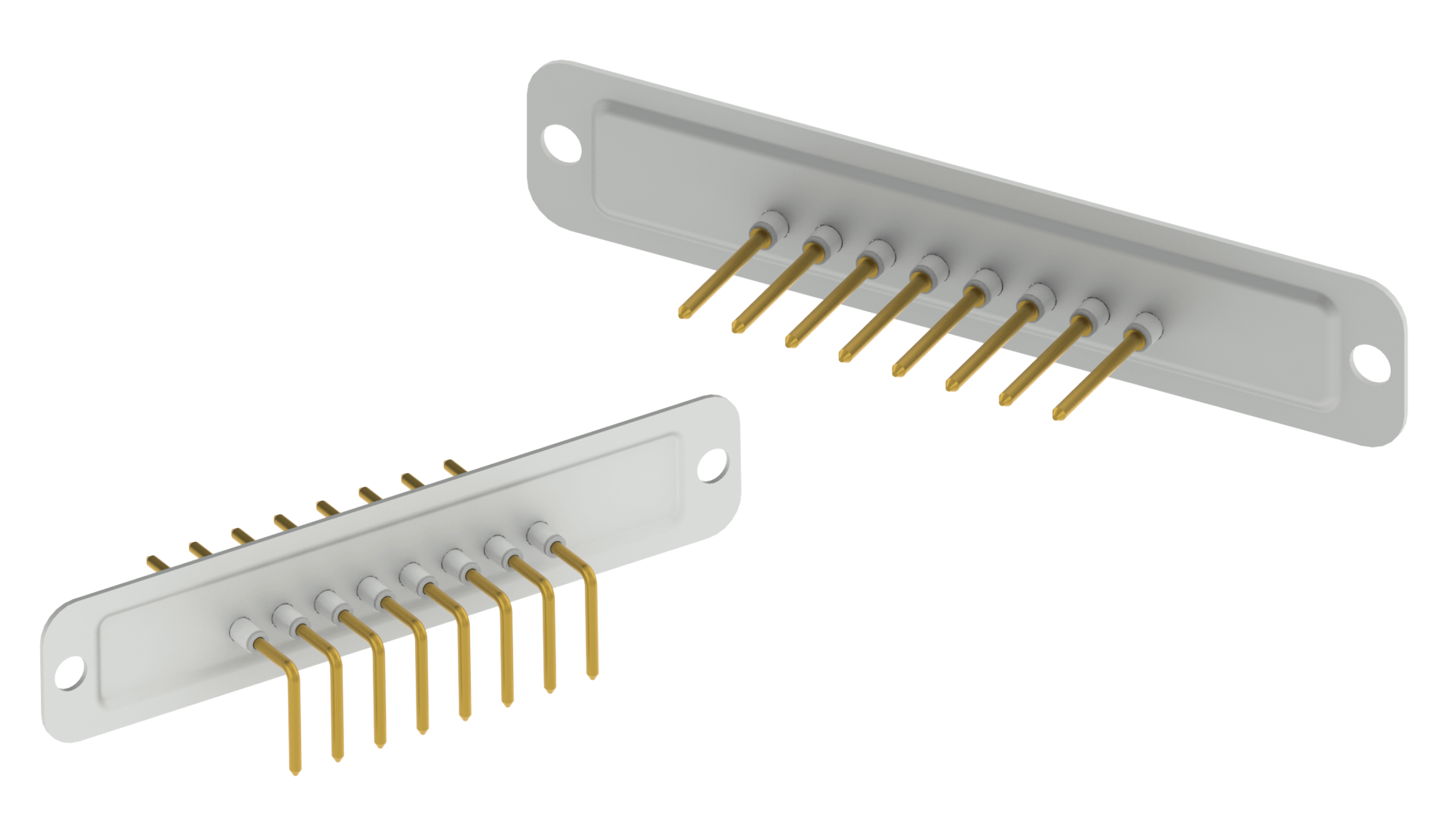

EMI Filter Power Plate

3.96mm Pitch Bolt-in EMI Filter Series

EMI Filtering for High-Current Power Interfaces

Spectrum Control Filter Power Plates provide drop-in EMI suppression for high-current power interfaces, integrating feedthrough filtering into a rugged bulkhead design.

Compatible with industry-standard 3.96 mm (.156") pitch power connectors, they reduce conducted emissions without system redesigns.

High-current, compact power plates deliver connector-level EMI filtering for high-reliability applications, with patented coining on larger sizes for enhanced mechanical stability.






Design Advantages

Designed for demanding power applications, Filter Power Plates combine high-current capability, effective EMI filtering, and rugged construction in a compact, drop-in solution.

Feature Benefit
3.96 mm (.156") pitch compatibility Drop-in filtering solution for industry-standard power interfaces
Up to 7.5 A current handling Supports higher-current power distribution applications
EMI suppression from 5 MHz to 1 GHz Reduces conducted emissions at the source
Integrated connector-level filtering Eliminates need for discrete PCB filtering
Up to 12 filtered lines per plate Flexible multi-line configurations
Bolt-in bulkhead mounting Simplifies installation and grounding
RoHS-compliant options available Simplifies installation and grounding

Application & Performance Guide

  • Power supply interfaces

  • Internal subsystem power distribution

  • Chassis bulkhead filtering

  • Aerospace and defense electronics

  • VPX and modular electronics

  • Industrial motor drives

  • Test and instrumentation systems

  • Medical electronic equipment

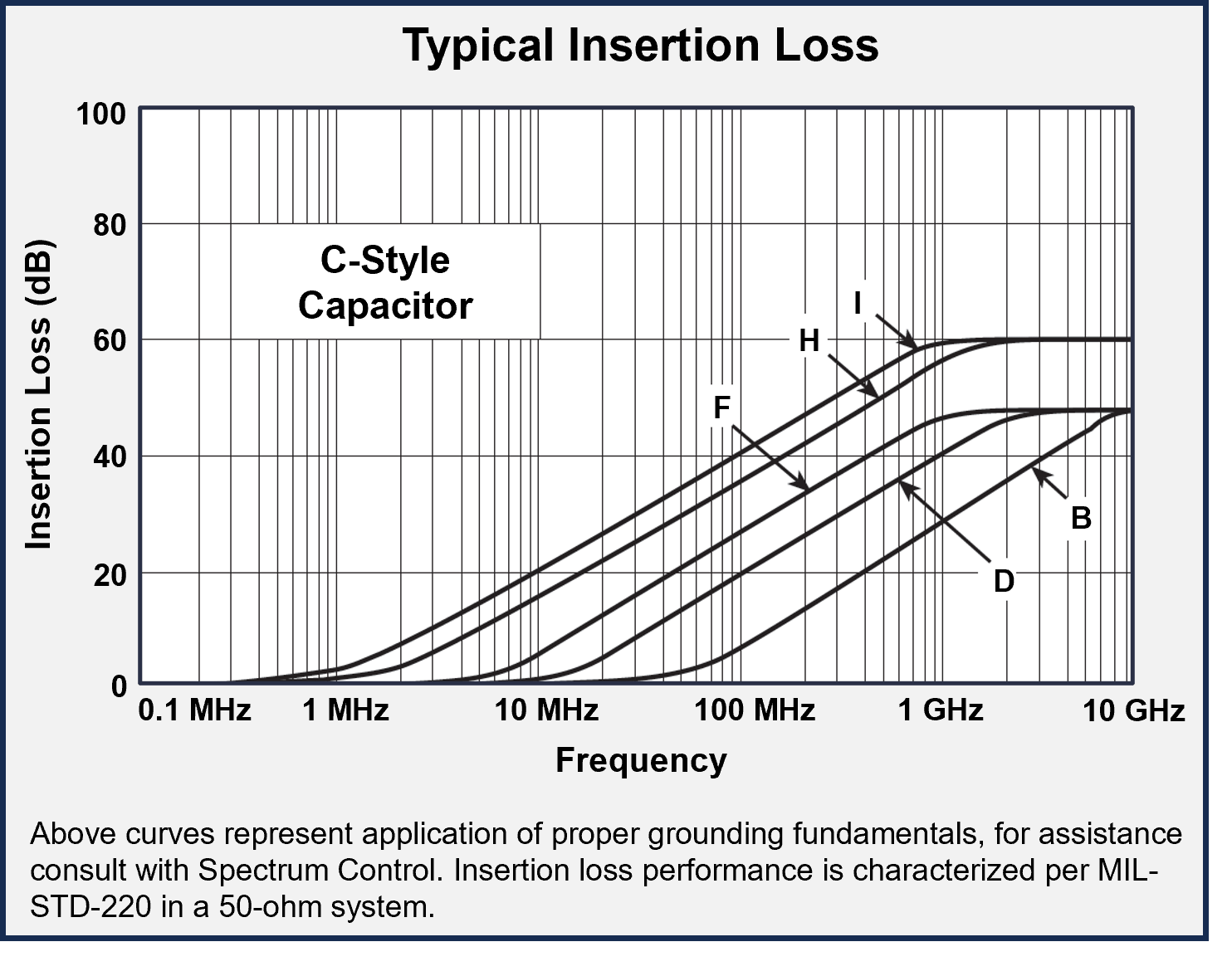

Filter Value Guide

Sensitive analog electronics 470 pF D
General power rail filtering 1000 pF F
Switching power supplies 2500 pF H
Max. EMI suppression/bandwidth 4000 pF I




For selective line filtering, custom mechanical configurations, or materials not shown, contact Spectrum Control for review and a custom part number.

Why Engineers Choose Spectrum Control

Spectrum Control combines decades of connector-level EMI expertise with high-current filtered interconnect solutions designed for demanding aerospace and defense applications. Configurable platforms, custom filtering capabilities, rugged designs, and responsive engineering support help customers solve complex EMI challenges while simplifying integration and accelerating development.

Custom filtering, selective loading, alternate configurations, and application-specific solutions.

  • Application engineering assistance
  • Custom filter solutions
  • Qualification support
  • EMI mitigation guidance
  • CAD models and configurator access
Design Challenges Traditional Solution Spectrum Control Solution
EMI failures late in qualification PCB redesign Drop-in filtered interface
Ferrites saturate under power current Reduced effectiveness Stable capacitor-based filtering
Limited PCB real estate Large discrete filters Connector-level integration
Complex filter installation Multiple components Single integrated assembly
Harness redesign risk Mechanical changes Maintains existing interface geometry
