N-Type | Male/Male | Inner
PRODUCT P/N: AA-8052

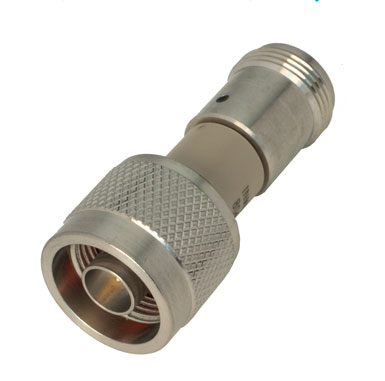

Spectrum Control's Inmet N-type male/male inner DC block for general applications have a frequency range of 10 MHz - 18 GHz, 200V max. rating and 50 Ohm impedance. Model AA-8052 DC blocks passivated stainless steel connectors that mate with MIL-STD-348 connectors.
Product Specifications
Electrical
| Frequency (GHz) | 0.01 - 18 |
| VSWR (max) | 1.35:1 |
| Voltage | 200 |
| Attenuation Level (dB) | 0.60 |
Physical
| Block Type | Inner |
| Connector Type | N-Type |
| Connector Configuration | Male/Male |
| Item Length (mm) | 46.5 |
| Item Diameter (mm) | 14.2 |
| Item Weight (mm) | 69.7 |
| Brand Name | Inmet |
