SMA | Hex Body-Male/Female | Outer
PRODUCT P/N: 8519A

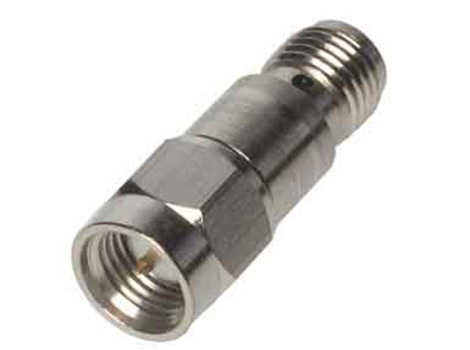

Spectrum Control's Inmet hex-body male/female SMA outer DC block for general purpose applications have a frequency range of 2 GHz - 3 GHz, 100V max. rating and 50 Ohm impedance. Model 8519A DC blocks have passivated stainless steel connectors that mate with MIL-STD-348 connectors.
Product Specifications
Electrical
| Frequency (GHz) | 2 - 3 |
| VSWR (max) | 1.15:1 |
| Voltage | 100 |
| Attenuation Level (dB) | 0.2 |
Physical
| Block Type | Outer |
| Connector Type | SMA |
| Connector Configuration | Hex Body-Male/Female |
| Item Length (mm) | 27.9 |
| Item Diameter (mm) | 10.62 |
| Item Weight (mm) | |
| Brand Name | Inmet |
