SMA | Female | 2.4 - 7.125 GHz
PRODUCT P/N: 8401-16E

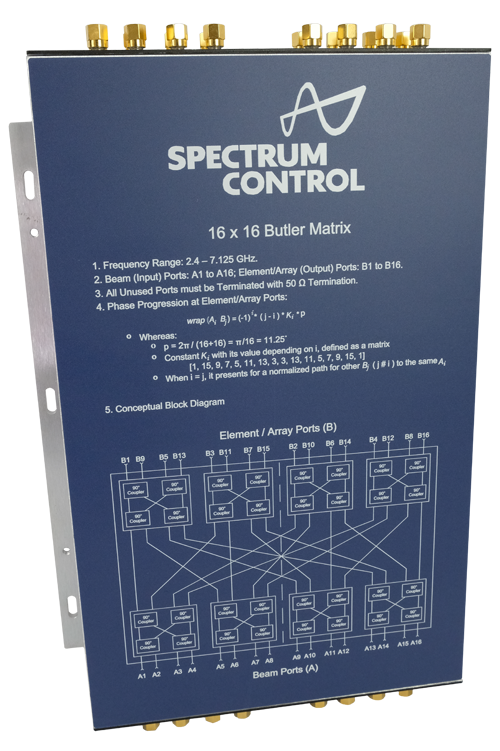

The 8401-8 Series Butler matrix is a high performance 8x8 Butler matrix, covering several frequency bands from 0.5 to 7.25 GHz. It can transfer the signal reciprocally from any of 8 input ports to any of 8 output ports, with high phase accuracy, amplitude balance, low insertion loss, and high port-to-port isolation.
Product Specifications
Electrical
| Frequency Range | 2.4 - 7.125 GHz |
| Power | 5 W |
| Insertion Loss (dB) | 14.5 typ / 17 max 17 typ 17 typ / 20 max |
| Isolation (dB) | 17 typ / 12 min 10 typ 17 typ / 10 min |
Physical
| Connector Type | SMA |
| Connector Configuration | Female |
| Type | 16x16 |
| Brand Name | Weinschel |
