2.4mm | Male/Female | Outer
PRODUCT P/N: 8178

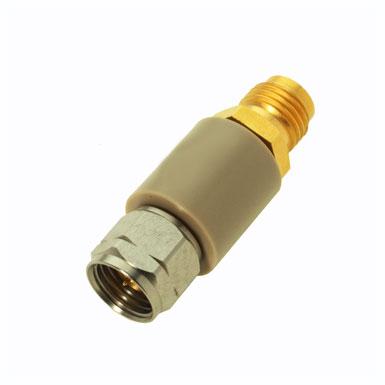

Spectrum Control's Inmet 2.4mm DC blocks for general purpose have a capacitor in-series with the center conductor which prevents the flow of audio and direct current (DC) frequencies while offering minimum interference to RF signals up to 50GHz. Model 8178 is an outer standard product with male/female connector configuration and 75V max. rating and 50 Ohm impedance.
Product Specifications
Electrical
| Frequency (GHz) | 0.1 - 50 |
| VSWR (max) | 1.75:1 |
| Voltage | 75 |
| Attenuation Level (dB) | 1.5 |
Physical
| Block Type | Outer |
| Connector Type | 2.4mm |
| Connector Configuration | Male/Female |
| Item Length (mm) | 28.6 |
| Item Diameter (mm) | 10.16 |
| Item Weight (mm) | |
| Brand Name | Inmet |
