2.9mm | Male/Female | Outer
PRODUCT P/N: 8142

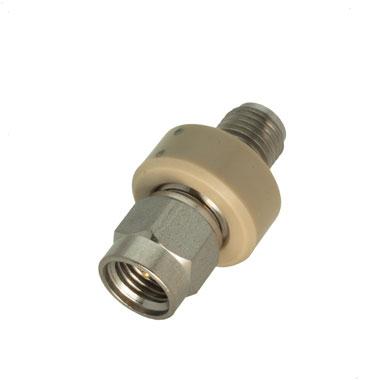

Spectrum Control's Inmet male/female 2.9mm outer DC block for general purpose have a frequency range of 10 MHz - 40 GHz, 200V max. rating and 50 Ohm impedance. Model 8142 DC blocks have a capacitor in-series with the outer conductor.
Product Specifications
Electrical
| Frequency (GHz) | 0.01 - 40 |
| VSWR (max) | 1.45:1 |
| Voltage | 200 |
| Attenuation Level (dB) | 0.5 |
Physical
| Block Type | Outer |
| Connector Type | 2.9mm |
| Connector Configuration | Male/Female |
| Item Length (mm) | 21.84 |
| Item Diameter (mm) | 12.7 |
| Item Weight (mm) | 5.5 |
| Brand Name | Inmet |
