2.9mm | Male/Female | Inner-Outer
PRODUCT P/N: 8062A

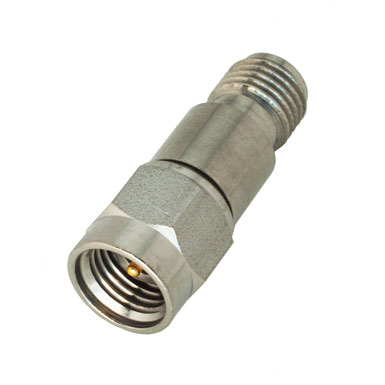

Spectrum Control's Inmet male/female 2.9mm inner-outer DC block for general purpose applications have a frequency range of 10 MHz - 26.5 GHz, 200V max. rating and 50 Ohm impedance. Model 8062A DC blocks passivated stainless steel connectors that mate with MIL-STD-348 connectors.
Product Specifications
Electrical
| Frequency (GHz) | 0.01 - 26.5 |
| VSWR (max) | 1.35:1 |
| Voltage | 200 |
| Attenuation Level (dB) | 0.75 |
Physical
| Block Type | Inner-Outer |
| Connector Type | 2.9mm |
| Connector Configuration | Male/Female |
| Item Length (mm) | 21.84 |
| Item Diameter (mm) | 12.7 |
| Item Weight (mm) | |
| Brand Name | Inmet |
