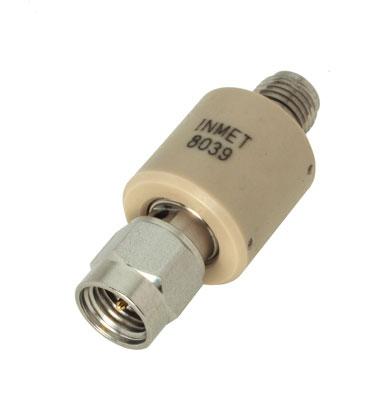

SMA | Male/Female | Inner-Outer
PRODUCT P/N: 8039
Spectrum Control's Inmet SMA male/female inner-outer DC block for general applications have a frequency range of 10 MHz - 18 GHz, 200V max. rating and 50 Ohm impedance. Model 8039 DC blocks passivated stainless steel connectors that mate with MIL-STD-348 connectors.
Product Specifications
Electrical
| Frequency (GHz) | 0.01 - 18 |
| VSWR (max) | 1.35:1 |
| Voltage | 200 |
| Attenuation Level (dB) | 0.5 |
Physical
| Block Type | Inner-Outer |
| Connector Type | SMA |
| Connector Configuration | Male/Female |
| Item Length (mm) | 30.5 |
| Item Diameter (mm) | 12.7 |
| Item Weight (mm) | 8.2 |
| Brand Name | Inmet |
Distributor Inventory
| Distributor | Stock |
|---|---|
| TTI - Inmet | 0 |
| RFMW - Inmet | 57 |
