Pi circuit | 3000 pF | M15733/61-0003
PRODUCT P/N: 51-702-020

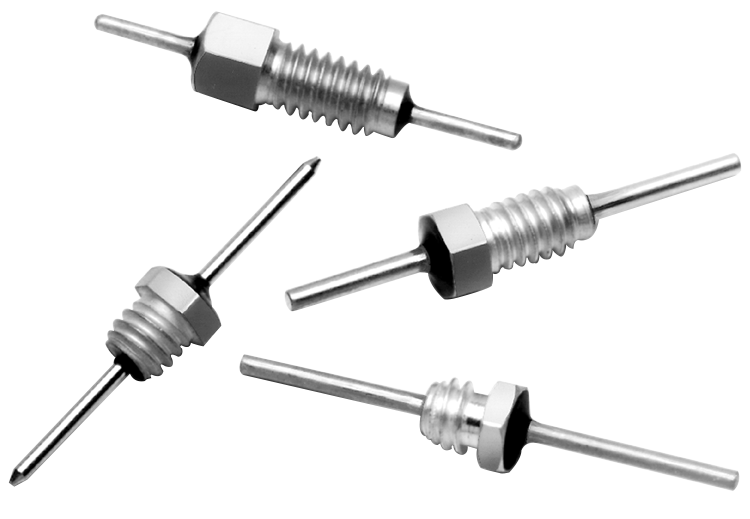

M15733/61-0003, 5/16-32 thread size, Pi circuit, resin sealed bolt-in EMI filter easily mounted in a tapped hole or through-hole with supplied nut and lock-washer. Its rugged case with resin seals at both ends provides excellent environmental protection. Primarily used in filtering signal/data lines, and DC power lines.
Product Specifications
Electrical
| Capacitance Value | 3000 pF |
| Filter Circuit | Pi |
| Rated Current (A) | 25 |
| Rated Voltage at 125°C | 500 VDC/350 VAC |
| Specialty | MIL-PRF-15733 |
Physical
| Hex Width (in) | 0.375 |
| Length - Hex to End of Lead (in) | 0.750 |
| Length - Top Lead to Bottom Hex (in) | 0.562 |
| Terminal Diameter (in) | |
| Thread Size | 5/16-32 |
| Specialty | MIL-PRF-15733 |
