SMA | Female | DC-40 GHz
PRODUCT P/N: FD7008

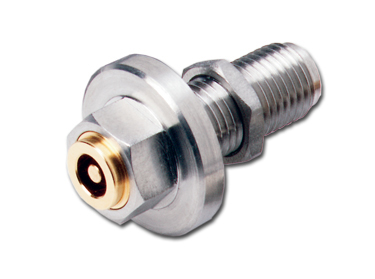

Planar blind mate, SMA, female, pressurized coaxial connector with operating frequency range DC to 40 GHz. Planar connectors are typically used as a pair or set which is comprised of two connector subassemblies that have a common mating interface. Connectors are ideal for instruments, cables, components and accessories have superior electrical performance than what would be obtained by additional adapters.
Product Specifications
Electrical
| Frequency (GHz) | DC-40 |
| Peak Power (kW) | 0.50 |
| Attenuation Level (dB) | 1.5 |
| VSWR (max) | 1.65:1 |
Physical
| Connector Type | SMA |
| Connector Configuration | Female |
| Electrical Length | |
| Type | Planar Blind Mate |
| Brand Name | Weinschel |
