SMA | Female/Female | Adjustment knob | 290°
PRODUCT P/N: 980-4K

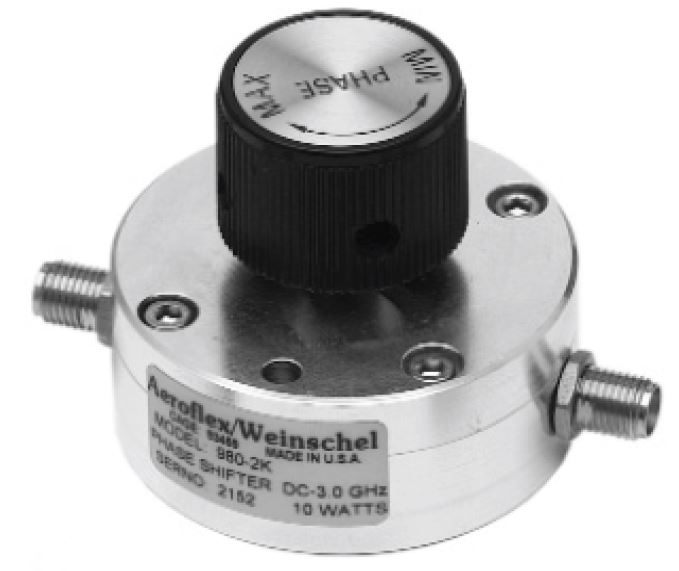

Weinschel brand phase shifter with frequency to DC-12 GHz, 10-watt average power, and 50 Ohms. It features an SMA female/female connector type, adjustment knob, attenuation of 1 dB, and VSWR of 1.30:1 (max). Incremental phase shift is 290° and insertion phase of 1200°.
Product Specifications
Electrical
| Impedance (Ohms) | 50 |
| Frequency (GHz) | DC-12 |
| Incremental Phase Shift | 290° |
| Insertion Phase (Typical) | 1200° |
| Average Power (Watts) | 10 |
| Attenuation Level (dB) | 1 |
| VSWR (DC - 3 GHz) | 1.30:1 |
| VSWR (3 - 7 GHz) | 1.30:1 |
| VSWR (7 - 12 GHz) | 1.60:1 |
Physical
| Specialty | Adjustment knob |
| Connector Configuration | Female/Female |
| Connector Type | SMA |
| Weight (g) | - |
| Operating Temperature Range (Deg C) | - |
