SMA | 0.03 - 12 GHz | Pulsed

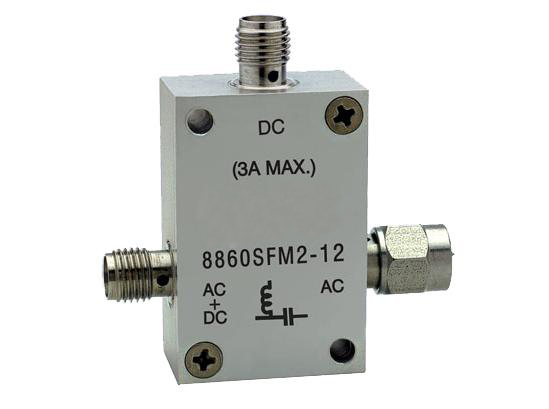

PRODUCT P/N: 8860SFM2-12
Spectrum Control's Inmet bias tees combine quality and performance in a standard three-port network specific for pulsed applications. Inmet bias tees are manufactured for maximum performance and minimal disruption.
Product Specifications
Electrical
| Frequency (GHz) | 0.03 - 12 |
| Attenuation Level (dB) | 3 |
| RF to Bias Port Isolation (dB) | 10 |
| Current Amps | 3 |
| VSWR (max) | 2.20:1 |
| Voltage | 100 |
| Average Power (Watts) |
Physical
| Connector Type | SMA |
| Item Length (in) | 1.77 |
| Connector Configuration (AC + DC) | Female |
| Connector Configuration (AC) | Male |
| DC Input Connector | SMA Female |
| Brand Name | Inmet |
