3.5mm | DC-22 GHz | 50 W | 30 dB | Male/Male

PRODUCT P/N: 86-30-22

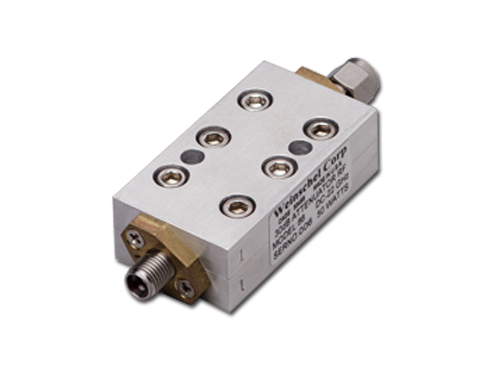

Spectrum Control's Weinschel brand, 50-watt power fixed attenuator with male/male 3.5mm connector, 30 dB attenuation at 22 GHz. These products are conduction cooled and have a bi-directional design with precision injection molded connectors. RoHS compliant.

Request A Quote

Specifications

Product Specifications

DOWNLOAD:
86 Data Sheet

Electrical

Frequency (GHz)	DC-22
Average Power (Watts)	50
Attenuation Level (dB)	30
Impedance (Ohms)	50
VSWR (max)	1.30:1

Physical

Connector Type	3.5mm
Connector Configuration	Male/Male
Type	Medium Power/Conduction Cooled
Specialty	Bi-directional
Brand Name	Weinschel
