SMA | Female | 0.5 - 6 GHz
PRODUCT P/N: 8401-8-6

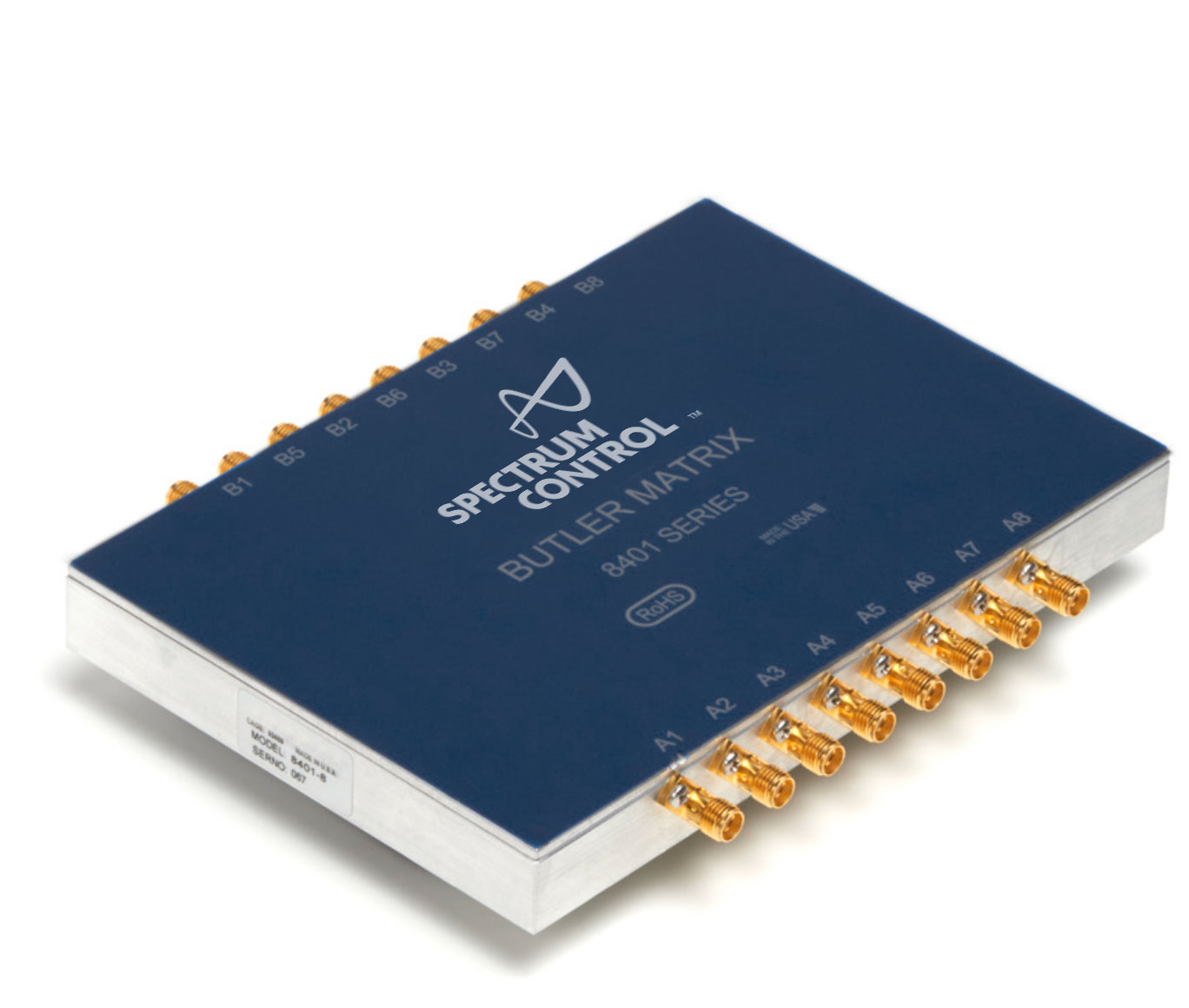

The 8401-8-6 Butler matrix is a high-performance 8x8 Butler matrix, covering several frequency bands from 0.5 to 6.0 GHz. It can transfer the signal reciprocally from any of 8 input ports to any of 8 output ports, with high phase accuracy, amplitude balance, low insertion loss, and high port-to-port isolation.
Product Specifications
Electrical
| Frequency Range | 0.5 - 6 GHz |
| Power | 5 W |
| Insertion Loss (dB) | 10 typ / 14 max 12 typ / 17 max |
| Isolation (dB) | 20 typ / 12 min |
Physical
| Connector Type | SMA |
| Connector Configuration | Female |
| Type | 8x8 |
| Brand Name | Weinschel |
Distributor Inventory
| Distributor | Stock |
|---|---|
| RFMW - Weinschel | 2 |
| TTI - Weinschel | 0 |
| Mouser Electronics - Weinschel | 0 |
Inventory is provided by our distribution partners and may change.
If stock is unavailable, please continue to the distributor page to obtain a quote and current lead-time information.
