2.92mm | Female | DC-40 GHz
PRODUCT P/N: 1534

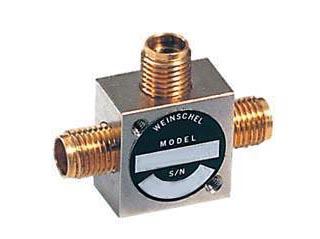

2.92 mm, female resistive power splitter with a frequency to DC-40 GHz and nominal insertion loss of 6.0 dB. This Weinschel Brand resistive power splitter is intended for RF and wireless applications in which one of the two outputs is included in a leveling loop or is used as a reference in a ratio system, for the purpose of providing an output signal whose source impedance is essentially matched to 50Ω.
Product Specifications
Electrical
| Frequency (GHz) | DC-40 |
| Average Power (Watts) | 1 |
| Amplitude Tracking (dB) | 0.5 |
| Nominal IL (dB) | 6 |
| Phase Tracking | < 4 deg |
Physical
| Connector Type | 2.92mm |
| Connector Configuration | Female |
| Brand Name | Weinschel |
