Adjustable-slope gain-equalizer technology suitable for flattening frequency response in Q-band of 40 to 50 GHz.
New technology provides fully adjustable Q-band equalizers of
linear, parabolic and ripple-removal types and allows for fixed as well as field adjustable attenuation control.

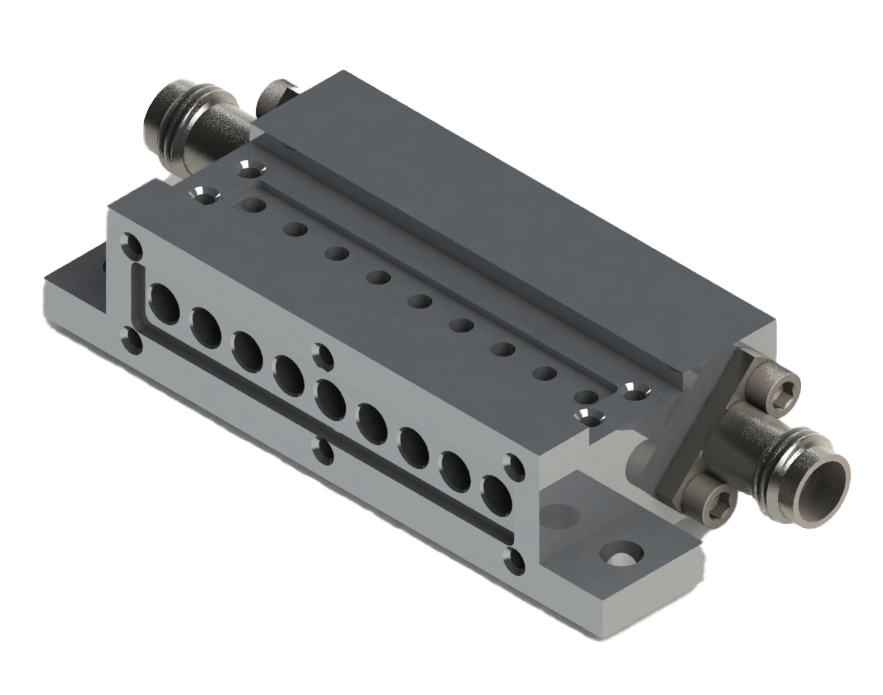

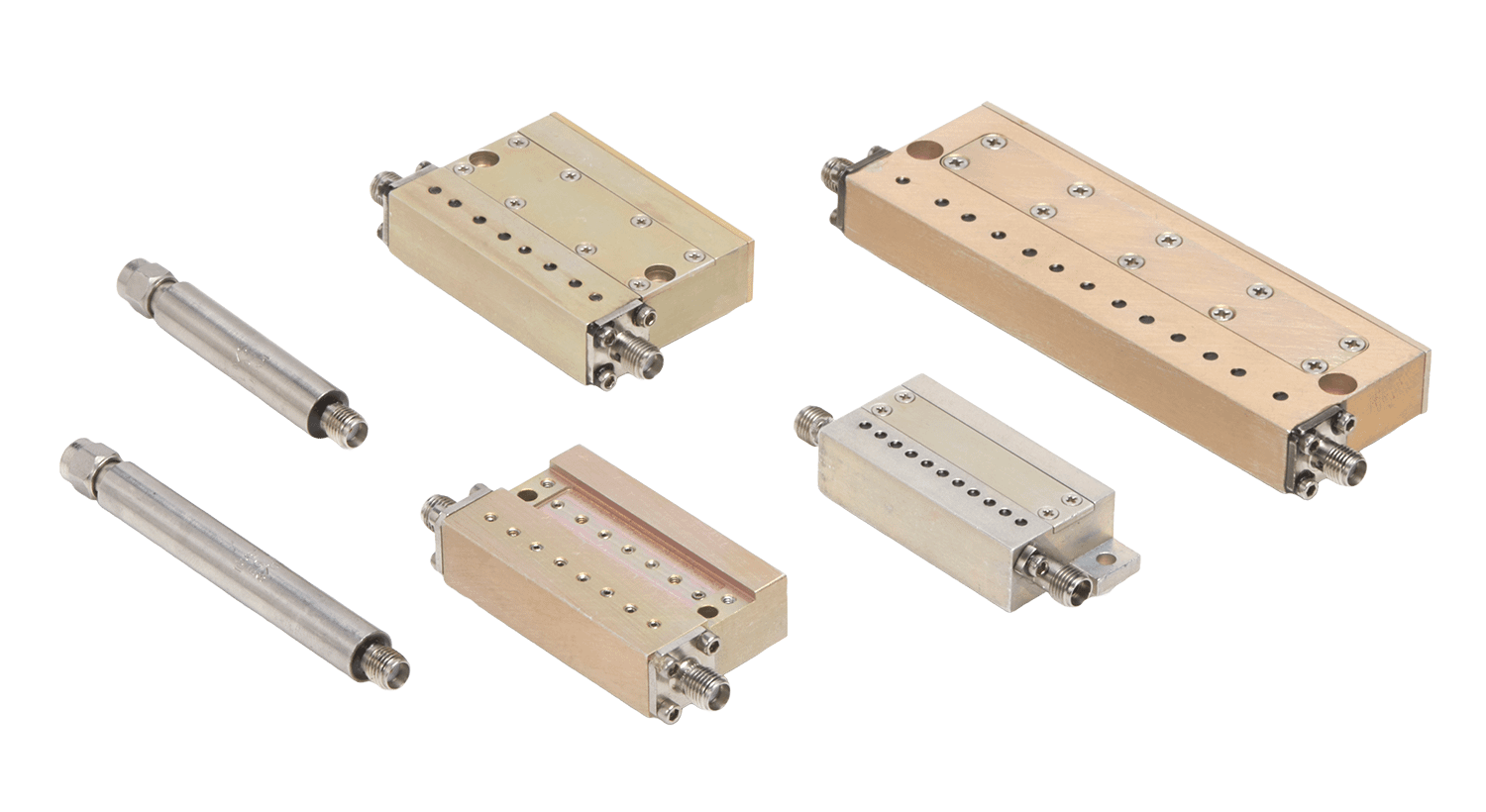

Gain Equalizer - Parabolic Slope - Fixed
Gain equalizers support various types of correction curves with minimum additional parasitic loss. Transmission line is robust, concerning environmental stress conditions as described by MIL-STD-202 standards.
These products have solid design and stability. They offer broad environmental capability with unmatched, industry-leading, tunability.
Compensate for gain variations associated with:
- TWT and solid-state amplifiers
- Multiple component strings (systems)
- Pre-leveling loops with adjustment needs
Compensate for loss variations associated with:
- Long cable runs
- Delay lines
A legacy of design and manufacturing experience.
Growing demand for higher communication bandwidths has led to considerable development of systems operating at millimeter-wave frequencies.
Use cases:
- Compensate from frequency gain roll-off in antennas, cables or wideband amplifiers
- Correct uneven gain from amplifiers or filters in EW and SIGINT systems
- Pre-compensate for gain variations across the transmit band in transmit chains
- Maintain flat group delay and amplitude response in
Radar systems - Long cable runs can distort broadband signals and reduce
performance (cockpit to antenna and antennas to EW and
Radar systems - No companies providing the high level of performance nor the ability to test to classified frequencies
Performance: 50 GHz Tunable Equalizer

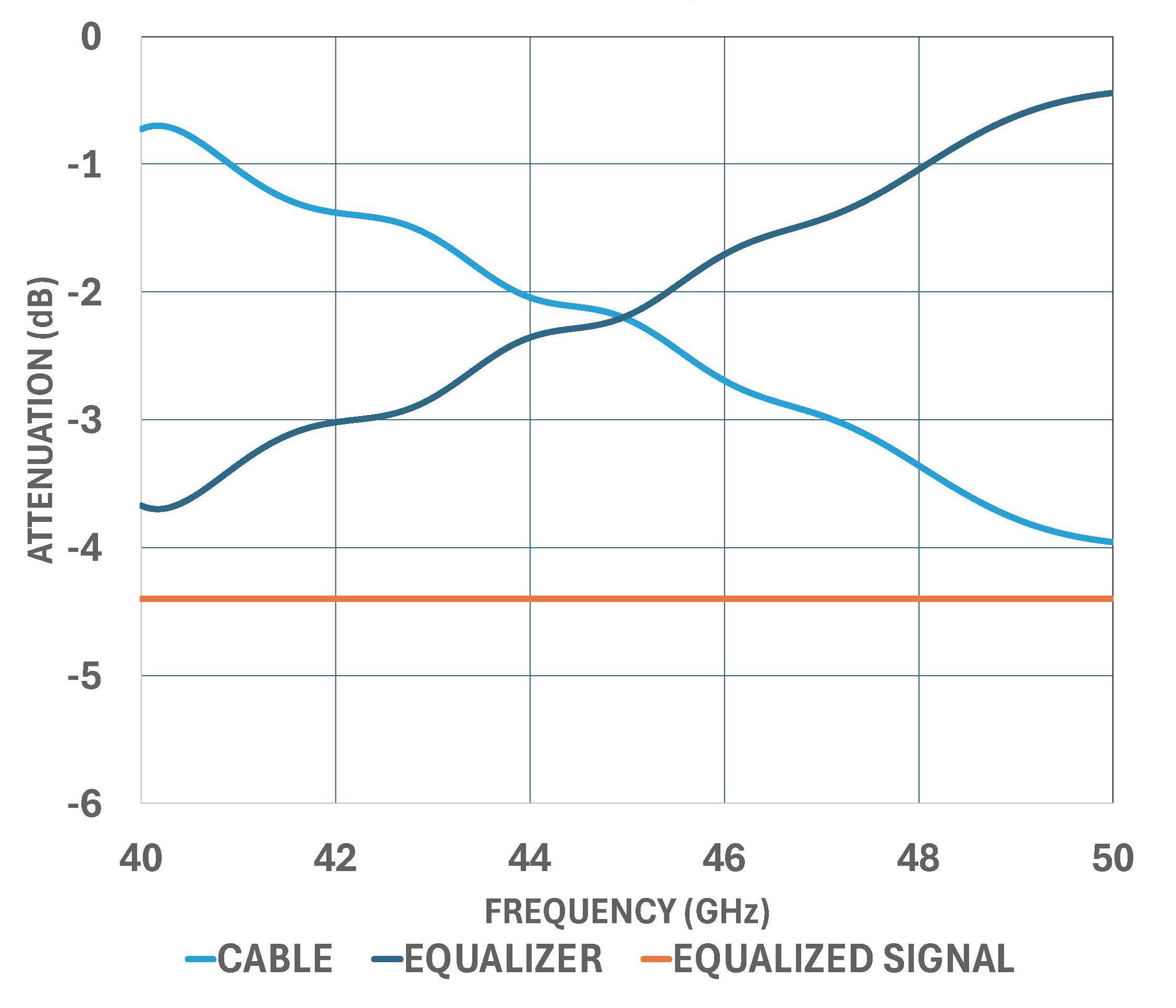

Negative Slope Equalization
Equalizer used to correct for attenuation in cable

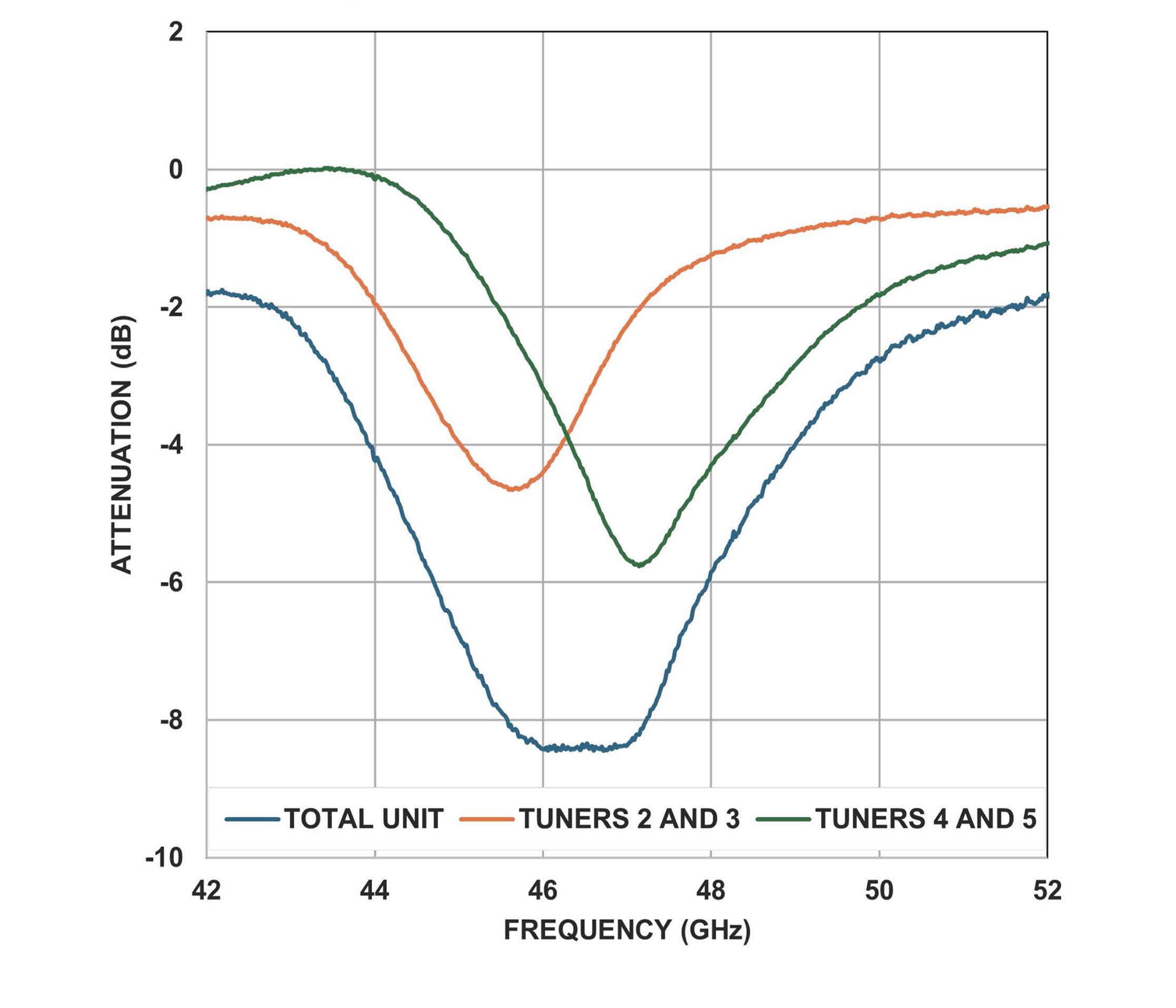

Parabolic Curve Options
Effect of tuners on parabolic correction curve

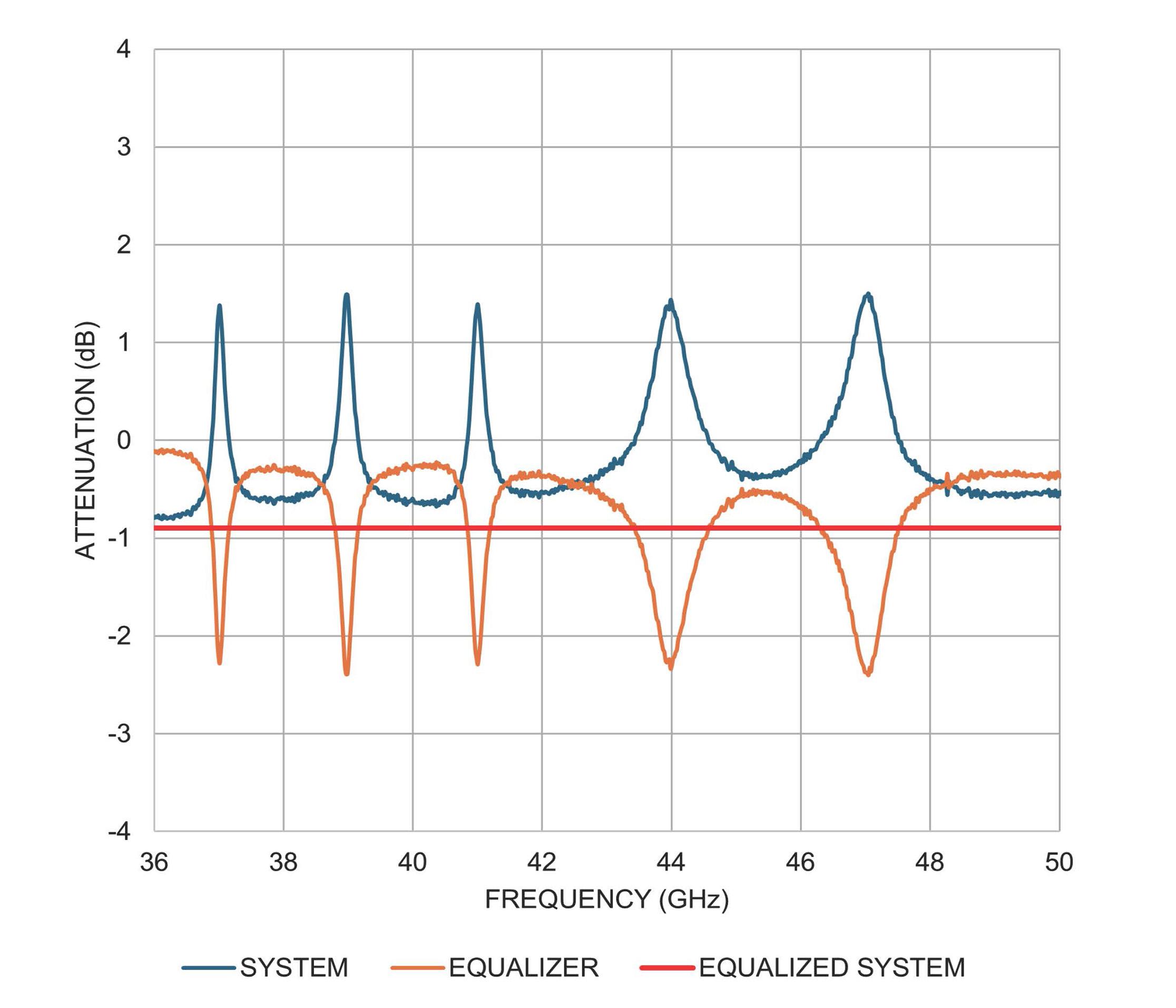

Gain Frequency Correction
Gain frequency correction in a complex communication system
