100 W | DC-0.5 GHz | BeO | 9 dB
PRODUCT P/N: PPA100-9

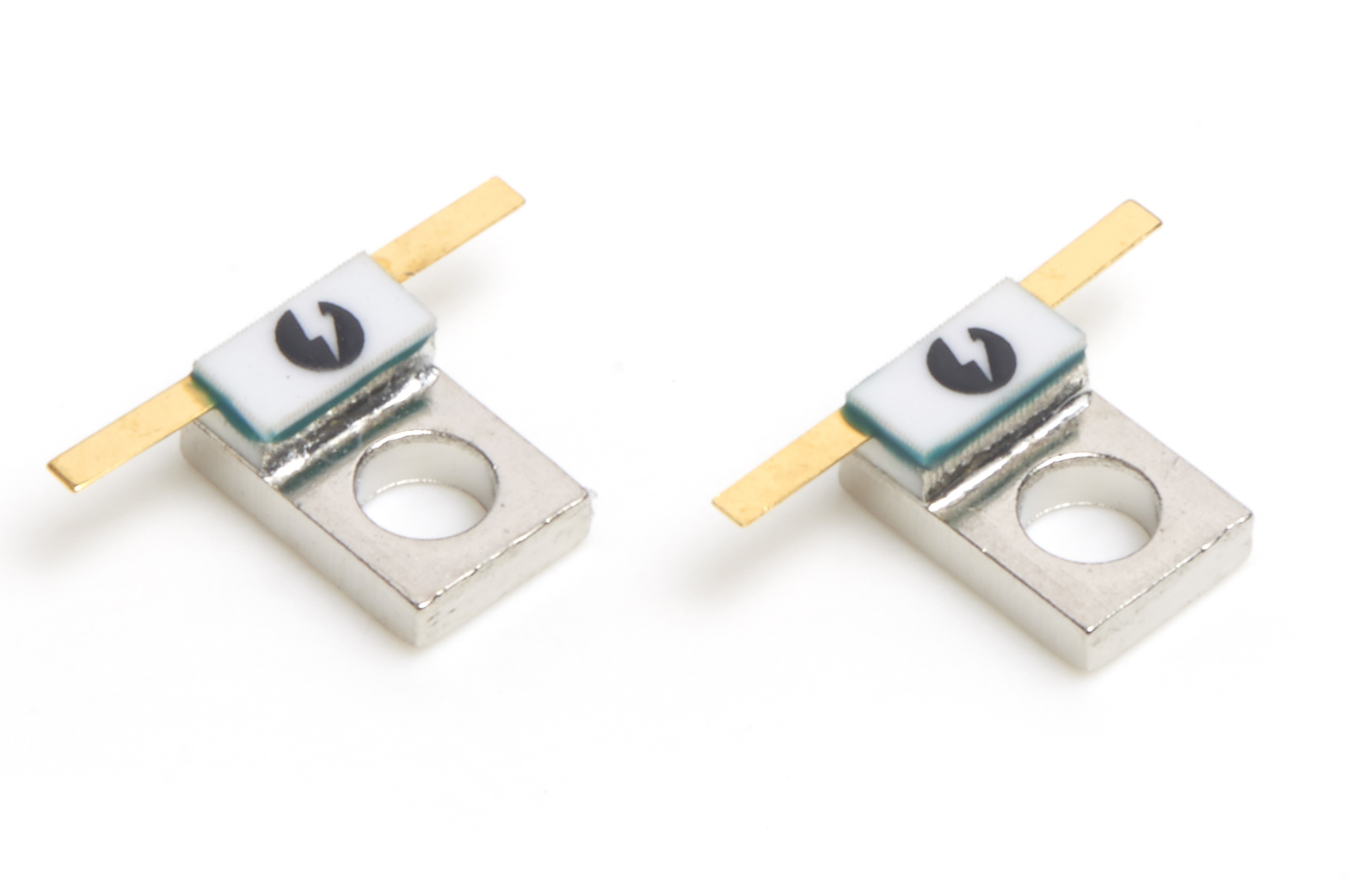

Powerfilm flange attenuator with DC-0.5 GHz frequency, 100 watt power, and 9 dB attenuation. This surface-mount resistive component has nickel plated copper tabbed contacts, with BeO substrate and thin resistor film. Flange attenuators are often used in high-power amplifiers and as terminating attenuators in isolators where lower-level signal sampling may be required. Contact us for samples.
Product Specifications
Electrical
| Frequency (GHz) | DC-0.5 |
| Average Power (Watts) | 100 |
| Attenuation Level (dB) | 9 |
| VSWR (max) | 1.50:1 |
Physical
| Legacy Part Number | PPA100-9 |
| Ceramic Substrate | BeO |
| Resistor | Thin |
| Item Length (in) | 0.50 |
| Item Width (in) | 1.25 |
| Item Height (in) | 0.17 |
| Tab Placement | Center |
| Tab Plating | Gold plated beryllium copper |
