1 W | DC-18 GHz | Alumina | 7 dB
PRODUCT P/N: PCAAW-T7

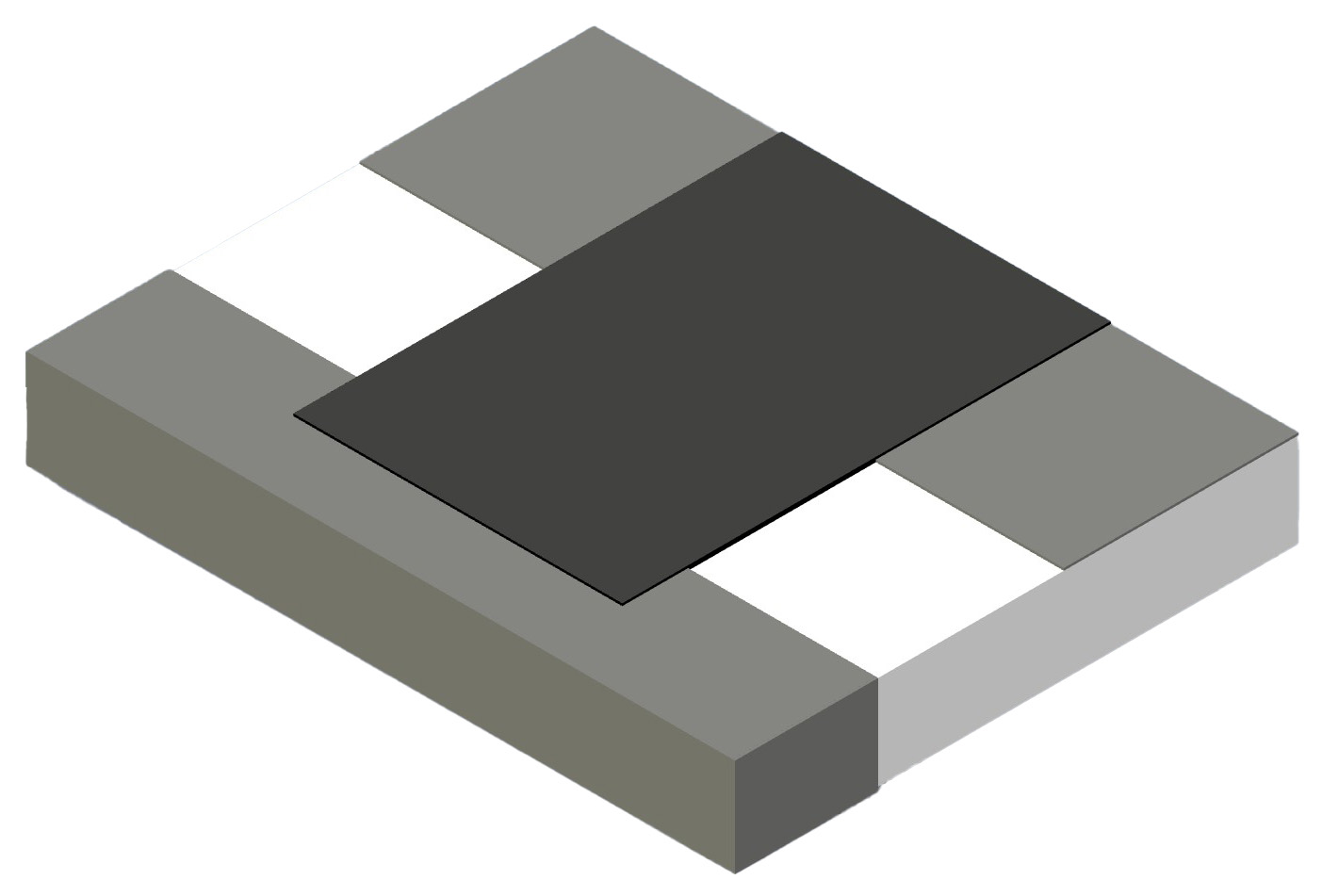

Powerfilm chip attenuator with DC-18 GHz frequency, 0.75 watt power, and 7 dB attenuation. This surface-mount resistive component has tin lead solder, wrap around ground, with Alumina substrate and thin resistor film. Chip attenuators are used in amplifier circuits, receivers, up/down converters, phase-matched arrays, and switching applications. Contact us for samples.
Product Specifications
Electrical
| Frequency (GHz) | DC-18 |
| Average Power (Watts) | 1 |
| Attenuation Level (dB) | 7 |
| VSWR (max) | 1.50:1 |
| Impedance (Ohms) | 50 |
Physical
| Ceramic Substrate | Alumina |
| Resistor | Thin |
| Finish | Tin lead solder |
| Terminal | Tin lead solder |
| Wrap | Wrap around ground |
| Item Length (in) | 0.08 |
| Item Width (in) | 0.06 |
| Item Height (in) | 0.01 |
| Packaging | Waffle Pack |
| Type | Standard |
