SMA | Male input | DC-18 GHz
PRODUCT P/N: FD1515

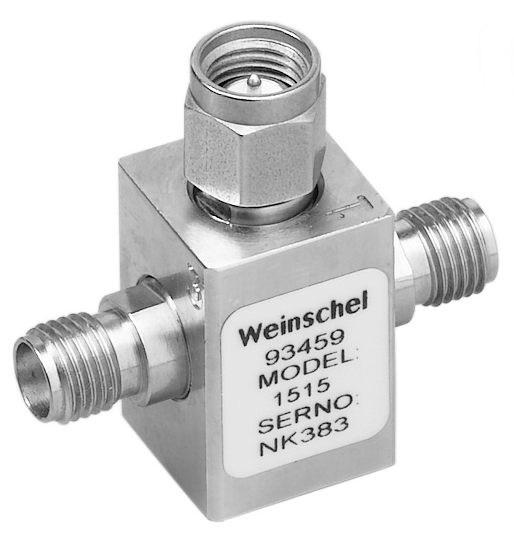

Weinschel brand resistive power divider with SMA male input connector. This product has a frequency of 18 GHz (DC), 6 dB attenuation and amplitude tracking of 0.5 dB. Ideal for dual channeled insertion loss measurements, calibration measurements, and other standard instruments used to simulate devices under test and simulation.
Product Specifications
Electrical
| Frequency (GHz) | DC-18 |
| Average Power (Watts) | 1 |
| Attenuation Level (dB) | 6 |
| VSWR (max) | 1.35:1 |
| Amplitude Tracking (dB) | 0.5 |
| Phase Tracking | ±5° |
Physical
| Connector Type | SMA |
| Connector Configuration | Male input |
| Brand Name | Weinschel |
