SMA | DC-18 GHz | 0 to 99 dB

PRODUCT P/N: AF9004-99-34

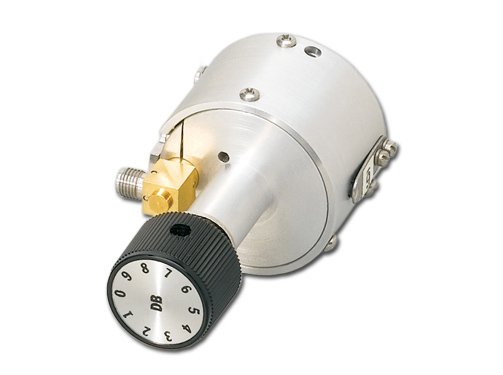

Weinschel broadband, miniature step attenuators with right angle SMA female/right angle SMA male connector, 18 GHz, 2W, with an attenuation range from 0 to 99 in 1 dB steps. These products provide excellent performance characteristics suitable for use in high reliability 50 ohm systems and applications requiring extra-small components for the precision control of power in discrete steps. They can be used either as input or output attenuators in signal sources, receivers, field strength meters, spectrum analyzers, and more.

Request A Quote

Specifications

Product Specifications

DOWNLOAD:
AF9004-99 Data Sheet

Electrical

Frequency (GHz)	DC-18
Average Power (Watts)	2
Attenuation Level (dB)	1.5
VSWR (max)	1.75:1
Step Size (dB)	1

Physical

Connector Type	SMA
Connector Configuration	RT-Angle Female/RT-Angle Male
Brand Name	Weinschel

Distributor Inventory

Distributor	Stock
RFMW - Weinschel	0
Richardson RFPD - Weinschel	0
