SMA | DC-4 GHz | 0 to 99 dB
PRODUCT P/N: AC119A-99-22

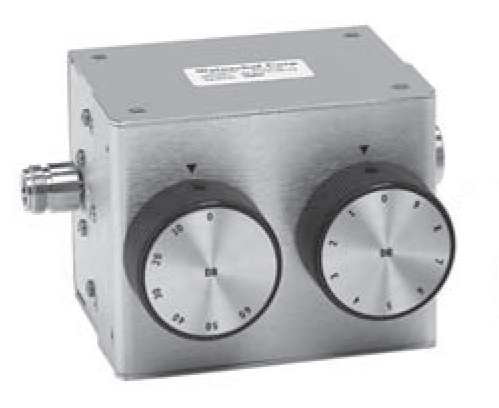

Weinschel broadband step attenuators with SMA, male/male connector, 4 GHz, 2W, and a right-angle drive configuration, where the center conductor of the connectorized perpendicular to the control shaft. With an attenuation range from 0 to 99 in 1 dB steps, it feature excellent performance characteristics suitable for use in high reliability 50 ohm systems and applications requiring extra-small components for the precision control of power in discrete steps.
Product Specifications
Electrical
| Frequency (GHz) | DC-4 |
| Average Power (Watts) | 2 |
| Attenuation Level (dB) | 0.5 |
| VSWR (max) | 1.25:1 |
| Step Size (dB) | 1 |
Physical
| Connector Type | SMA |
| Connector Configuration | Male/Male |
| Brand Name | Weinschel |
Distributor Inventory
| Distributor | Stock |
|---|---|
| RFMW - Weinschel | 0 |
Inventory is provided by our distribution partners and may change.
If stock is unavailable, please continue to the distributor page to obtain a quote and current lead-time information.
