Type-N/SMA | DC-4 GHz | 0 to 9 dB
PRODUCT P/N: AC115A-09-32

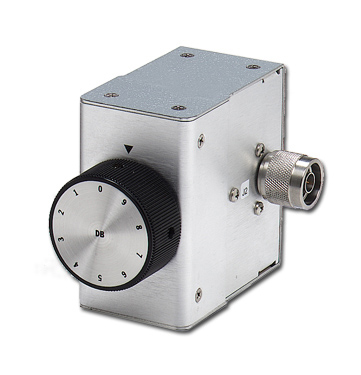

Weinschel broadband step attenuators with type-N male/SMA female connector, 4 GHz, 2W, with excellent performance characteristics suitable for use in high reliability 50 ohm systems and applications requiring extra-small components for the precision control of power in discrete steps. With an attenuation range from 0 to 9 in 1 dB steps, it can be used either as input or output attenuators in signal sources, receivers, field strength meters, spectrum analyzers, and more.
Product Specifications
Electrical
| Frequency (GHz) | DC-4 |
| Average Power (Watts) | 2 |
| Attenuation Level (dB) | 0.3 |
| VSWR (max) | 1.25:1 |
| Step Size (dB) | 1 |
Physical
| Connector Type | Type-N/SMA |
| Connector Configuration | Female/Male |
| Brand Name | Weinschel |
