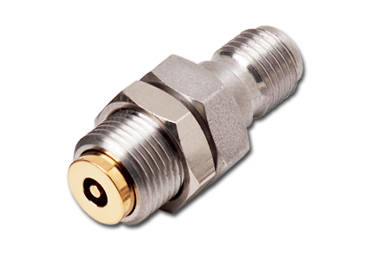

2.92mm (SMK) | Female | DC-40 GHz
PRODUCT P/N: 7035R
Planar blind mate, 2.92mm (SMK), female, front locking, hex nut, floating coaxial connector with operating frequency range DC to 40 GHz. Planar connectors are typically used as a pair or set which is comprised of two connector subassemblies that have a common mating interface. Connectors are ideal for instruments, cables, components and accessories have superior electrical performance than what would be obtained by additional adapters.
Product Specifications
Electrical
| Frequency (GHz) | DC-40 |
| Peak Power (kW) | |
| Attenuation Level (dB) | 0.85 |
| VSWR (max) | 1.55:1 |
Physical
| Connector Type | 2.92mm (SMK) |
| Connector Configuration | Female |
| Electrical Length | |
| Type | Planar Blind Mate |
| Brand Name | Weinschel |
Distributor Inventory
| Distributor | Stock |
|---|---|
| RFMW - Weinschel | 0 |
Inventory is provided by our distribution partners and may change.
If stock is unavailable, please continue to the distributor page to obtain a quote and current lead-time information.
