N-Type | Male input | DC-18 GHz
PRODUCT P/N: 6007

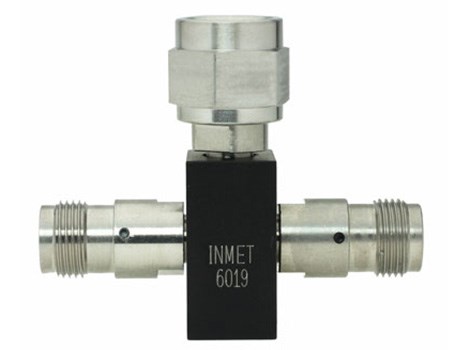

Inmet brand resistive power divider with N-type male input connector. This product has a frequency of 18 GHz (DC), 7.5 dB attenuation and amplitude tracking of 0.5 dB. Ideal for dual channeled insertion loss measurements, calibration measurements, and other standard instruments used to simulate devices under test and simulation.
Product Specifications
Electrical
| Frequency (GHz) | DC-18 |
| Average Power (Watts) | 1 |
| Attenuation Level (dB) | 7.5 |
| VSWR (max) | 1.35:1 |
| Amplitude Tracking (dB) | 0.5 |
| Phase Tracking | ±3° |
Physical
| Connector Type | N-Type |
| Connector Configuration | Male input |
| Brand Name | Inmet |
Distributor Inventory
| Distributor | Stock |
|---|---|
| RFMW - Inmet | 0 |
Inventory is provided by our distribution partners and may change.
If stock is unavailable, please continue to the distributor page to obtain a quote and current lead-time information.
