2.9mm | Female input | DC-12.4 GHz

PRODUCT P/N: 6005F-01

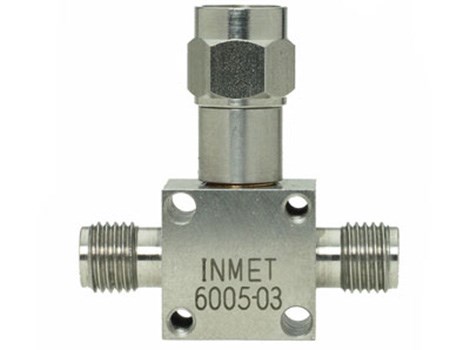

Inmet brand resistive power divider with 2.9mm female input connector. This product has a frequency of 12.4 GHz (DC), 6 dB attenuation and amplitude tracking of 0.4 dB. Ideal for dual channeled insertion loss measurements, calibration measurements, and other standard instruments used to simulate devices under test and simulation.



  • slide
Specifications

Product Specifications

DOWNLOAD:
6005F Data Sheet

Electrical

Frequency (GHz) DC-12.4
Average Power (Watts) 1
Attenuation Level (dB) 6
VSWR (max) 1.20:1
Amplitude Tracking (dB) 0.4
Phase Tracking ±2°

Physical

Connector Type 2.9mm
Connector Configuration Female input
Brand Name Inmet
