Standard | Relay Switched | SMA | 0.25 dB

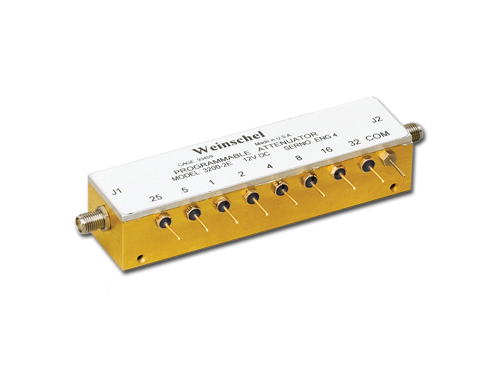

PRODUCT P/N: 3200-2E

The 3200 Series Programmable Step Attenuators are designed for use in automatic test equipment and OEM systems operating in the dc to 3 GHz frequency range. This series is available in many standard attenuation ranges and cell configurations. Custom designed configurations are available upon request. Each cell contains a doublepole, double-throw relay that provides a zero path or attenuated path for the RF signal. Microstrip circuitry and special compensation techniques produce flat attenuation versus frequency characteristics. To minimize RF leakage, the 3200 Series Attenuators are provided with gold-plated contact areas and feedthrough filters at each control terminal.

Request A Quote

Specifications

Product Specifications

DATASHEET
3200 Data Sheet

Electrical

Attenuation Value (dB)	63.75
Frequency	DC-3.0 GHz
Power	1 W
Step (dB)	0.25

Physical

Connector Type	SMA
Connector Configuration	Female
Type	Relay Switched
Specialty	Standard
Brand Name	Weinschel

Distributor Inventory

Distributor	Stock
RFMW - Weinschel	0
Richardson RFPD - Weinschel	0
