SMA | Female | 0.7 - 6 GHz
PRODUCT P/N: 8401-16-5

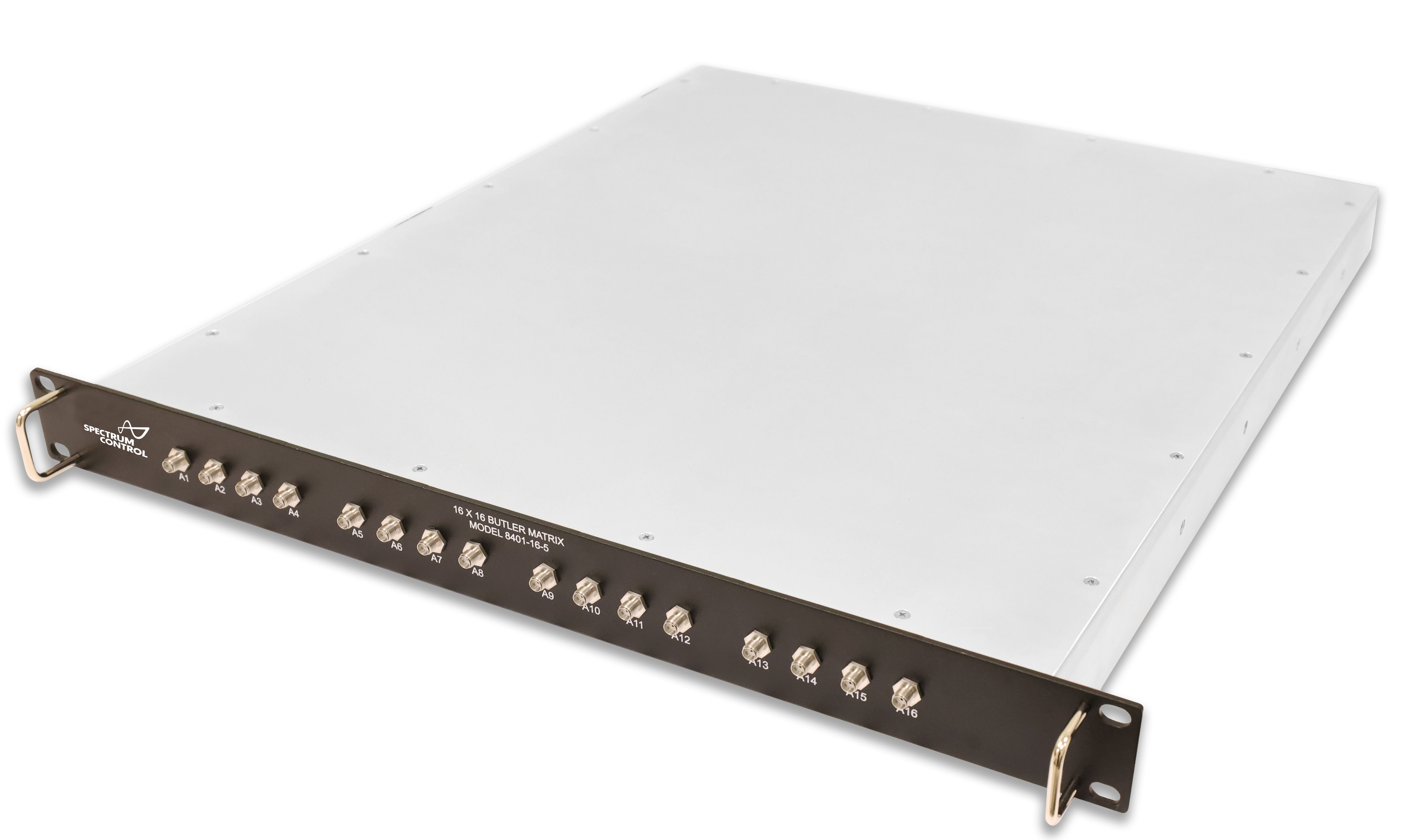

Spectrum Control’s 8401-16-5 Butler matrix is a high-performance 16x16 module, supporting RF technologies including 5G, WiFi, Bluetooth and their associated frequency bands from 0.7 to 6 GHz. It transfers the signal reciprocally from any of 16 input ports to any of 16 output ports, with high phase accuracy, amplitude balance, low insertion loss, and high port-to-port isolation.
Product Specifications
Electrical
| Frequency Range | 0.7 - 6 GHz |
| Power | 5 W |
| Insertion Loss (dB) | 14 typ. / 18 max 18 typ. / 24 max |
| Isolation (dB) | 20 typ. / 10 min 17 typ. / 10 min |
Physical
| Connector Type | SMA |
| Connector Configuration | Female |
| Type | 16x16 |
| Brand Name | Weinschel |
Distributor Inventory
| Distributor | Stock |
|---|---|
| RFMW - Weinschel | 0 |
Inventory is provided by our distribution partners and may change.
If stock is unavailable, please continue to the distributor page to obtain a quote and current lead-time information.
