16A | 250 VAC | IEC 20
PRODUCT P/N: 52-1700-504

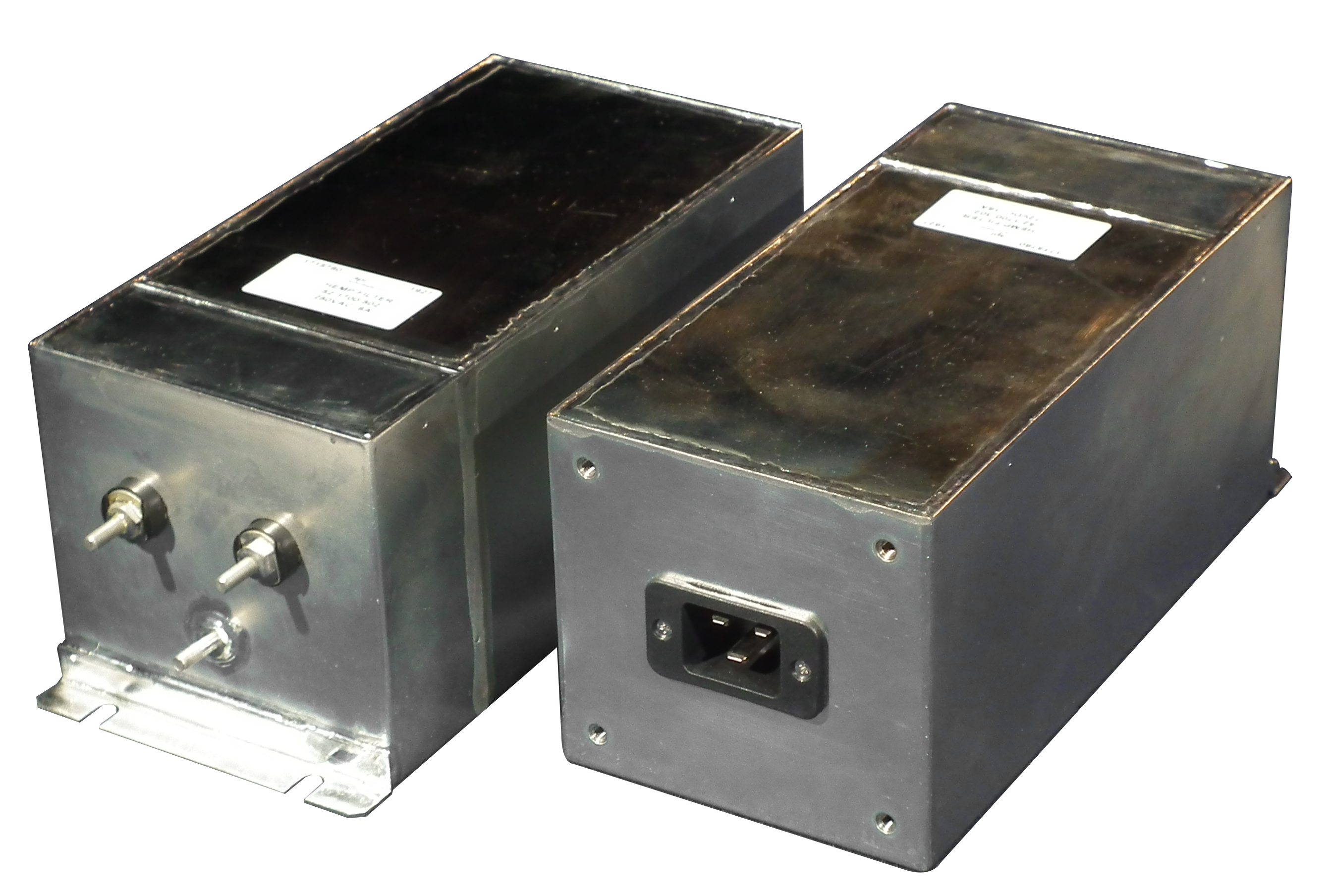

16 A rated current 250 VAC rated voltage EMP/HEMP filter high-voltage high-altitude Electromagnetic Pulse (HEMP) filters are designed to protect sensitive electronics equipment from EMI and during hazardous transient conditions. These filters are employed to absorb a potentially destructive overshoot voltage and will also help meet the requirements of MIL-STD-188-125.
Product Specifications
Electrical
| Rated Current (A) | 16 |
| Rated Voltage | 250 VAC |
| Dielectric Withstand Voltage (VDC) | 2250 |
| Clamping Voltage | 710 VDC |
| Pulse Peak Current | |
| Max Leakage Current | 1400 mA |
| Insulation Resistance | 1 GOhm minimum @ 100VDC |
| Voltage Drop | <1 % |
Physical
| Item Length (in) | 9 |
| Item Width (in) | 4.5 |
| Item Height (in) | 4.25 |
| Output | 10-32 thread |
| Operating Temperature | |
| Storage Temperature | -40 to 105°C |
| Input Connector | IEC 20 |
