SMA | Female input | DC-40 GHz
PRODUCT P/N: 1549R

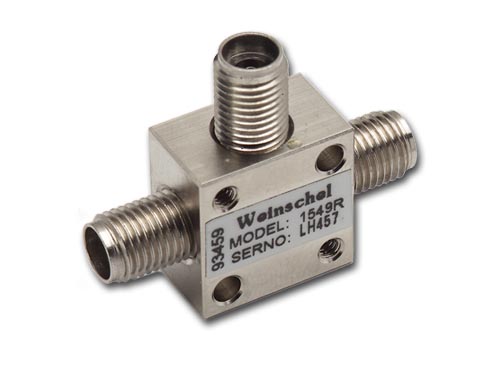

Weinschel brand resistive power divider with SMA female input connector. This product has a frequency of 40 GHz (DC), 6.5 dB attenuation and amplitude tracking of 0.2 dB. Ideal for dual channeled insertion loss measurements, calibration measurements, and other standard instruments used to simulate devices under test and simulation.
Product Specifications
Electrical
| Frequency (GHz) | DC-40 |
| Average Power (Watts) | 1 |
| Attenuation Level (dB) | 6.5 |
| VSWR (max) | 1.25:1 |
| Amplitude Tracking (dB) | 0.2 |
| Phase Tracking | <4° |
Physical
| Connector Type | SMA |
| Connector Configuration | Female input |
| Brand Name | Weinschel |
