PRODUCT P/N: 1474-2

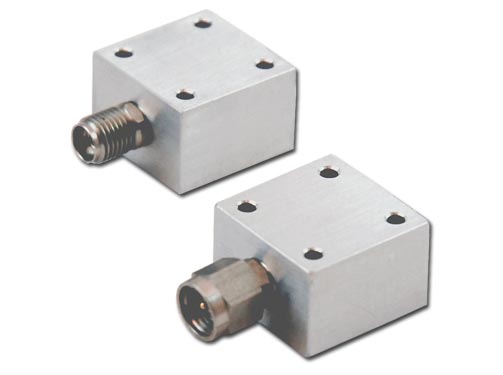

Weinschel brand coaxial termination with 2.92mm (SMK), male connector with DC-40 GHz, and 5 watt power. 2.92mm (SMK) connector designed to to mate nondestructively with SMA per MIL-C-39012, 3.5mm and other 2.92 mm connectors. Conduction cooled termination has high quality connector with special high temperature support bead.
Product Specifications
Electrical
| Frequency (GHz) | DC-40 |
| Average Power (Watts) | 5 |
| Peak Power (kW) | |
| Attenuation Level (dB) | |
| VSWR (max) | 1.45:1 |
Physical
| Connector Type | 2.92mm (SMK) |
| Connector Configuration | Male |
