DC-40 GHz | Carbon | 50±1% Ohms
PRODUCT P/N: RC030130AL50-1

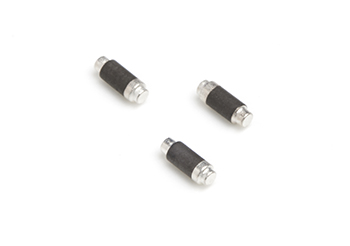

Powerfilm brand 0.03" diameter rod resistor with a resistance value of 50 ohms with a 1% tolerance up to 40 GHz frequency and an active length of 0.07". This product is made with Alumina ceramic substrate and carbon resistor. These products have excellent uniformity, minimum non-inductive adjustment and solderable terminals.
Product Specifications
Electrical
| Frequency (GHz) | DC-40 |
| Resistance (Ohms) | 50±1% |
| Tolerance (%) | ±1 |
| Average Power (Watts) | 0.10 |
Physical
| Ceramic Substrate | Alumina |
| Resistor | Carbon |
| Item Diameter (in) | 0.03 |
| Item Length (in) | 0.13 |
| Terminal (in) | 0.025 |
| Active Length (in) | 0.07 |
Distributor Inventory
| Distributor | Stock |
|---|---|
| RFMW - Spectrum Control | 0 |
Inventory is provided by our distribution partners and may change.
If stock is unavailable, please continue to the distributor page to obtain a quote and current lead-time information.
