6A | 277 VAC | IEC 320-C14
PRODUCT P/N: 52-1700-602

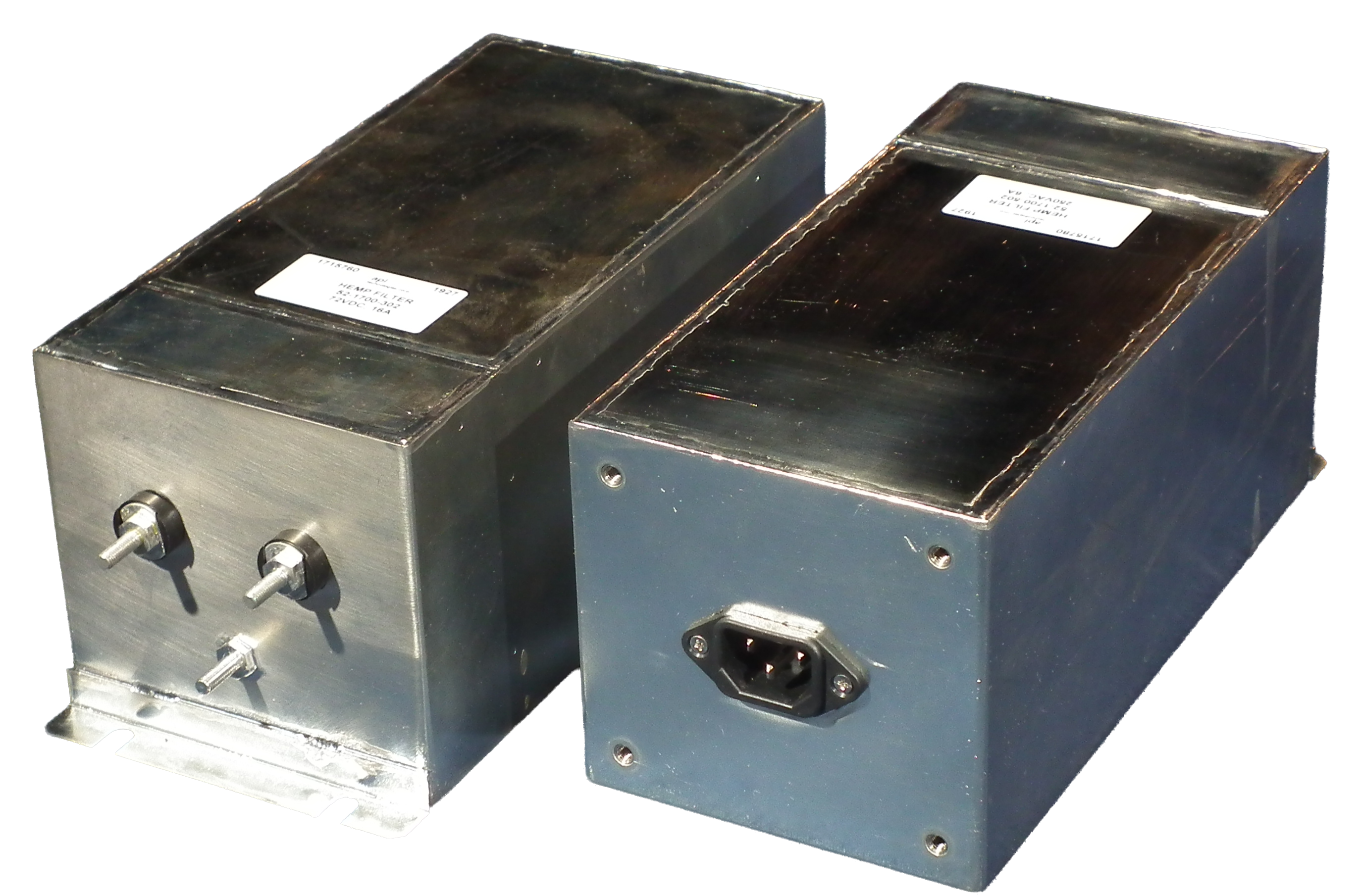

6 A rated current 277 VAC rated voltage EMP/HEMP filter high-voltage high-altitude Electromagnetic Pulse (HEMP) filters are designed to protect sensitive electronics equipment from EMI and during hazardous transient conditions. These filters are employed to absorb a potentially destructive overshoot voltage and will also help meet the requirements of MIL-STD-188-125.
Product Specifications
Electrical
| Rated Current (A) | 6 |
| Rated Voltage | 277 VAC |
| Dielectric Withstand Voltage (VDC) | 2500 |
| Clamping Voltage | 710 VAC |
| Pulse Peak Current | 70 kA @ 8/20us |
| Max Leakage Current | 1400 mA |
| Insulation Resistance | 1 GOhm minimum @ 100VDC |
| Voltage Drop | <1 % |
Physical
| Item Length (in) | 9 |
| Item Width (in) | 4.5 |
| Item Height (in) | 4.5 |
| Output | 10-32 thread |
| Operating Temperature | -40 to +50°C |
| Storage Temperature | -40 to 105°C |
| Input Connector | IEC 320-C14 |
