High Accuracy Mini

PRODUCT P/N: 5327

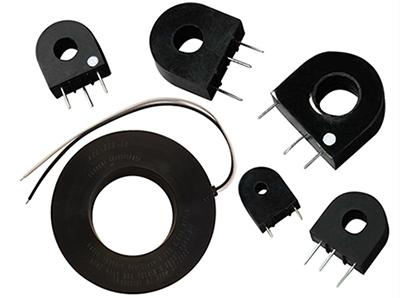

Spectrum Control offers a wide range of current sense transformers that measure electrical current (AC & DC) and can transform current from high to low measurable values. Spectrum Control series 5300 current sense transformers are available with current ranges from 3.5 to 800 amps in six subcategories of current sense transformers.



  • slide
Specifications

Product Specifications

DOWNLOAD:
5300 Data Sheet

Electrical

Load Voltage (V) 0.50
Excitation Current (Lex) 183
Excitation Voltage (Vex) 0.74
Output Volts per Input Amps (V/A) 0.10
Primary Current (A) 5
Terminating Resistor (RL) (Ω) 100

Physical

Item Length (in) 0.66
Item Width (in) 0.37
Item Height (in) 0.795
Inner Diameter 0.177
Net Weight (lbs) 0.015
Inner Pin Width
