High-Performance Surface-Mount Filters

Technological advancements and the demand for compact, efficient electronics have driven innovations in surface mount components. Today’s compact systems require miniaturized, reliable, and high-performance components. Spectrum Control offers small footprint, surface mount RF filtering solutions for demanding applications.

High Q Lumped Element Filters. These ultraminiature filters offer a breakthrough in performance for surface mount filters. Customers are excited about the tight rejection skirts and low insertion loss.

SAW and High Power SAW filters. Spectrum Control is a leader in surface acoustic wave filters. Choose from an extensive range of frequency bands. The company is the only US manufacturer of High Power SAW filters supporting power levels up to up to +35 dBm CW.

Ultraminiature High Q Filters

High Q filter update.jpg

Surface Acoustic Wave (SAW) Filters

Ultraminiature High Q SAW Filters RFMW and Spectrum Control

High Q SMT Filter Family

Dramatic reduction in filter size while maintaining exceptional performance.

Spectrum Control has developed a family of ultra miniature high Q RF filters in surface-mount, BGA packages. Operating from 500 MHz to 10 GHz, these filters are ideal for use in lowpass, highpass, bandpass and diplexer applications.

Overview

Spectrum Control has been a leading provider of high quality, high performance RF filters for more than 40 years. We have applied our RF filtering expertise to deliver a dramatic reduction in filter size while providing exceptional performance. The new MMG filter family delivers high selectivity with low insertion loss and temperature stability in an extremely small form factor with BGA mounting.

To achieve this size and performance breakthrough we have employed a novel manufacturing approach using integrated passive devices in glass. This 3D process allows us to build unique solenoid inductor structures that offer superior Q performance compared to other filter technologies, specifically over the 0.5 to 10 GHz frequency range. The wafer-scale process also provides an extremely high correlation between filter simulations and the manufactured product giving us high predictability for custom filters. The performance and quality are also highly consistent, run-to-run.

High Q Filter analyzer output.png

This performance graph is typical for all of the filters in the MMG family with steep skirt selectivity and very low insertion loss

High Q RF filter in BGA package.png

Performance

Featured release: 4 GHz IF filter

Pass-band from 3 to 5 GHz
Mid-band insertion loss of 2.2 dB
Group delay of 1.0 ns nominal over a temperature range of -55° C to 125° C
Stop-band suppression greater than 60 dBc from DC - 2.5 GHz and 5.8 to 15 GHz, typical 15% from the band edges

Standard product family for lowpass, highpass, bandpass, notch and diplexer applications covers frequency bands from 0.5 GHz to 10 GHz. Download the family datasheet for more information

Custom derivatives available including multiplexers and switched filter banks. Please use the form below to inquire or contact your local Spectrum Control sales office.

Download product family datasheet

Next Steps

Work with your RFMW sales team to integrate these filters into your next design. Use the button below to request additional product information and/or a price quote. Be sure to include your name, company name and your country/state/province.

Email us for more information

Specifications: 4 GHz IF filter, 3-5 GHz Band
P/N MMG-4000-2000-B

MMG_4000_2000_B specs.png

SAW Filter Family

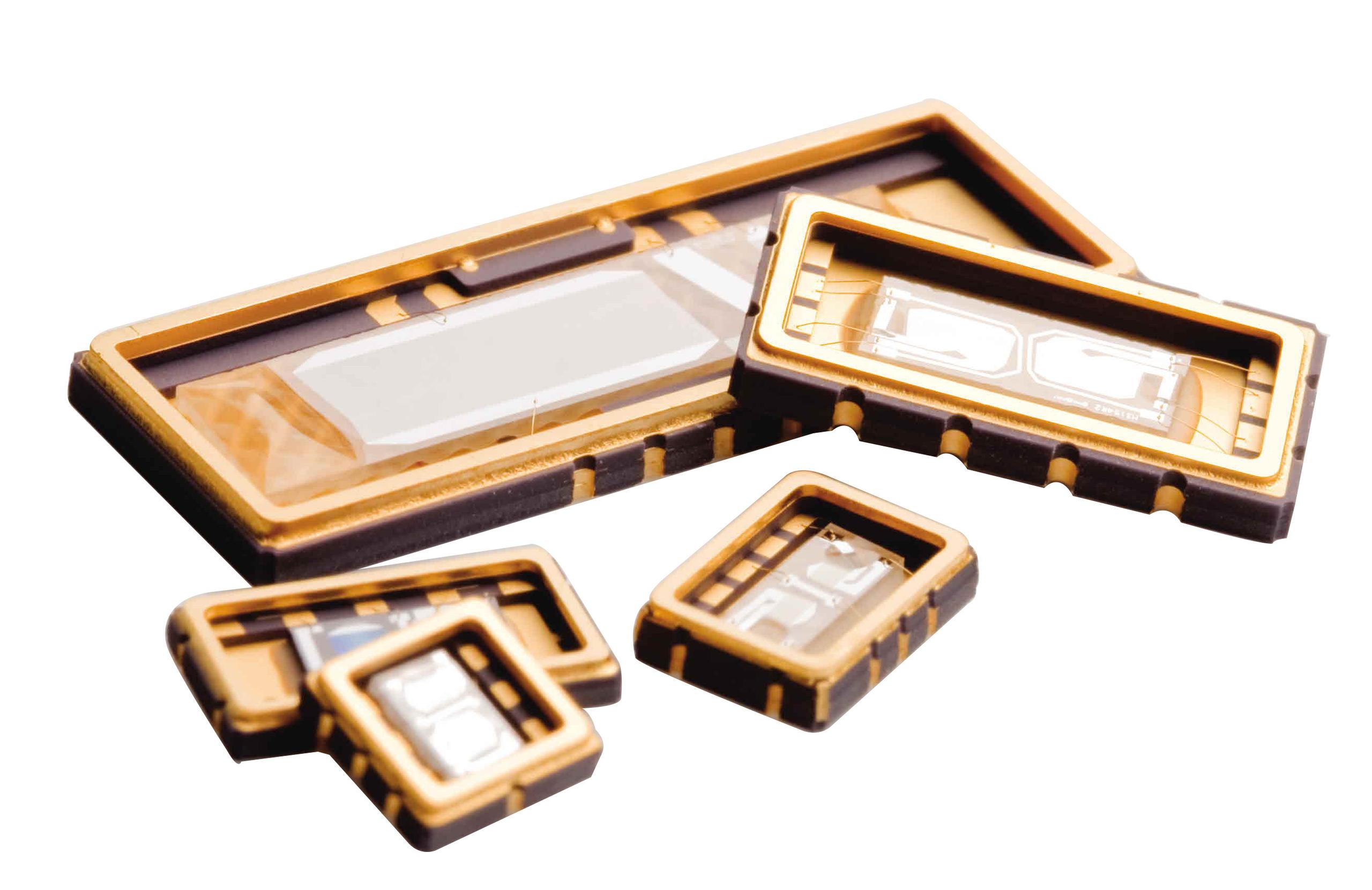

Spectrum Control designs and manufactures high-rel SAW filters for today’s military and commercial markets. Spectrum Control provides standard solutions for narrowband, GPS band applications, standard IF, and standard RF bands.

Spectrum Control's design library consists of filters from 20 MHz up to 2600 MHz with semi-standard and custom solutions available.

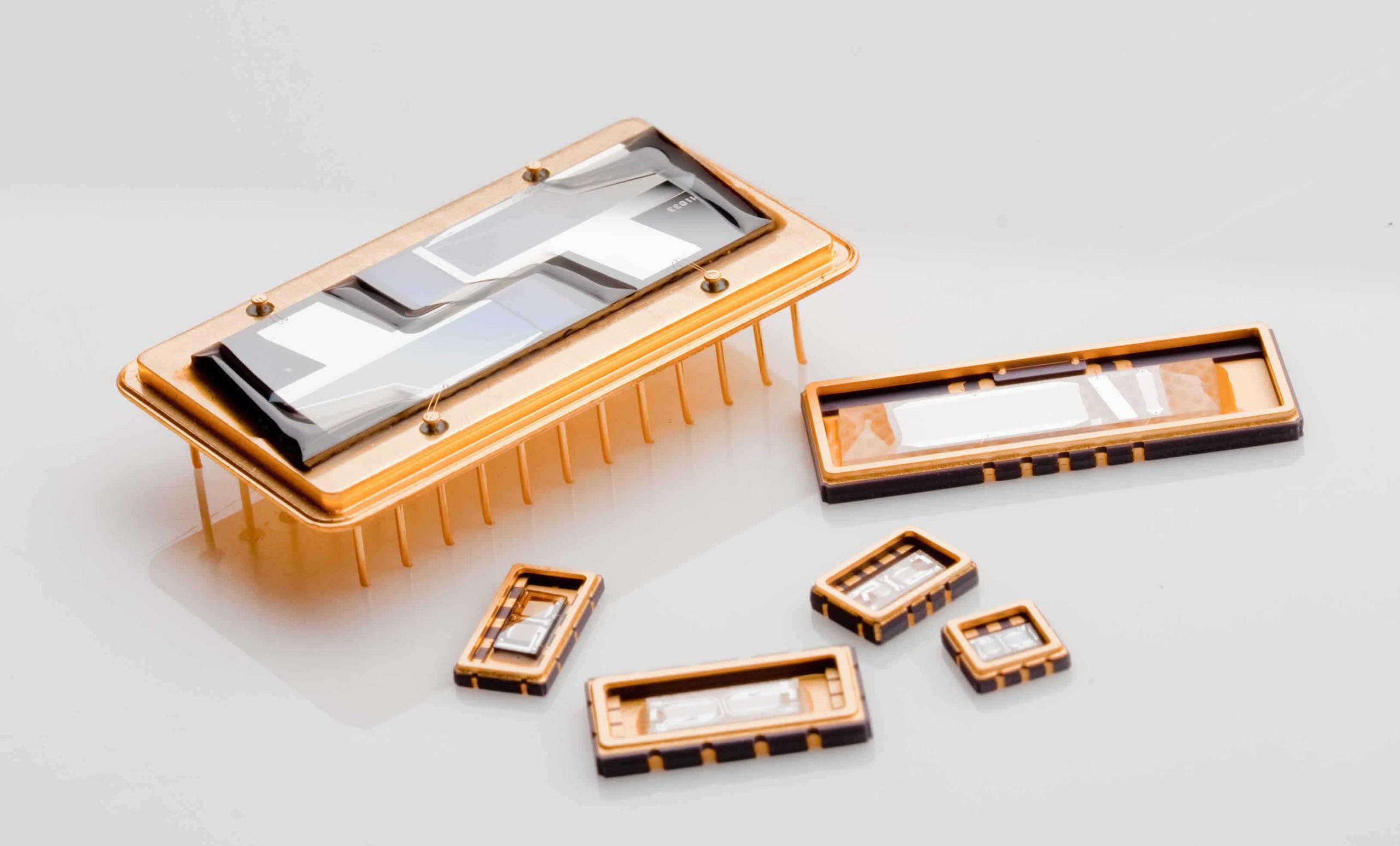

Spectrum Control breaks new ground for SAW filters by adding high power (HP) input capabilities. Input power levels up to +35 dBm CW at +125C and covering narrow, wide, and fractional- bandwidths across frequencies of 20 MHz to 1.6 GHz.

High Power SAW Filters handle high-input power in the same package and footprint as typical SAW devices.

```
Low Loss/High Rejection SAW Filters
```
```
Loss less than 1 dB
```
```
Fractional Bandwidths from 0.04% to 60%
```
```
Shape factors below 1.10:1
```

100% Pre-Aging and 100% Wafer Probe Testing

Backside Planar Etching for Improved Spurious Rejection

```
Ultra-Flat Group Delay
```

Next Steps

Use the button below to get additional product information and/or a price quote

SAW Filters page at RFMW
