Solutions for Modern Wireless Test

Helping you achieve real world, controlled test environments​

Here are six tests cases to ensure your devices will perform reliably in today's complex wireless environment.

Throughput Testing
Throughput Testing
Designed to perform simultaneous controlled conductive and over the air testing.

Test the throughput of multiple wireless devices (5G and Wi-Fi) at various transmit and receive power levels. This can be adapted for testing any other wireless technologies such as 5G, LTE, Bluetooth, and Zigbee, for example. Test for throughput, jitter, packet error rate vs range, device orientation and more.







Certification Testing
Certification Testing
Designed for the certification of wireless radios in a controlled environment.

This RF conductive test setup emulates an outdoor LTE/5G wireless environment with a 5G/LTE Radio

and user devices or a UE simulator. This setup is used to simulates the fading loss between the radios and the user devices/UE simulator. The test allows you to connect multiple radios to multiple user-devices and control signal coordination to the devices under test. This RF Testbed can also be adapted for testing any other wireless technologies such as Wi-Fi, Bluetooth, Zigbee etc. as well.

Hybrid Testing
Hybrid Testing
Designed to allow for mobility testing for handover use-cases

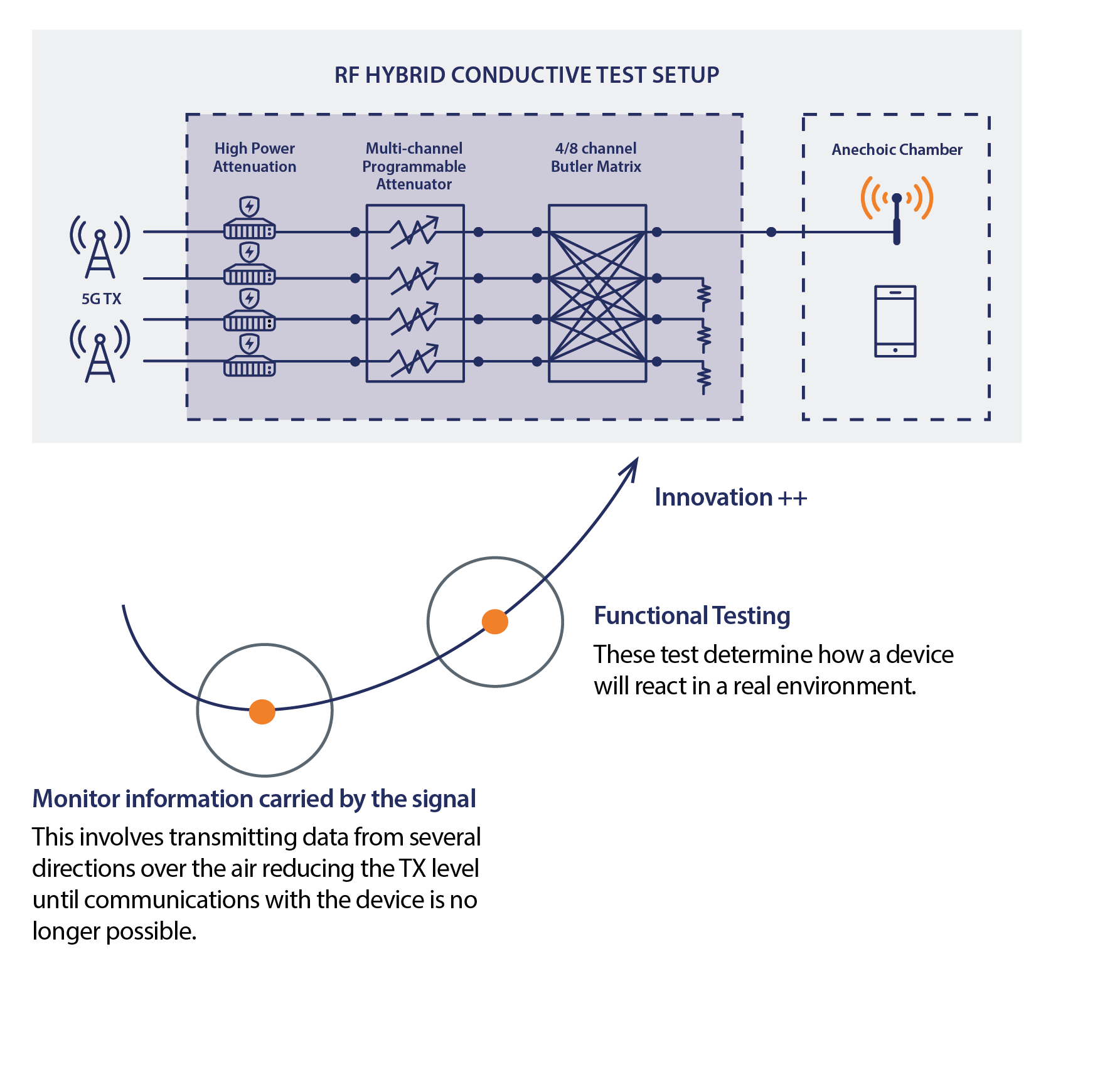

Simultaneously support conductive and hybrid over-the-air (OTA) tests with multiple radios connected to a single antenna. We use a butler matrix to produce a channel condition number of 1, maximizing throughput. Add a multipath emulator to reproduce multipath conditions in the Wi-Fi 6E frequency bands.

Test the throughput of multiple wireless devices (5G and Wi-Fi) at various transmit and receive power levels. This can be adapted for testing any other wireless technologies such as 5G, LTE, Bluetooth, and Zigbee, for example. Test for throughput, jitter, packet error rate vs range, device orientation and more.







This RF conductive test setup emulates an outdoor LTE/5G wireless environment with a 5G/LTE Radio

and user devices or a UE simulator. This setup is used to simulates the fading loss between the radios and the user devices/UE simulator. The test allows you to connect multiple radios to multiple user-devices and control signal coordination to the devices under test. This RF Testbed can also be adapted for testing any other wireless technologies such as Wi-Fi, Bluetooth, Zigbee etc. as well.

Simultaneously support conductive and hybrid over-the-air (OTA) tests with multiple radios connected to a single antenna. We use a butler matrix to produce a channel condition number of 1, maximizing throughput. Add a multipath emulator to reproduce multipath conditions in the Wi-Fi 6E frequency bands.

Multipath Testing
Multipath Testing
Designed for testing of RF propagation in a virtual indoor or outdoor environment.

models multipath in a Wi-Fi environment with a power delay path matching the IEEE TG-n channel model. This test environment supports class B (indoor) NLOS and Expand Line of Sight (LOS) models, along with class D (outdoor) Expand Non-Line of Sight (NLoS) operation. An on-board phase shifter provides the ability to exercise the DUT under the full range of multipath conditions (both destructive and constructive interference).

Handover Testing
Handover Testing
Designed to allow for the testing of motion triggers roaming or cell handover and data rate adaptation.

The RF conductive test setup emulates an outdoor LTE/5G wireless environment, with a 5G/LTE Radio and user devices and allow you to test for the handover between base stations or access points. The radios under test are connected to power dividers/combiners, then into multi-channel programmable attenuators. Finally, the signal is routed to a number of user-devices. Motion can be emulated by ramping the attenuators to introduce signal fading loss versus time. The ramping rate can be accurately controlled to emulate typical velocity of mobile devices when in vehicles.

Mesh Connectivity Testing
Mesh Connectivity Testing
Designed to allow for the testing of an multi node mesh RF network conductively.

Test Mesh Node Placements and the formation of dynamic routing connections for point-to-point or end-to-end environments ensuring that data and applications can be securely delivered and controlled across a wide range of environments. You can also test Station Moving Patterns moving between nodes sequentially, jumping out of sequence etc. The Load Patterns test looks at fixed and mobile devices moving around the business premieres handing over between nodes running data, confirming that data and applications can be securely delivered and controlled across the mesh network environments.

models multipath in a Wi-Fi environment with a power delay path matching the IEEE TG-n channel model. This test environment supports class B (indoor) NLOS and Expand Line of Sight (LOS) models, along with class D (outdoor) Expand Non-Line of Sight (NLoS) operation. An on-board phase shifter provides the ability to exercise the DUT under the full range of multipath conditions (both destructive and constructive interference).

The RF conductive test setup emulates an outdoor LTE/5G wireless environment, with a 5G/LTE Radio and user devices and allow you to test for the handover between base stations or access points. The radios under test are connected to power dividers/combiners, then into multi-channel programmable attenuators. Finally, the signal is routed to a number of user-devices. Motion can be emulated by ramping the attenuators to introduce signal fading loss versus time. The ramping rate can be accurately controlled to emulate typical velocity of mobile devices when in vehicles.

Test Mesh Node Placements and the formation of dynamic routing connections for point-to-point or end-to-end environments ensuring that data and applications can be securely delivered and controlled across a wide range of environments. You can also test Station Moving Patterns moving between nodes sequentially, jumping out of sequence etc. The Load Patterns test looks at fixed and mobile devices moving around the business premieres handing over between nodes running data, confirming that data and applications can be securely delivered and controlled across the mesh network environments.

YOU KNOW WHERE YOU WANT TO GO. WE HAVE THE EXPERTISE AND THE MAP

Get there fast​
​Cut time to market by testing new features fast and accurately, faster set-up and faster testing.​

Faster set-up and faster testing

Faster set-up and faster testing

Speed your devices and network components to market with comprehensive, automated testing in a range of simulated environments. Our RF test solutions provide a controlled and repeatable RF Test environment that significantly reduces testing time. And our Digital Lab Assistant lets you automate setup and testing saving time and effort.

Get there on budget
Our pre-configured test solutions can save you money now and later.

Cost-effective test solutions

Cost-effective test solutions

Our cost-effective, preconfigured test solutions allow you to add new test functionality quickly, and cost-effectively. No guess work or trial and error. And you can also save by shortening the time to bring new devices to market.

Get there your way​
From component solutions to specialized control modules to full test environments we have the solutions you need.

The choice is yours

The choice is yours

Build your own test environment or use one of our preconfigured options.

Spectrum Control's RF programmable products form the basic building blocks for RF solutions. They are extensively used in labs and production test environments to perform RF conductive testing for a variety of use-cases and applications with a variety of performance levels, configurations and bandwidths. Each programmable product is delivered 'plug-and-play' and supported by our Digital Lab Assistant for easy automation with ready-to-use control scripts.

Spectrum Control components include connectors and adapters, terminations, DC blocks, bias tees, and EMI filtering connectors. We have a 70-year heritage in providing quality components to RF test environments in both commercial and military applications. And our engineering support is word-class.



Get there reliably​
Our team has years of experience in signal generation, beam forming, and signal conditioning.

Stand on the shoulders of more than 70 years of RF engineering expertise

Stand on the shoulders of more than 70 years of RF engineering expertise

We are known for world-class RF engineering prowess, high performance products, and the ability to solve challenging RF system issues. We are a trusted partner to major multinational companies in aerospace, defense, medical, test & measurement, and commercial wireless industries. Trust Spectrum Control to deliver on our promises with solutions that perform to spec and exceed your expectations.

Faster set-up and faster testing

Speed your devices and network components to market with comprehensive, automated testing in a range of simulated environments. Our RF test solutions provide a controlled and repeatable RF Test environment that significantly reduces testing time. And our Digital Lab Assistant lets you automate setup and testing saving time and effort.

Cost-effective test solutions

Our cost-effective, preconfigured test solutions allow you to add new test functionality quickly, and cost-effectively. No guess work or trial and error. And you can also save by shortening the time to bring new devices to market.

The choice is yours

Build your own test environment or use one of our preconfigured options.

Spectrum Control's RF programmable products form the basic building blocks for RF solutions. They are extensively used in labs and production test environments to perform RF conductive testing for a variety of use-cases and applications with a variety of performance levels, configurations and bandwidths. Each programmable product is delivered 'plug-and-play' and supported by our Digital Lab Assistant for easy automation with ready-to-use control scripts.

Spectrum Control components include connectors and adapters, terminations, DC blocks, bias tees, and EMI filtering connectors. We have a 70-year heritage in providing quality components to RF test environments in both commercial and military applications. And our engineering support is word-class.



Stand on the shoulders of more than 70 years of RF engineering expertise

We are known for world-class RF engineering prowess, high performance products, and the ability to solve challenging RF system issues. We are a trusted partner to major multinational companies in aerospace, defense, medical, test & measurement, and commercial wireless industries. Trust Spectrum Control to deliver on our promises with solutions that perform to spec and exceed your expectations.
