Medical Equipment

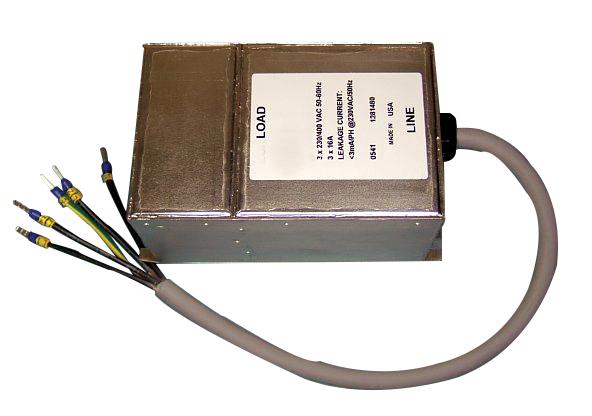

Our many years of experience in providing EMI/RFI solutions have given us the know-how to design products to meet the specific constraints and requirements of the medical industry. Much of the medical equipment used today requires complete suppression of any and all EMI, as well as low-leakage non-magnetic properties, to prevent negatively affecting surrounding equipment. At vertically integrated APITech, we will design and build a high reliability, high performance custom power filter to meet your system and all EN requirements.
Applications
- X-ray equipment
- MRI and CAT scan machines
- Portable dialysis machines
- Laboratory equipment
- Heart defibrillators
Capabilities
- Accommodate non-magnetic requirements
- High performance/high-reliability
- Low leakage

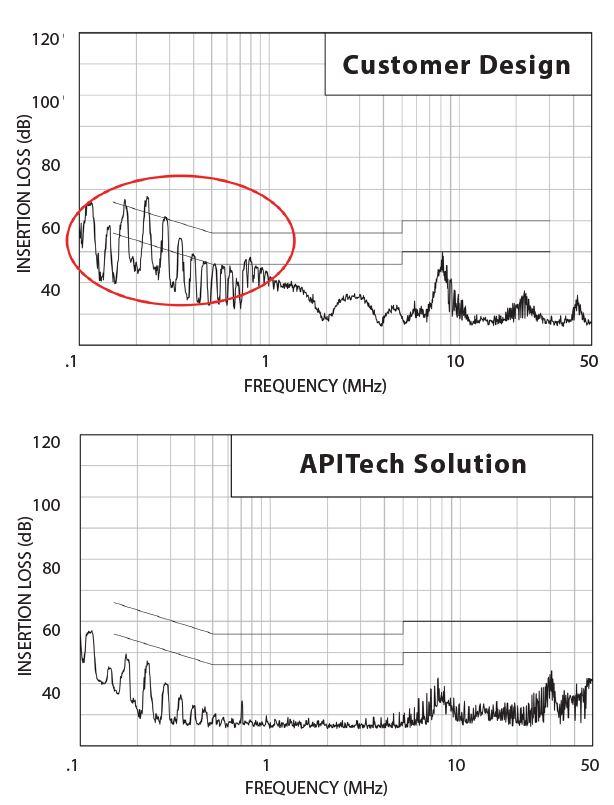

- Effectively conducted filtering from 10KHz to 1GHz
- Current ratings up to 10Amps
- Maximum voltage ratings of 400VDC and 240VAC standard, custom voltages available
- Meet EN 55011, EN 55022, and IEC/EN60601-1-2 requirements
- RoHS compliant
- Vertically integrated solutions include packaging, circular connectors, and filter plates
Shielding Filters
- Provides MRI/RF shielding solutions for medical, commercial, and government applications
- Offers 100 dB insertion loss per MIL-STD 220 from 14KHz to 10GHz
- Options available with or without discharge lights
- Custom configurations are available
Specifications Tested and Built Accordance to
- EN 55011
- EN 55022
